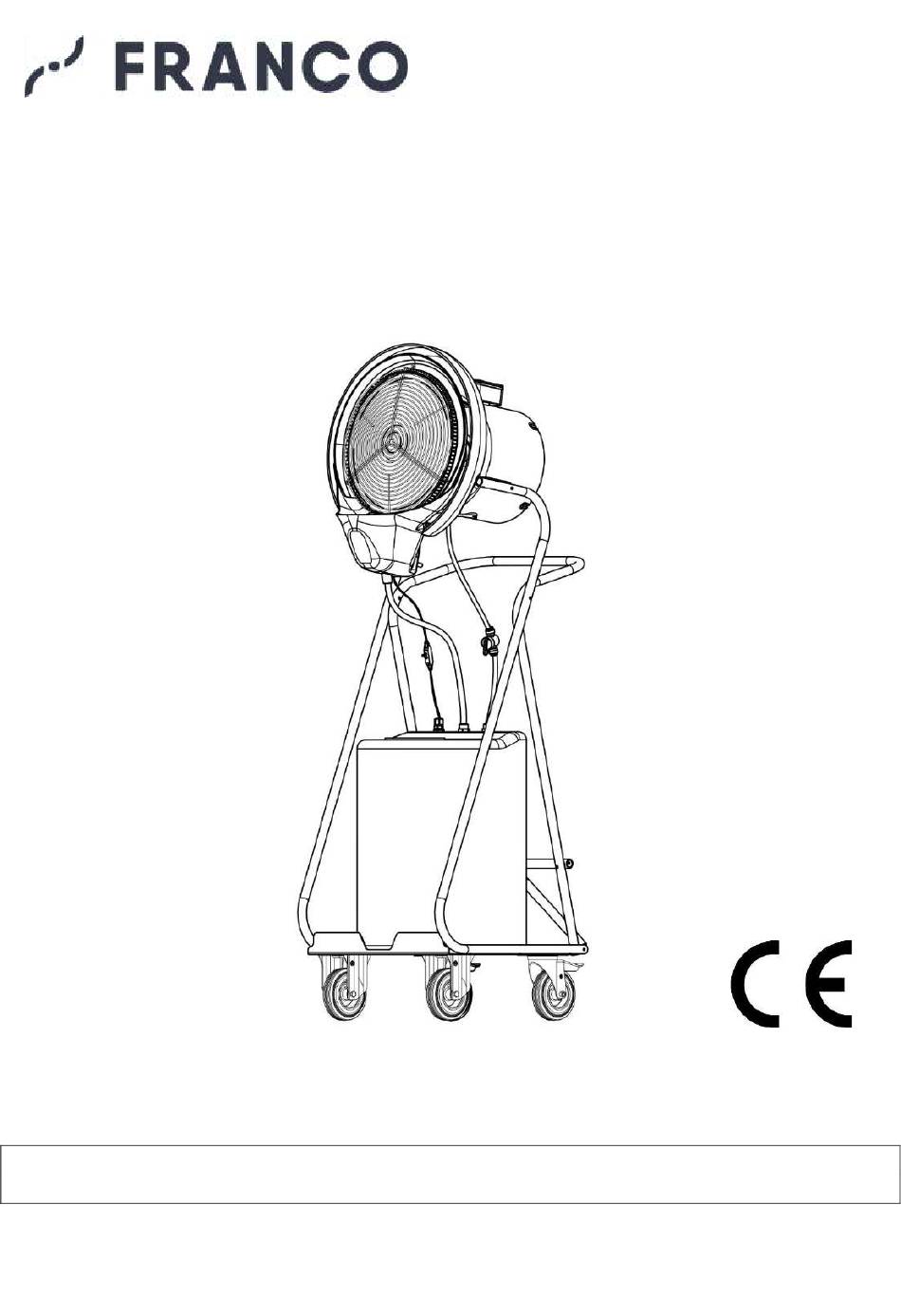

- Page 1 I N S T R U C T I O N S E N G L I S H Read this manual carefully before installing and operating the machine Rev. 00/2022 Franco s. r. l. - Via Nazionale, 80 - 12010 Cervasca (CN)
-
Page 2: Table Of Contents
Operation and Maintenance Manual - UCP Fly Mobile INDEX INDEX ............................2 1 - INTRODUCTION ......................... 3 1.1 General Safety Warnings ....................... 3 1.2 Guidelines for the correct disposal of the product ..............3 1.3 Conventions used in this manual .................... 3 1.4 Keeping and updating the instruction manual ................. -
Page 3: Introduction
This appliance must only be used for the function for which it was designed: 'Adiabatic humidifier/cooler'. Any other use is to be considered improper and dangerous. Franco s. r. l. cannot be held responsible for any damage resulting from improper, incorrect and unreasonable use or if the appliance is used in installations which do not comply with current safety regulations. -
Page 4: Keeping And Updating The Instruction Manual
Operation and Maintenance Manual - UCP Fly Mobile ABBREVIATIONS Cap. = Chapter Par. = Paragraph Page = Page Fig. = Figure Tab. = Table UNIT OF MEASUREMENT The units of measurement used are those of the International System (SI). 1.4 Keeping and updating the instruction manual The instruction manual must be kept with care and must accompany the machine in all changes of ownership that it may undergo during its life. -
Page 5: Pictograms
Operation and Maintenance Manual - UCP Fly Mobile The appliance may be used by persons with reduced physical, sensory or mental capabilities, or lack of experience or the necessary knowledge, provided that they are supervised or have received instructions concerning the safe use of the appliance and understanding of the dangers involved. - Page 6 Operation and Maintenance Manual - UCP Fly Mobile SAFETY PICTOGRAMS (ISO 7010) The pictograms contained in a triangle indicate DANGER. The pictograms contained in a circle impose a PROHIBITION/OBLIGATION. Pictogram Description Dangerous electrical voltage. Generic danger. Do not remove safety devices.
-
Page 7: Applications
The UCP Fly Mobile is mounted on a trolley with integrated water tank, which allows the machine to be easily moved within the room to be humidified or cooled according to the customer's needs, ensuring maximum versatility of use. -
Page 8: Description Of The Device
Operation and Maintenance Manual - UCP Fly Mobile 1.10 Description of the appliance Main parts of the unit (Fig. 1.10.1) Rear cover Fixed disk Nozzle Rotary disc On/Off switch Electric box Protection grid Electric motor Tub lid Protection grid Disc cap... -
Page 9: Transport And Handling
Do not dispose of packaging elements in the environment: they must be placed in suitable collection areas. The UCP Fly Mobile is a wheeled unit that can be moved on flat surfaces without the aid of lifting and transport equipment. -
Page 10: Ec Declaration Of Conformity
Operation and Maintenance Manual - UCP Fly Mobile 1.15 EC Declaration of Conformity THE MANUFACTURER FRANCO s.r.l. Company Via Nazionale, 80 12010 Address Postcode Province Cervasca Italy City State DECLARE under their own responsibility that the machine Humidifier / Cooler... -
Page 11: Installation
2.2 Positioning The UCP Fly Mobile humidifier must be placed on a flat, level surface in a horizontal position. When the machine is in the desired position, lock the two rear wheels using the brakes before starting it. ... -
Page 12: Electrical Connections
Operation and Maintenance Manual - UCP Fly Mobile 2.3 Electrical Connections • Ensure that the electrical installation to which the appliance is connected complies with the electrical safety regulations in force in the country of destination. • Ensure that the supply voltage characteristics comply with what is stated on the nameplate of the device. -
Page 13: Start-Up And Operation
The UCP Fly Mobile is capable of atomising up to a maximum of 25 l/h of water. An excessive water flow rate could cause an increase in droplet size and adversely affect the mist quality. -
Page 14: Maintenance
Operation and Maintenance Manual - UCP Fly Mobile 4 - MAINTENANCE The operations described in this chapter must only be carried out by authorised and qualified personnel, using suitable personal protective equipment. Before carrying out any work, disconnect the appliance from the mains and water supply. -
Page 15: Replacing The Rotating Disc
Operation and Maintenance Manual - UCP Fly Mobile The pump does not require any special maintenance. However, it is advisable to clean the internal rotating parts periodically, depending on the quality of the water used. For this purpose: • Disconnect and remove the pump from the tank as described above;... -
Page 16: Nozzle Replacement
Position the new nozzle by repeating the sequence in reverse. 4.7 Accessories A complete range of accessories that can be combined with your UCP Fly Mobile is available on request. Ask your supplier for the accessories catalogue for more details... -
Page 17: Technical Characteristics
Operation and Maintenance Manual - UCP Fly Mobile 5 - TECHNICAL CHARACTERISTICS 5.1 Technical data Atomisation capacity up to 25 Power supply single-phase IP rating IP55 Weight Air flow rate m³/h 1800 Fan/humidifier motor Power Voltage V/Hz 230/50 Current Pump motor... -
Page 18: Circuit Diagrams
Operation and Maintenance Manual - UCP Fly Mobile 5.3 Electric Diagram Ensure that the electrical supply voltage characteristics are in accordance with the specification table. Install a magnetothermal differential circuit breaker in the power supply circuit upstream of the equipment. -
Page 19: Spare Parts List
Operation and Maintenance Manual - UCP Fly Mobile 6. SPARE PARTS LIST... - Page 20 Operation and Maintenance Manual - UCP Fly Mobile...
-
Page 21: Problem-Solving Guide
Operation and Maintenance Manual - UCP Fly Mobile 7. TROUBLESHOOTING GUIDE The operations described in this chapter must only be carried out by authorised and qualified personnel, using suitable personal protective equipment. Before carrying out any work, disconnect the appliance from the mains and water supply. - Page 22 Operation and Maintenance Manual - UCP Fly Mobile...
- Page 23 Operation and Maintenance Manual - UCP Fly Mobile...
- Page 24 Operation and Maintenance Manual - UCP Fly Mobile FRANCO s.r.l Headquarters and Factory: Via Nazionale n.80 - 12010 - CERVASCA (CUNEO) Italy Tel. (+39) 0171 611663 www.francosrl.com info@francosrl.com For reports or requests, please contact us at support@francosrl.com...
