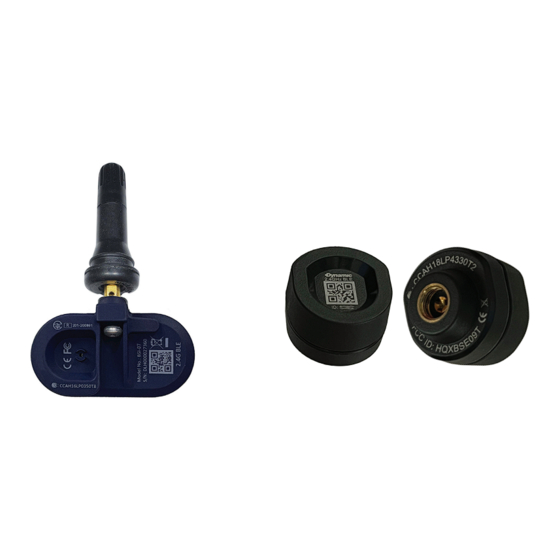

- Page 1 BLE TPMS Sensor User Guide Bluetooth Low Energy (BLE) Tire Pressure Monitoring System (TPMS) Internal External DY-BLE-I DY-BLE-E 151 Snyder Ave. Barberton, OH 44203 REV: 2/2023...
-
Page 2: Product Introduction
Product Introduction Tire condition is critical for the safety of riders and drivers. The Dynamic BLE TPMS monitors pressure and temperature of vehicle tires with Internal or External OEM-grade, Low Energy Bluetooth Sensors (BLE). Users can then find this tire pressure information in the free App for iOS or Android devices including push notifications for low tire pressure and varying temperature. -
Page 3: App Download And Installation
The BLE TPMS system supports both iOS & Android operating systems (Bluetooth 4.0 required). How to Download Search in the Apple App Store or Google Play Store for Dynamic BLE TPMS. After installation, enable Bluetooth. Open the App. A pop up will display Bluetooth Service Disabled or Location Services Disabled. - Page 4 Settings & Add Device Quick Start...
-
Page 5: Quick Start
Quick Start Click on the icon of what your TPMS Sensors will go on. NOTE: The app can support up to 36 wheels at a time. Click Settings. - Page 6 Sensor Settings: There are three ways to pair the sensors to the App. QR code, Manual, and Deflation. We strongly recommend using the QR learning option. NOTE: Deflation set up is not applicable for external sensors; only internal. QR Learning Select the wheel location to pair the sensors.
- Page 7 QR Learning The app will open the camera and scan the QR code. NOTE: This is the same for both external and internal sensors.
- Page 8 QR Learning The ID of the sensor will show in the location field. Select the next wheel location and continue until you pair all sensors. NOTE: This is the same for both external and internal sensors. Manual Learning Enter the ID of the sensor.
- Page 9 Manual Learning The ID of the sensor will show in the location field. Select the next wheel location and continue until you pair all sensors. NOTE: This is the same for both external and internal sensors. Deflation Learning 1. Choose tire and deflate the tire pressure.
- Page 10 System Settings & Warnings OVERALL SETTINGS Monitored Valve Settings Set up the ID of the sensor in the location field. Select the next wheel location and continue until you pair all sensors. NOTE: This is the same for both external and internal sensors. Monitored valve settings Temperature Unit settings: F or C Pressure unit settings: kPa, psi, Bar,...
- Page 11 System Settings & Warnings Pressure, Temperature and Voice Warnings Any abnormal tire activity will turn red, show a warning symbol and activate an audible alarm. You can press mute and turn off the audible voice reminder if needed.
-
Page 12: Repeater Setup
Repeater Setup The Repeater amplifies the overall signal distance up to 30 feet (10 meters) for longer trainers or when dealing with metal interference. The Repeater utilizes 12 volt power and contains no batteries. Connect the red wire to Positive and the black wire to Negative 12 volt DC power from your hauling vehicle.
