4. Status LEDs
LED
State
Indication
A valid network connection established.
Steady
LINK/ACT
LINK stands for LINK.
Transmitting or receiving data.
Flashing
ACT stands for ACTIVITY.
Steady
The port is transferring at 100Mbps.
100
Off
The port is transferring at 10Mbps if this LED
is dark.
5. Power Consumption
Depending on the usage of the switch and the supply voltage,
power consumption differs from 7mA to 70mA.
Please see table below.
State
Current @24V
Current @12V
power up
20mA
41mA
idle
7mA
16mA
1 port connected
14mA
29mA
2 ports connected
19mA
39mA
3 ports connected
24mA
51mA
4 ports connected
28mA
60mA
5 ports connected
35mA
70mA

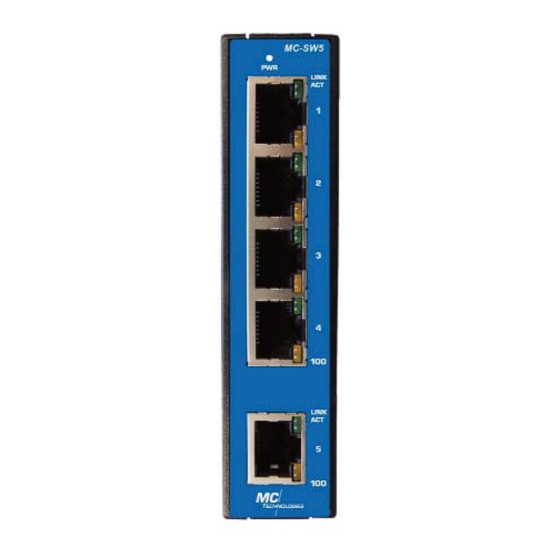

Frontview
MC Technologies GmbH ‐ Kabelkamp 2 ‐ D‐30179 Hannover
Telefon +49 511 67 69 99 ‐ 0 ‐ Fax +49 511 67 69 99 150
www.mc‐technologies.net ‐ www.mct‐shop.net
sales@mc‐technologies.net
Quick Guide
MC SW5
Industrial Switch
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for MC Technologies MC SW5
- Page 1 28mA 60mA MC SW5 5 ports connected 35mA 70mA MC Technologies GmbH ‐ Kabelkamp 2 ‐ D‐30179 Hannover Industrial Switch Telefon +49 511 67 69 99 ‐ 0 ‐ Fax +49 511 67 69 99 150 www.mc‐technologies.net ‐ www.mct‐shop.net sales@mc‐technologies.net...
- Page 2 • Startup: Connect the supply voltage to start up the device via type. the terminal block. The MC SW5 is an Industrial Ethernet switch with 5 Ethernet ports • 100Base‐BX: WDM Multi mode or Single mode SC type. and Auto‐negotiation 10/100 Mbps.
