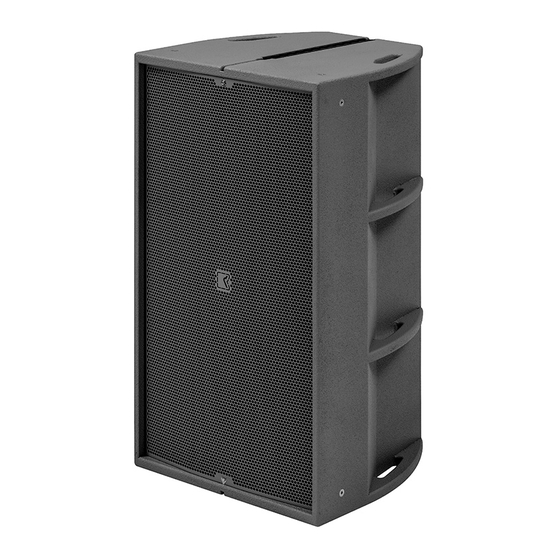

Full-range self-powered portable loudspeaker
Hide thumbs

Advertisement

Quick Links

Download this manual
MONACO 215CX SP
Full-range self-powered portable loudspeaker
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the MONACO 215CX SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Outline MONACO 215CX SP

Summary of Contents for Outline MONACO 215CX SP

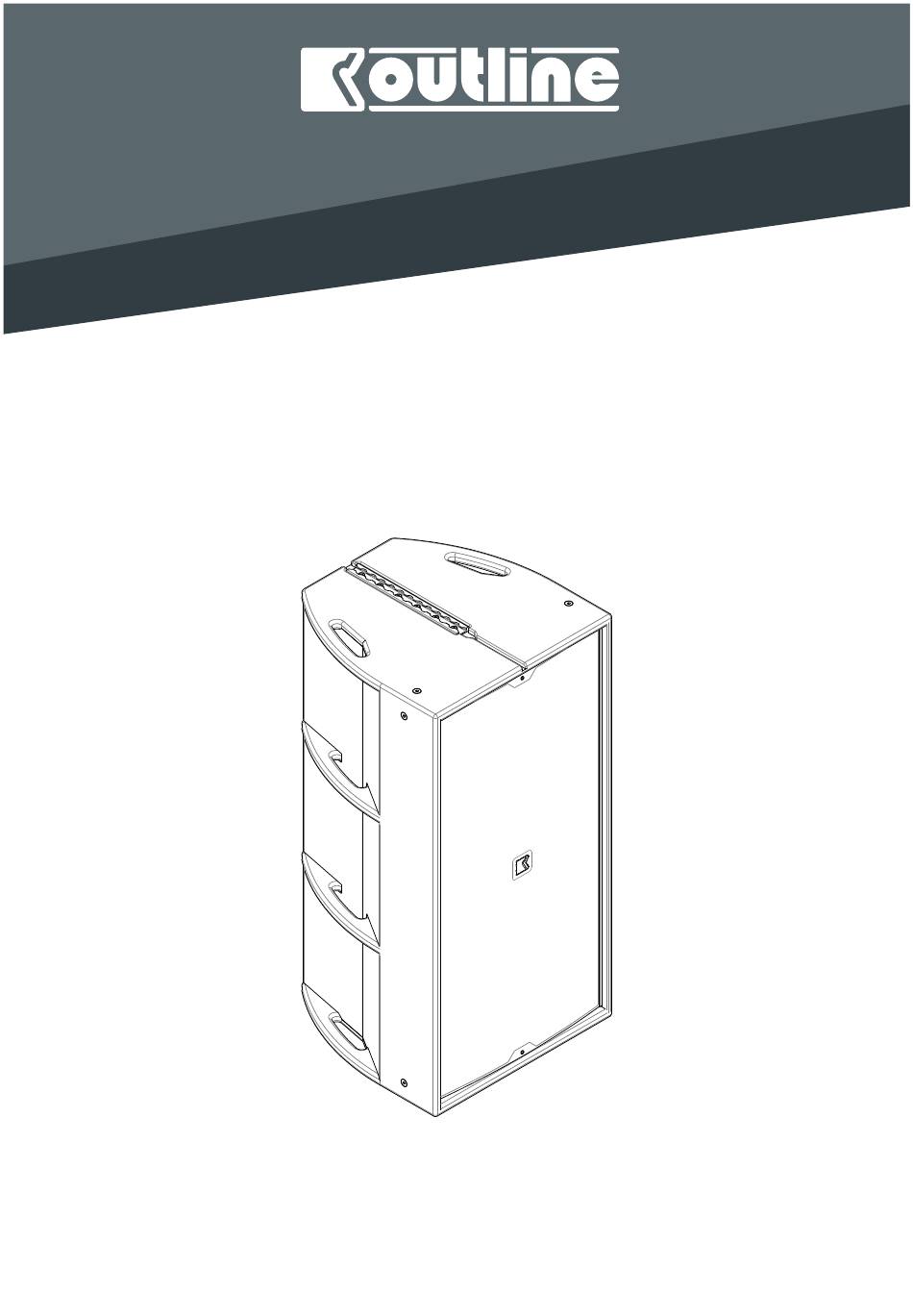

  • Page 1 MONACO 215CX SP Full-range self-powered portable loudspeaker USER MANUAL...

  • Page 2: Safety Regulations

    (screws, connecting pins, welded points, rigging bars) lation, ensure that all personnel involved in the in- must be inspected before every use. Outline strongly stallation are equipped with personal safety devices recommends to carefully inspect the system compo- •...

  • Page 3: Description Of The System

    DESCRIPTION OF THE SYSTEM As for all Outline products, every single component ing and filter, and another low-pass section (tuned at of the cabinet, its structure and dimensions are the a lower frequency) for the deep-low bass-reflex-load- result of accurate choices made basing on specific ed 15”...
  • Page 4 It is enough to provide an analogue input signal and the required power supply for the system to be ready to use. Analog signal AC into amplifier OUTLINE S.R.L. Tel. +39 030.3581341 www.outline.it Via Leonardo da Vinci, 56 Fax +39 030.3580431 25020 Flero (Brescia) Italy info@outline.it...
  • Page 5 It is possible to control the integrated DSP of the amplifier via a USB cable. USB type B connector is located on the rear panel of the amplifier. USB type B OUTLINE S.R.L. Tel. +39 030.3581341 www.outline.it Via Leonardo da Vinci, 56 Fax +39 030.3580431...
  • Page 6 SELECT PRESENCE USB input type B: USB port dedicated to DSP control through PC and Armonía Plus software. PRESETS Outline has made available four presets that are • FLAT, for a linear response; potentially useful in any situation. • BASS BOOST, for an emphasis of low freq.;...
  • Page 7 RIGGING Each Monaco 215CX SP element requires one or vibrations, winds and mounting procedures. The rig- more external rigging structures to support each sin- ging system shall allow also safe mounting and dis- gle element by its rail and the total weight of the clus- mounting operations and easy visual control.

  • Page 8: Overall Dimensions

    #3 M8 FIXING POINT #2 M8 FIXING POINT FRONT VIEW REAR VIEW SIDE VIEW #2 M8 FIXING POINT #2 M8 FIXING POINT (both sides) OUTLINE S.R.L. Tel. +39 030.3581341 www.outline.it Via Leonardo da Vinci, 56 Fax +39 030.3580431 25020 Flero (Brescia) Italy info@outline.it...

  • Page 9: Technical Specifications

    940 mm - 37” Height 480 mm - 18 7/8” Width 480 mm - 18 7/8” Depth 42 Kg - 92.6 lb Weight OUTLINE S.R.L. Tel. +39 030.3581341 www.outline.it Via Leonardo da Vinci, 56 Fax +39 030.3580431 25020 Flero (Brescia) Italy info@outline.it...
  • Page 10 Date Transducers Impedance Amplifier Loudspeaker cabinet Loudspeaker grills Grills screws Hardware Hardware bolts Main rigging structure Safety devices Additional notes Signature OUTLINE S.R.L. Tel. +39 030.3581341 www.outline.it Via Leonardo da Vinci, 56 Fax +39 030.3580431 25020 Flero (Brescia) Italy info@outline.it...
  • Page 11 NOTES OUTLINE S.R.L. Tel. +39 030.3581341 www.outline.it Via Leonardo da Vinci, 56 Fax +39 030.3580431 25020 Flero (Brescia) Italy info@outline.it...
  • Page 12 For this reason, any current Outline product may differ in some aspect from its description, but will always equal or exceed the original design specifications unless otherwise stated.
