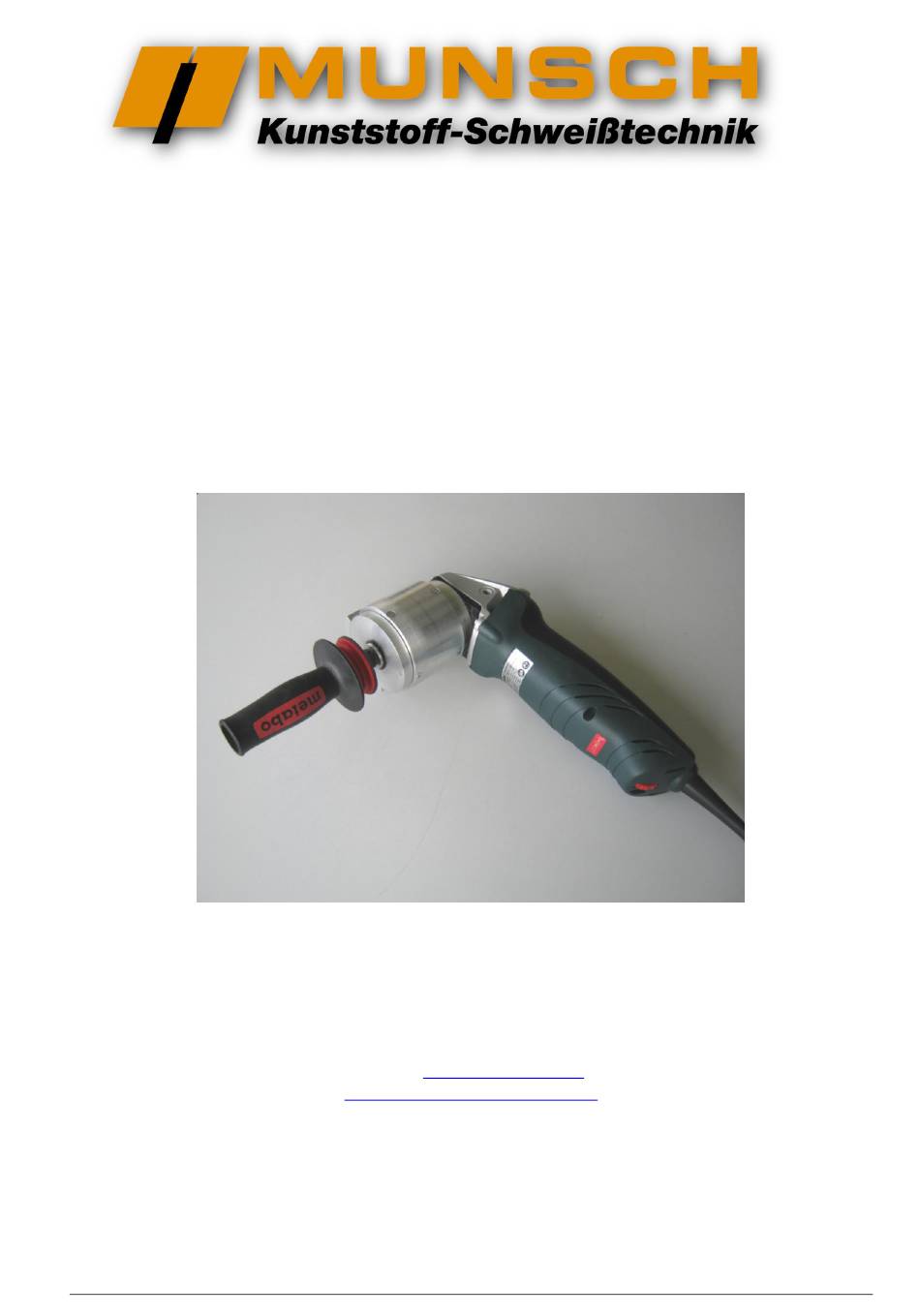

Weld trimmer
Code:
K01405B
Betriebsanleitung
Operating instructions
MUNSCH Kunststoff-Schweißtechnik GmbH
Im Staudchen • D-56235 Ransbach-Baumbach
Phone: +49 (0) 2623 898-80
Fax: +49 (0) 2623 898-85
E-Mail:
info-kst@munsch.de
http://www.munschwelding.com
Firmensitz/Registered Office: Im Staudchen, D-56235 Ransbach-Baumbach
Registergericht/Registration Court: Amtsgericht Montabaur, HRB 3959
Geschäftsführer/Managing Director: Stefan Munsch
Page 1/16
Ausgabe 08.2013/Rev.00
MUNSCH Kunststoff-Schweißtechnik GmbH
Advertisement
Table of Contents
Summary of Contents for Munsch K01405B
- Page 1 Im Staudchen • D-56235 Ransbach-Baumbach Phone: +49 (0) 2623 898-80 Fax: +49 (0) 2623 898-85 E-Mail: info-kst@munsch.de http://www.munschwelding.com Firmensitz/Registered Office: Im Staudchen, D-56235 Ransbach-Baumbach Registergericht/Registration Court: Amtsgericht Montabaur, HRB 3959 Geschäftsführer/Managing Director: Stefan Munsch Page 1/16 Ausgabe 08.2013/Rev.00 MUNSCH Kunststoff-Schweißtechnik GmbH...
-
Page 2: Table Of Contents
Fault finding ............................13 Fault finding ............................13 Transport / Storage ..........................14 Safety instructions ..........................14 Storage conditions ..........................14 Transport to MUNSCH ........................14 Conservation ............................14 Parts list ..............................16 MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 08.2013/Rev.00 Page 2/16... - Page 3 EG-Maschinenrichtlinie 2006/42/EG Anhang II, Nr. 1 A Declaration of Conformity by the Manufacturer as defined by machinery directive 2006/42/EC, Annex II, No. 1 A MUNSCH Kunststoff-Schweißtechnik GmbH Im Staudchen D-56235 Ransbach-Baumbach hereby declares on its own behalf and responsibility that the weld trimmer unit to which this...
-
Page 4: Foreword
Safety symbol according to DIN 4844-W8 gCautiong Danger for functions Use of special tools Instructions attached to the Weld trimmer such as, e.g., warning plate rating plate must be observed and must always be clearly visible. MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 08.2013/Rev.00 Page 4/16... -
Page 5: Hazards Resulting From Non-Observance Of The Safety Instructions
Failure of specified methods for care and maintenance Personal hazard due to electrical and mechanical influences. MUNSCH Kunststoff-Schweißtechnik GmbH strives to keep not only its products but also the relevant documentation up to date and to describe these as clearly as possible for the user. -
Page 6: Safety
Weld trimmer immediately and report the malfunctions to the authority/person responsible. Do not undertake any changes on, add to or reconvert the Weld trimmer which could impair safety, without permission from the supplier. MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 08.2013/Rev.00 Page 6/16... -
Page 7: Personnel Selection And Qualification
During operation objects may not get near the opening of the Weld trimmer, because this can lead to danger for human being and machine. Page 7/16 Ausgabe 08.2013/Rev.00 MUNSCH Kunststoff-Schweißtechnik GmbH... -
Page 8: Taking A Break / End Of Work
Plug off the mains, to avoid an unintentional commissioning. Devices usable in different locations Reassemble the parts which had to be dismantled for transport purposes and secure before continuing operation. When putting into operation again, proceed according to the instruction handbook. MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 08.2013/Rev.00 Page 8/16... -
Page 9: Accessories/Replacement Parts
Accessories/Replacement parts Only those products approved by MUNSCH may be used as spare-parts. The manufacturer is not liable for any damages which arise from using products and accessories not approved. Conversion or change of the Weld trimmer is only permitted after consultation with the manufacturer. -
Page 10: Commissioning / De-Commissioning
Traction occurs against working direction during operation. Milling direction Please put the Weld trimmer only on the weld seam, if the machine is switched on. MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 08.2013/Rev.00 Page 10/16... - Page 11 The machine is switched off, when pressing on the back part of the fast releasing device’s on/off switch. After switching off, the machine is running 5 seconds further. Do not leave the Weld trimmer unattended. Transport / Storage Observe the chapter transport and storage. Page 11/16 Ausgabe 08.2013/Rev.00 MUNSCH Kunststoff-Schweißtechnik GmbH...
-
Page 12: Maintenance
Also check the other knives. All four cutter knives have to be replaced at all times. Fasten the new / turned knives. Fitting position of Close the cutter head’s safety cover. the knives MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 08.2013/Rev.00 Page 12/16... -
Page 13: Regular Maintenance
The following table contains malfunctions which may occur on the Weld trimmer and information on the possible causes and how to remove them (Fault diagnosis table). If malfunctions occur which are not mentioned here or if the malfunctions do not lead back to the cause specified, please contact MUNSCH Kunststoff-Schweißtechnik GmbH. Malfunction Error no. -
Page 14: Transport / Storage
Store it in a dry place. Transport to MUNSCH If it is necessary to send the Weld trimmer to MUNSCH Kunststoff-Schweißtechnik GmbH use the original packing. Please include a description of the fault, to make possible a quick fault cause finding. - Page 15 Mounting Is the casing basement mounted the distance dimension 4,5 ± 0,2 has to be controlled with a depth gauge. As a help for mounting use 2 Hexagon socket head cap screws M5x40. Page 15/16 Ausgabe 08.2013/Rev.00 MUNSCH Kunststoff-Schweißtechnik GmbH...
-
Page 16: Parts List
Parts list MUNSCH Kunststoff-Schweißtechnik GmbH Ausgabe 08.2013/Rev.00 Page 16/16...
