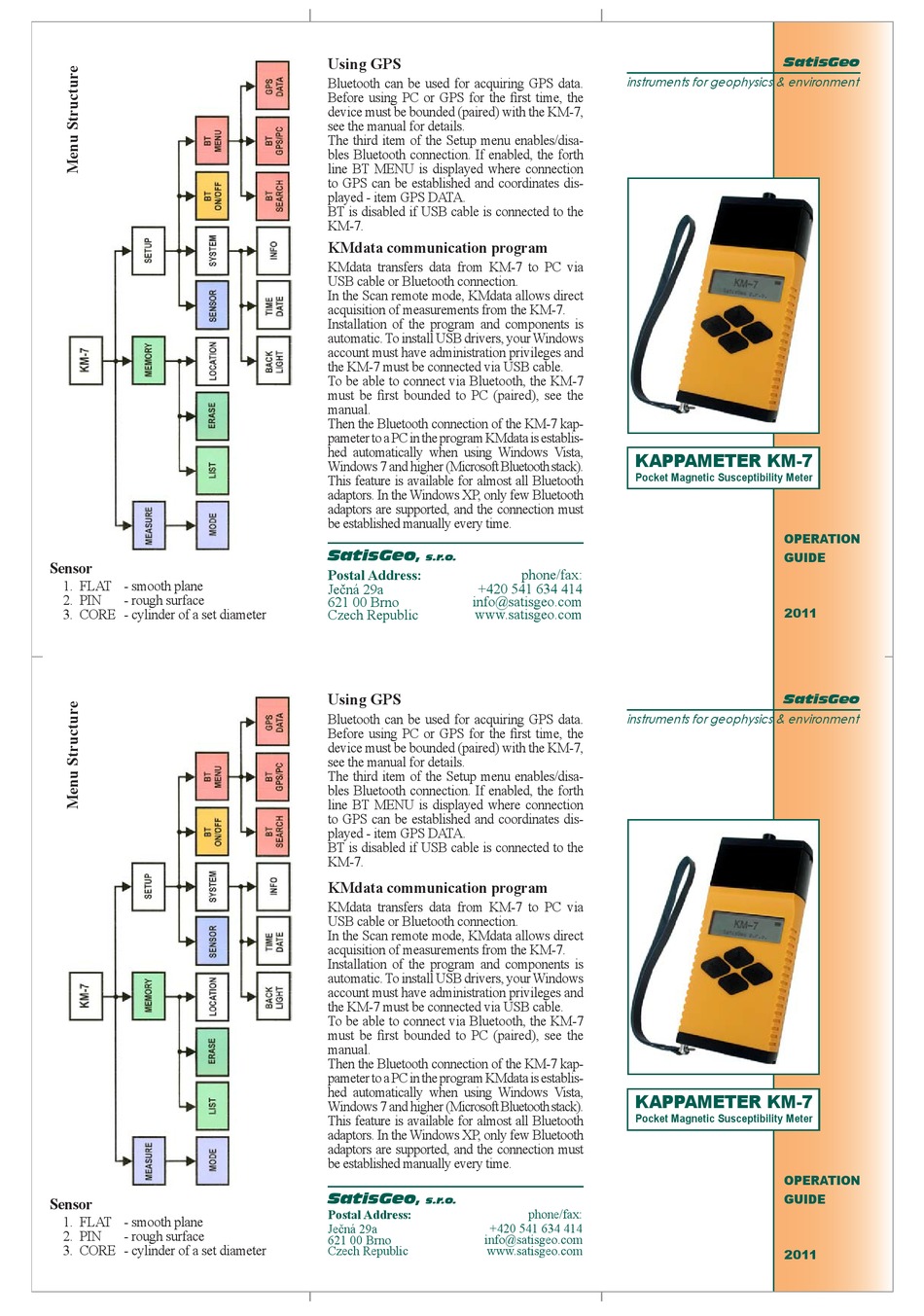

SatisGeo KAPPAMETER KM-7 Operation Manual

Sensor
1. FLAT - smooth plane
2. PIN - rough surface
3. CORE - cylinder of a set diameter
Sensor
1. FLAT - smooth plane
2. PIN - rough surface
3. CORE - cylinder of a set diameter

Using GPS

Bluetooth can be used for acquiring GPS data.
Before using PC or GPS for the first time, the
device must be bounded (paired) with the KM-7,
see the manual for details.
The third item of the Setup menu enables/disa-
bles Bluetooth connection. If enabled, the forth
line BT MENU is displayed where connection
to GPS can be established and coordinates dis-
played - item GPS DATA.
BT is disabled if USB cable is connected to the
KM-7.
KMdata communication program
KMdata transfers data from KM-7 to PC via
USB cable or Bluetooth connection.
In the Scan remote mode, KMdata allows direct
acquisition of measurements from the KM-7.
Installation of the program and components is
automatic. To install USB drivers, your Windows
account must have administration privileges and
the KM-7 must be connected via USB cable.
To be able to connect via Bluetooth, the KM-7
must be first bounded to PC (paired), see the
manual.
Then the Bluetooth connection of the KM-7 kap-
pameter to a PC in the program KMdata is establis-
hed automatically when using Windows Vista,
Windows 7 and higher (Microsoft Bluetooth stack).
This feature is available for almost all Bluetooth
adaptors. In the Windows XP, only few Bluetooth
adaptors are supported, and the connection must
be established manually every time.
SatisGeo,
s.r.o.
Postal Address:
Ječná 29a +420 541 634 414
621 00 Brno info@satisgeo.com
Czech Republic www.satisgeo.com
Using GPS
Bluetooth can be used for acquiring GPS data.
Before using PC or GPS for the first time, the
device must be bounded (paired) with the KM-7,
see the manual for details.
The third item of the Setup menu enables/disa-
bles Bluetooth connection. If enabled, the forth
line BT MENU is displayed where connection
to GPS can be established and coordinates dis-
played - item GPS DATA.
BT is disabled if USB cable is connected to the
KM-7.
KMdata communication program
KMdata transfers data from KM-7 to PC via
USB cable or Bluetooth connection.
In the Scan remote mode, KMdata allows direct
acquisition of measurements from the KM-7.
Installation of the program and components is
automatic. To install USB drivers, your Windows
account must have administration privileges and
the KM-7 must be connected via USB cable.
To be able to connect via Bluetooth, the KM-7
must be first bounded to PC (paired), see the
manual.
Then the Bluetooth connection of the KM-7 kap-
pameter to a PC in the program KMdata is establis-
hed automatically when using Windows Vista,
Windows 7 and higher (Microsoft Bluetooth stack).
This feature is available for almost all Bluetooth
adaptors. In the Windows XP, only few Bluetooth
adaptors are supported, and the connection must
be established manually every time.
SatisGeo,
s.r.o.
Postal Address:
Ječná 29a +420 541 634 414
info@satisgeo.com
621 00 Brno
Czech Republic www.satisgeo.com
instruments for geophysics & environment
Kappameter Km-7
Pocket Magnetic Susceptibility Meter
phone/fax:
instruments for geophysics & environment
KAPPAMETER KM-7
Pocket Magnetic Susceptibility Meter
phone/fax:
SatisGeo
OPERATION
GUIDE
2011
SatisGeo
OPERATION
GUIDE
2011
