Summary of Contents for KERONG KR-S80-A

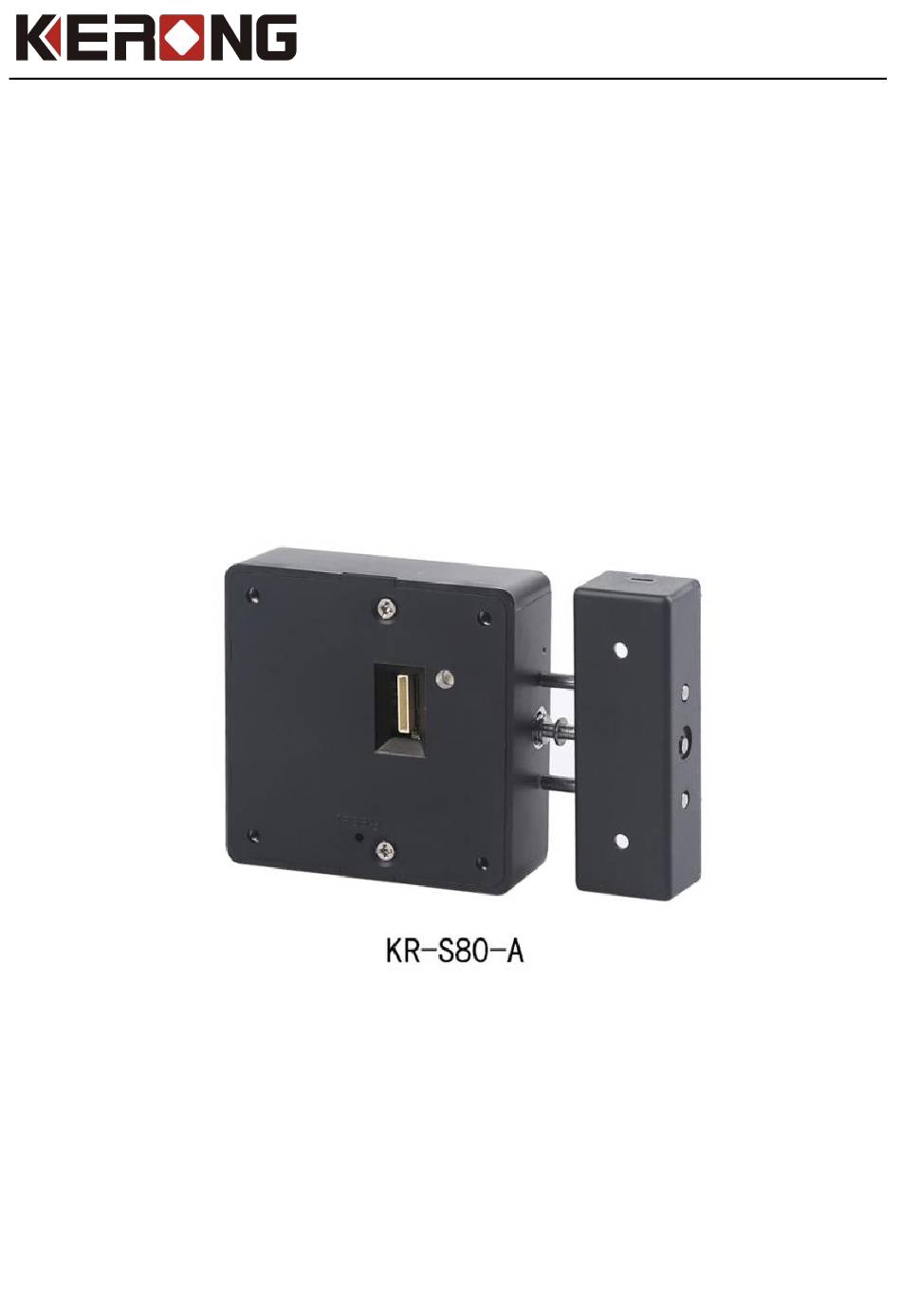

  • Page 1 Technology Change Life User manual...
  • Page 2 Technology Change Life Preface Dear Customers: Thanks for choosing card cabinet lock offered by Kerong Industry (HK) Co ., Limited . Please read this 《 User Manual 》 carefully before using. Thanks for your kind understanding and support!

  • Page 3: Table Of Contents

    Technology Change Life Contents 1. Product............................1 2. Product Appearance.......................2 2.1 Lock body...........................2 2.2 Lock hook...........................2 2.3 Card............................2 2.4 Screws..........................2 2.5 External power supply......................3 3. Product Installation Dimensions...................4 4. Installation Drawings......................6 5. Product Functions........................7 5.1 Functions & Features......................7 5.2 Parameters..........................7 6. Operations..........................9 6.1 Public Mode........................9 6.1.1 Mode introduction......................9 6.1.2 Set lock into public mode....................10...
  • Page 4 Technology Change Life 1. Relative Products - 1 -...

  • Page 5: Product Appearance

    Technology Change Life 2. Product Appearance 2.1 Lock body Material: ABS Size: 80*80*27mm 2.2 Lock hook Different hook types suit for various application Hook A suits for both vertical and horizontal installation Hook D and Hook E suit for horizontal installation 2.3 Card Different shapes of cards available: wrist band, tag fob, rectangle card and so on.

  • Page 6: Product Installation Dimensions

    Technology Change Life 3. Product Installation Dimension Lock body Hook A - 3 -...
  • Page 7 Technology Change Life Hook E Hook - 4 -...

  • Page 8: Installation Drawings

    Technology Change Life 4.Installation Drawing - 5 -...

  • Page 9: Product Functions

    Technology Change Life 5. Product Functions 5.1 Parameters ABS for lock body shell, Acrylic & PC for panel Material Static power consumption <100uA Power consumption dynamic power consumption<200mA DC6V(4*AAA 1.5V) Working voltage Batteries can standby for around 1 year Working temperature -15℃ ~ +65℃ Working environment Working humidity 10% ~ 90%RH Air static 15KV...
  • Page 10 Technology Change Life 2. When voltage is less than 4V, lock can’t be locked until change new batteries. 3. Lock can work normally 1000 times after low voltage warning Lock status alarm: 1. Lock will keep warning for 10s if it keeps unlocking status more than 30s.

  • Page 11: Operations

    Technology Change Life 4. Function cards can be encrypted. Only these encrypted function cards can set the lock. 5. Users can use their own cards that are compatible with our lock, but function cards only can be Mifare 1 card. 6.

  • Page 12: Set Lock Into Public Mode

    Technology Change Life 6.1.2 Set lock into public mode 6.1.3 Set manager card Notice: 1. While green light is flashing, user can set manager card continuously. One lock can have max 10pcs manager cards. 2. Manager card can be used for emergency unlock in public mode. 6.1.4 Set user card ※...

  • Page 13: Private Mode

    Technology Change Life Notice: 1. While green light is flashing, user can set delete card continuously. One lock can have max 10pcs delete cards. 2. Swipe the delete card, all user cards will be invalid, then need to set again. 3.

  • Page 14: Set Lock Into Private Mode

    Technology Change Life 6.2.2 Set lock into private mode 6.2.3 Set manager card Notice: 1. While green light is flashing, user can set manager card continuously. One lock can have max 10pcs manager cards. 2. Manager card cannot use for emergency unlock, just for setting user card. 6.2.4 Set user card Notice: 1.

  • Page 15: Limited Public Mode

    Technology Change Life Notice: 1. While green light is flashing, user can set delete card continuously. One lock can have max 10pcs delete cards. 2. Swipe the delete card, all user cards will be invalid, then need to set again. 3.

  • Page 16: Set Lock Into Limited Public Mode

    Technology Change Life 6.3.2 Set lock into limited public mode 6.3.3 Set manager card Notice: 1. While green light is flashing, user can set manager card continuously. One lock can have max 10pcs manager cards. 2. Manager card cannot be used for emergency unlock, just for setting user card. 6.3.4 Set user card Notice: 1.

  • Page 17: Set Delete Card

    Technology Change Life 6.3.6 Set delete card Notice: 1. While green light is flashing, user can set delete card continuously. One lock can have max 10pcs delete cards. 2. Swipe the delete card, all user cards will be invalid, then need to set again. 3.
  • Page 18 Technology Change Life Technology Change Life KERONG INDUSTRY (HK) CO., LIMITED ADD: 2nd Floor, Tonghe Industry Park, Fuping North Rd Pingdi Street, Longgang District, Shenzhen, Guangdong, China Tel: 0755-28396063 Fax: +86-755-83117533 Website: www.kerong.hk http://szkerong.en.alibaba.com/ Email：kr30@kerong.hk - 15 -...
