Summary of Contents for Schäfer iQdata Backcooler

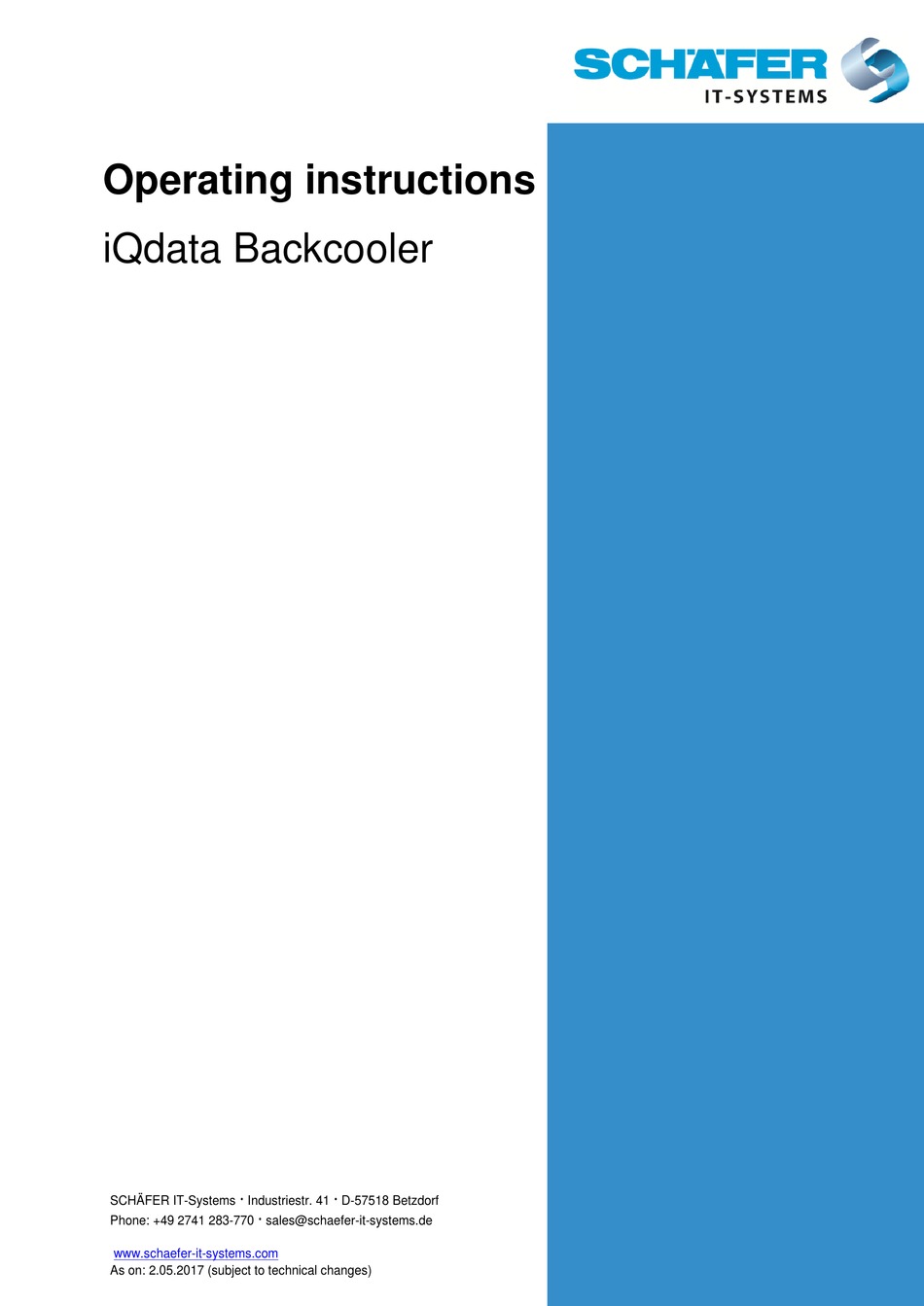

- Page 1 Operating instructions iQdata Backcooler SCHÄFER IT-Systems Industriestr. 41 D-57518 Betzdorf Phone: +49 2741 283-770 sales@schaefer-it-systems.de www.schaefer-it-systems.com As on: 2.05.2017 (subject to technical changes)
-
Page 2: Table Of Contents
User Manual iQdata Backcooler Table of contents Table of contents ..............................1 Safety .................................. 3 General description ............................3 Operational safety warning symbols ......................3 Safety code ..............................4 General safety instructions ..........................6 Technical data ..............................7 Proper use ..............................7 General data .............................. - Page 3 User Manual iQdata Backcooler CAUTION These operating instructions must be read thoroughly beforehand and followed while installing and operating the cooling unit. Retain these instructions for the entire usable life of the device. These instructions correspond to the state of technology at the time of introduction of the product into the market.
-
Page 4: Safety
User Manual iQdata Backcooler Safety General description The Backcooler is a high-performance cooling unit for cooling IT components, without additional fans. Particularly energy-efficient cooling is possible because of the low, air-side pressure drop. The heat is dissipated in the immediate vicinity of the origin, so that the room is not subject to thermal load. -
Page 5: Safety Code
User Manual iQdata Backcooler Safety code The customer must retain this instruction manual and provide it to the respective personnel for installation, set up, use and maintenance. DANGER Dangerous situation is present and, if the measures are not followed, can lead to serious injuries and even death. - Page 6 User Manual iQdata Backcooler Danger of operational- & failure safety CAUTION Work performed on the device by unqualified personnel, e.g. cleaning, maintenance or repair, can endanger the operational safety of the device. To ensure a long life of the device, the device must be regularly cleaned and serviced by qualified personnel.
-
Page 7: General Safety Instructions
User Manual iQdata Backcooler Before starting any work on the interior of the device, disconnect it from the power supply and switch it off, and ensure that the device cannot be switched on accidentally. Only trained specialists should work on this system. -
Page 8: Technical Data
User Manual iQdata Backcooler Technical data Proper use The Back Cooler is an air/water heat exchanger and is mounted directly on the rear of the IS-1 cabinet. Particularly high energy efficiency is achieved by eliminating the fans. A special adapter frame can be used to mount on the server racks by other manufacturers. - Page 9 User Manual iQdata Backcooler Article number Height Width Door hinge Pipe module Article number 2000 7035 on right side from below 2000 9005 on right side from below 2000 7035 on left side from below 2000 9005 on left side...
-
Page 10: Water Quality Requirements
Backcooler Dimensioned drawings (view from below) Water quality requirements For safe functioning of the iQdata Backcooler, the cooling water must be present in a certain water quantity, temperature and pressure. Adhere to water quality as per VGB-R 455 P . - Page 11 User Manual iQdata Backcooler Hydrological data 6 – 9 pH values < 20 mg/l Free carbon dioxide < 100 mg/l Nitrates < 50 mg/l Sulphates not demonstrable Sulphides < 800 mg/l Chlorides (at 25°C) < 2 mg/l Ammonia Iron < 1.5...
-
Page 12: Description
User Manual iQdata Backcooler Description General information The Backcooler is mounted directly on the rear side of the IS-1 cabinet, preventing warm server exhaust air from entering the server room installation room. The thermal energy from the IT components is taken up by the Backcooler without any additional fans and is conveyed to the re-cooling system by means of the cold water contained in it. - Page 13 User Manual iQdata Backcooler Rack Backcooler air separator can be repositioned View from above 12 of 23 SCHÄFER IT-Systems Industriestr. 41 D-57518 Betzdorf Phone: +49 (0) 2741/283-770 sales@schaefer-it-systems.de www.schaefer-it-systems.de As on: 2.05.2017 (subject to technical changes)
-
Page 14: Appositioning The Cabinets Together
User Manual iQdata Backcooler Appositioning the cabinets together For appositioning the server cabinets, dismantle the sheet covering in the pipe module section. The appositioning is done at the same connection points as for fastening the side panels After the server cabinets are appositioned, re-install the sheet covering. -
Page 15: Connection To The Cold Water Network
User Manual iQdata Backcooler Connection to the cold water network Floor section, right door hinge Installation of pipes (Flexible hose) to the raised floor The connection from the Backcooler is done via flexible hoses, flat sealing 1" AG (DN 25). -
Page 16: Filling The Backcooler With Cold Water
User Manual iQdata Backcooler Filling the Backcooler with cold water The Backcooler is filled with cold water via the building network. For ventilating the heat exchanger, there is a vent valve (Schrader valve) above the door, which must be opened while filling to let the air escape from the cooling system. -
Page 17: Air Separation Of Hot Areas / Cold Area
User Manual iQdata Backcooler Air separation of hot areas / cold area For adjusting the air separation to the respective IT components, this can be moved. The sealing is done with special brush strips, which guarantee high airtightness. Thereby, the hot section in the rack can be kept particularly small and the heat emission in the room is reduced to a minimum. - Page 18 User Manual iQdata Backcooler Adjusting the air separation Loosen joints at the top and bottom on both sides; after that, the air separation can be shifted. Air pass partition plates To prevent air-side short circuits, special blank plates, height 1 HE, have been developed, which are arranged between the IT components.
-
Page 19: Airflow Rectifier / Filter
User Manual iQdata Backcooler Airflow rectifier / Filter The Backcooler is equipped with 2 units rectifiers, which simultaneously function as a filter, filter class G3 according to DIN EN 779. The rectifier (filter) has an average separation efficiency of 90%. -
Page 20: Performance Charts
User Manual iQdata Backcooler Performance charts 19 of 23 SCHÄFER IT-Systems Industriestr. 41 D-57518 Betzdorf Phone: +49 (0) 2741/283-770 sales@schaefer-it-systems.de www.schaefer-it-systems.de As on: 2.05.2017 (subject to technical changes) -
Page 21: Connection Variants To The Cooling System
User Manual iQdata Backcooler Connection variants to the cooling system For separating the object network (primary) from the IT cooling (secondary), the iQdata Heat exchanger can be used. In this, a control system is integrated, which computes the dew point using humidity and air temperature and raises the setpoint of the IT cooling water temperature until no condensate can occur on the pipes and heat exchanger. -
Page 22: Backcooler Control
User Manual iQdata Backcooler The Tichelmann system is that the flowing water must cover the same pipe length all over. In the process, the lengths of the flow and return lines are considered together and for each Backcooler the pressure loss is the same, so that the cold water volume flow is spread evenly. - Page 23 User Manual iQdata Backcooler Temperature difference - control Temperature difference - control with room temperature - control 22 of 23 SCHÄFER IT-Systems Industriestr. 41 D-57518 Betzdorf Phone: +49 (0) 2741/283-770 sales@schaefer-it-systems.de www.schaefer-it-systems.de As on: 2.05.2017 (subject to technical changes)
