Labgear LAB450K User Manual

LAB450K
User Guide
Congratulations on the purchase of your high gain digital
aerial. The aerial is ideal for the reception of all available
signals in weak and fringe areas. The aerial is of particularly
robust construction to ensure a long operating life.
• Ideal for fringe reception areas
• Tilting mast clamp for easy adjustment
• Tuned to prevent interference from 4G/5G mobile signals
• Easy dipole assembly
• Unique compact folding design
• Electronic 75Ω balun
• Connection: F type
General Safety Precautions
Do not undertake work outdoors at height unless you are
competent in the use of ladders and other access equipment.
Always use correct equipment, observe appropriate safety
precautions and follow manufacturers instructions. If in doubt
consult a professional installer.
Before starting installation check structure is sound and check for
hidden wiring or plumbing.
When working on an installation outside, beware of overhead power lines.
Observe safe working practices, tread carefully on roofs and ensure
adequate lighting is available if working in loft or roof space.
Before making any connections switch electricity off at the mains.
To avoid injury always route cables or wiring carefully. Ensure cable
is correctly routed before fixing into position, taking care not to
overtighten cable clips.
This kit contains small parts - keep out of reach of children.
After installation make regular maintenance checks for wear and tear.

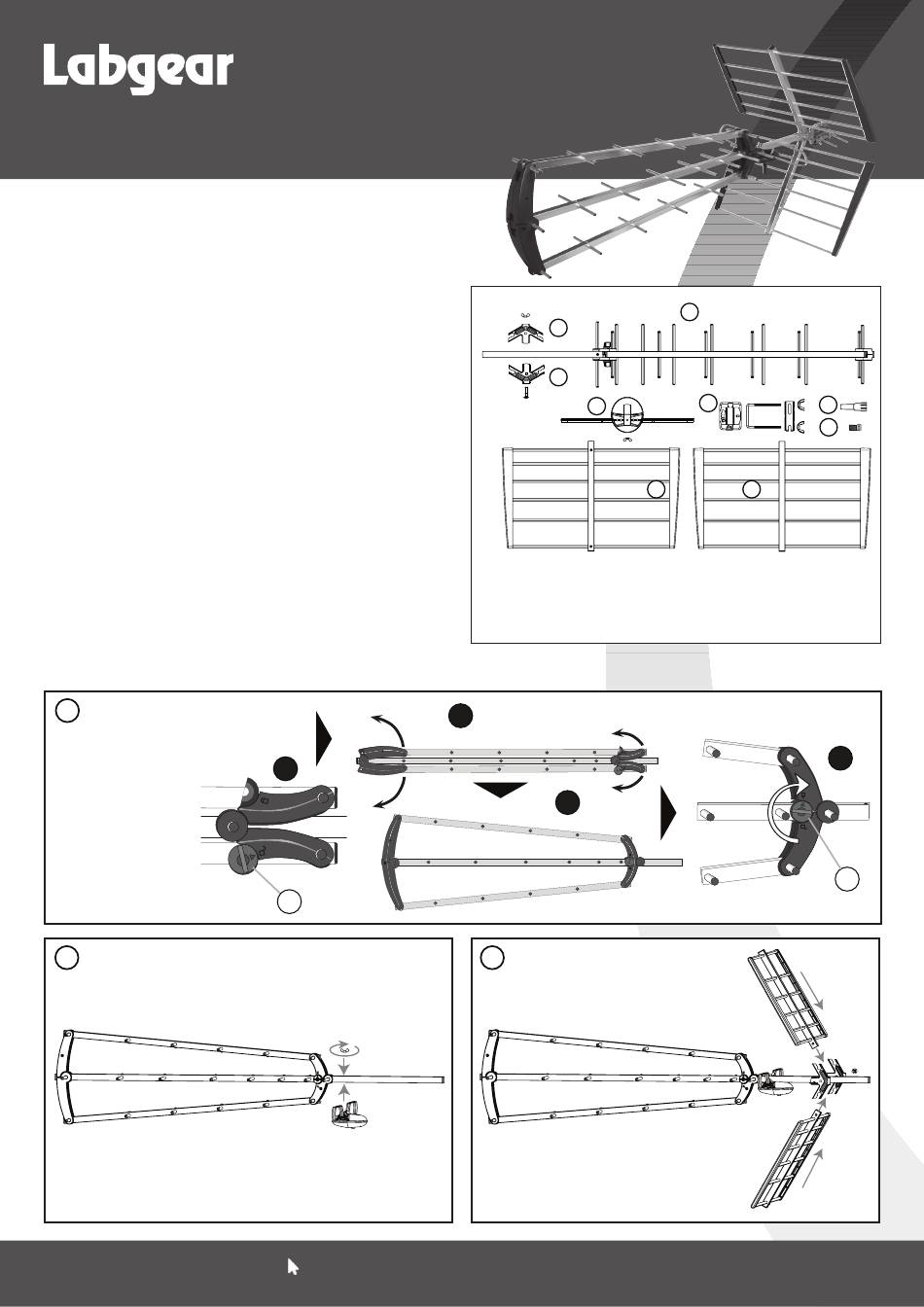

Aerial assembly
A
1. Twist the lock to open
2-3. Unfold the booms
4. To lock the booms in
position turn both of the
two knobs on either
side of the aerial in a
clockwise direction
through 180˚ making
sure that the arrows
line up with the locked
symbol - see Fig. 4.
B
Fasten the balun to the underside of the main
boom as shown in Fig. 5. Make sure the balun is the
right way round as shown in Fig. 4 and 8.
Tri-Boom Ultra High-Gain
TV Aerial Grp. K
1
8
Support: www.labgear.co.uk/support
Box Contents
2
2
3
1. Triboom x1
2. UHF Reflector clamps x2
(inc. bolt & wing nut)
3. Dipole x1 (inc. wing nut x1)
4. UHF Reflectors x2
2
3
C
Fix the reflectors to the main boom
using the brackets and the bolt with
wing nut supplied
1
5
6
7
4 4
5. Tilting Mast Clamp
(inc. wing nuts x2)
6. Weather Boot x1
7. F Plug x1
4
8
1
