Summary of Contents for Neon DS-TT-02 Series

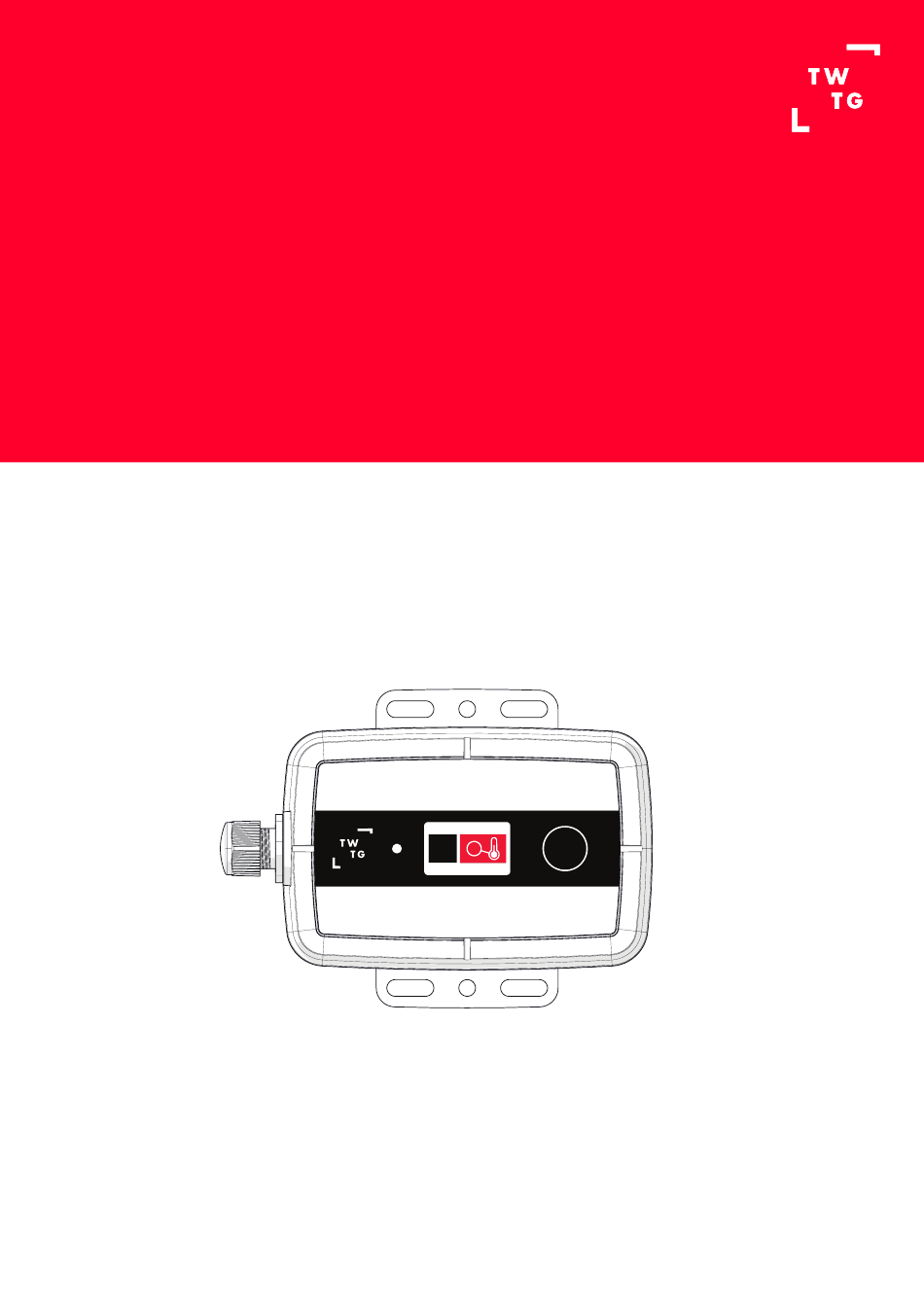

- Page 1 Temperature Transmitter Product Manual This document applies to version 2 of the NEON Temperature Transmitter (DS-TT-02-XX) Version A3 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 24-11-2022...
-
Page 2: Table Of Contents
1.1 NEON Product Introduction ........ - Page 3 8.1.5 Assembly of device ......... . . 30 9 Accessories and Spare Parts 10 EU Declaration of Conformity 11 FCC and ISED Declarations 3 of 34 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3...
-
Page 4: Twtg Neon
1 TWTG NEON 1.1 NEON Product Introduction NEON stands for a standardised approach to collecting data points from the operational environment and in doing so, creates a general approach to integrated data collection within existing IT ecosystems. The TWTG NEON product range supports all industrial customers moving towards LoRaWAN as the Industrial IoT network of the future. -
Page 5: Getting Started
In order to deploy the NEON Temperature Transmitter, a compatible and operational LoRaWAN network architecture is required. This manual does not contain any instructions of how to setup and install LoRaWAN networks. TWTG offers radio network planning and IT-architecture design services to fully integrate the products in the NEON product line. -
Page 6: Product Specifications
2 GETTING STARTED 2.4 Product Specifications Product Product name TWTG NEON Temperature Transmitter Type identification DS-TT-02-XX Supported temperature sensors Thermocouple Type-K (other types configurable over LoRa) RTD PT100 Environmental conditions Operating temperature range Transmitter -40°C - 70°C Storage temperature range 10°C - 30°C... - Page 7 CAN ICES-003(B) / NMB-003(B) Manufacturer information Name TWTG R&D BV Address Schaardijk 386 2909 LA Capelle a/d IJssel The Netherlands Table 3: Product specifications. See also "NEON datasheet" in Related documents for a detailed overview of specifications. 7 of 34 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3...
-
Page 8: Product Type Identification
BB - Product Revision E.g. 02 CC - Production Year E.g. 22 = 2022 DD - Region E.g. 00 = Global EE - Production Batch E.g. AA FFFFF - Serial Number E.g. 00001 Table 5: Serial Number NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 8 of 34... -
Page 9: Component Names
2 GETTING STARTED 2.6 Component Names Figure 2: Component Names Number Description Neon Transmitter Data Matrix Code Mounting Bracket M12 Connector Dust Cap Table 6: Component Names 2.7 Product Dimensions -4,5 Figure 3: Neon Transmitter Dimensions (mm) 9 of 34 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3... -
Page 10: Warnings
• If damage to the enclosure is evident, a trained and competent person shall be immediately informed, who shall remove the device from service as soon as possible; • If the equipment is or has been in contact with chemical materials, clean it appropriately. NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 10 of 34... -
Page 11: Output Parameters
3 WARNINGS 3.1.5 Output parameters The maximum output parameters are limited by the NEON Transmitter. When selecting the temperature sensor to be used with the transmitter, the following values must be taken into account: Control drawing NEON Transmitter Temperature Transmitter = 3.98 V... -
Page 12: Avertissements
– Utilisez uniquement l’ensemble de batterie Tadiran S1P1/SL-2780/323/TWT ; • Si le boîtier est endommagé, informez immédiatement une personne compétente pour qu’elle vienne récupérer l’équipement; • Si l’équipement est (ou a été) en contact avec des substances chimiques, nettoyez-le de manière appropriée. NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 12 of 34... -
Page 13: Output Parameters
4 AVERTISSEMENTS 4.1.5 Output parameters The maximum output parameters are limited by the NEON Transmitter. When selecting the temperature sensor to be used with the transmitter, the following values must be taken into account: Control drawing NEON Transmitter Temperature Transmitter = 3.98 V... -
Page 14: Provisioning
The product contains one Light Emitting Diode (LED) to communicate with the user. In order to interact with the device a button is present on the right side of the NFC label. Button Figure 6: NEON Temperature Transmitter Interface NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 14 of 34... -
Page 15: Operating The Device
5.2.1 Read device status Green White White Blinking Press and Release Press and Hold Release Activated Deactivated Connected Connecting 1. Press and Release the button button: • 2.1 Green: Device is activated • 2.2 Red: Device is deactivated 15 of 34 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3... -
Page 16: Device Activation
• 6.1 Green: Activation succeeded, or • 6.2 Red: Network failure Notes: • *All timeout and retry values are valid for the default configuration, the maximum timeout might be longer when process is performed repeatedly due to RF duty cycle limitations. NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 16 of 34... -
Page 17: Device Deactivation
Hold the button for 5 more seconds if the device is activated: • 3. Red: Deactivation Succeeded NOTE: The deactivation procedure will always succeed. An attempt for sending a status message will be performed. This will not be shown as blinking white LED. 17 of 34 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3... -
Page 18: Product Identification
Co ≤ 80 μF Lo ≤ 10 mH Po = 44 mW T T 0 2 2 0 0 2 A A 0 0 0 0 1 Figure 7: NFC and Data Matrix Code code Location NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 18 of 34... -
Page 19: Installation
• Only connect the M12 connector to the Temperature Transmitter when there is no explosive atmosphere present; • The equipment must be installed in accordance with EN 60079-14. 6.2 Mounting Bracket Dimensions 25,5 Figure 8: Product Dimensions 19 of 34 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3... -
Page 20: Installation Methods
Place the bracket against the (flat) desired surface and use the screw holes or slots to fix in place. Note: Slots and screw holes are designed for M4 fasteners. Figure 9: Product Mounting Holes 6.3.2 Installation using threaded holes Note: Threaded hole accepts M5 bolts. Figure 10: Product Threaded Mounting Holes NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 20 of 34... -
Page 21: Installation Using Bandclamp
6 INSTALLATION 6.3.3 Installation using bandclamp The Neon Temperature Transmitter can be mounted to a pole using a 14 mm wide band clamp, other sizes are not recommended. Procedure: 1. Place the band clamp through the bracket; 2. Place the band clamp around the pole and cut to size;... -
Page 22: Using The Temperature Transmitter With Thermocouples
The internal reference temperature is directly in thermal contact with the cold junction. 6.4.2 Assessed Connectors The following connectors have been assessed by TWTG and can be used in combination with the Neon Transmitter: Manufacturer Part Number... -
Page 23: Connecting A Thermocouple Wire To The Temperature Interface
Pin 2 Thermocouple Positive Connection Pin 3 Thermocouple Negative Connection Pin 4 Not used Table 9: Thermocouple pinout 1. Strip the wires down by 7mm; 2. Insert the cable through the waterproofing O-Ring and cable gland nut; 23 of 34 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3... -
Page 24: Using The Temperature Transmitter With A Rtd (3-Wire)
Do not use excessive force; • Ensure the correct polarity, as the device will not function properly with reversed polarity; 5. Close the locking lever of the push in connector; 6. Tighten the nut with the O-Ring. NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 24 of 34... -
Page 25: Product Functionalities
A condition-based trigger can be either of the following triggers: – Above If the maximum temperature is above the temperature_threshold then the condition is true. A transition of the condition from false to true or true to false will trigger an event message. 25 of 34 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3... -
Page 26: Content Application Event Message
• Event-based message at the time of each periodic trigger with an interval of 15 measurements. (15 * 15 = 225 mins); • Device status message interval of 24 hours; • Enabled confirmation message on all messages. See "Communication Protocol" in Related documents for a detailed explanation of all default configuration values. NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 26 of 34... -
Page 27: Maintenance
IMPORTANT: ESD Sensitive Electronics The product shall be installed in such a way that the risk for electrostatic discharges is minimised. • Take proper precaution such as a grounded wrist strap and avoid touching the electronics board 27 of 34 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3... -
Page 28: Disassembly Of Device
(marked in red) Align Step 3: Place the new battery assembly. Use the rib on the battery cradle (marked in red) to align with designated cut out in top housing and connect the new battery connector NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 28 of 34... -
Page 29: Built-In Self-Test Procedure
3.3: No LED, no response from device. Check device. After pressing the button once and passing the self-test the device will leave the self-test mode. Pressing the button again will show the device status, as explained in Read device status. 29 of 34 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3... -
Page 30: Assembly Of Device
For correct orientation; Make sure that the bottom housing grounding plate is aligned with the top housing M12 connector Step 6: Tighten the four M3 screws to fix the bottom housing. Use a torque screwdriver to set the maximum torque to 1 Nm NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 30 of 34... -
Page 31: Accessories And Spare Parts
Including 1 battery assembly, 4 O-Rings, 1 gasket Replacement-Kit M12 compatible connector Phoenix Contact Push-in, metal, straight connector 1424655 compatible angled Phoenix Contact Push-in, metal, right angle connector connector 1424656 Table 12: Available Accessoires & Spare Parts 31 of 34 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3... -
Page 32: Eu Declaration Of Conformity
• EN 301 489-3 V2.1.1 • EN 61010-1:2010 + A1:2019 + A1:2019/AC:2019 • EN 62311:2020 • EN 60529:1991 + A1:2000 + A2:2013 3. WEEE Directive 2003/1008/EC 4. RoHS (2011/65/EU) For the full Declaration of Conformity see: www.twtg.io/legal NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 32 of 34... -
Page 33: Fcc And Ised Declarations
• Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de Classe B est conforme à la norme Canadienne ICES-003. CAN ICES-003(B) / NMB-003(B) 33 of 34 NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3... - Page 34 Revision History Revision Date Author(s) Description 29-07-2022 - Concept version 05-10-2022 - Updated product specifications and ratings - Added French warnings 24-11-2022 - Updated FCC/ISED declaration NEON-Temperature-Transmitter_User-Manual_DS-TT-02-xx_4001_A3 34 of 34...
