- Page 1 AWC708LITE LCD Display Operation Manuals V1.1 AWC708LITE AWC708LITE ISPLAY ISPLAY V1.1 V1.1 PERATION ANUALS PERATION ANUALS AMOR CNC LASER TEL : 86 18863504017 EMAIL:amorsales@amorcnclaser.com WEBS : www.amorlaser.com...
-
Page 2: Table Of Contents
AWC708LITE LCD Display Operation Manuals V1.1 Category 5 Panel Preview................................1 6 Buttons Function Introduction...........................1 7 Main Menu Function Introduction..........................2 8 Main Menu Function Settings............................. 3 8.8..................................ument parameters settings..........................3 8.9..................................er Parameters Settings............................5 8.10..................................Clea ning Total Count..............................5 8.11.................................. - Page 3 AWC708LITE LCD Display Operation Manuals V1.1 • • Axis Speed Parameters..........................17 Rotate Engraving & Cutting........................17 9.15................................... etwork Settings..............................18 9.16................................... anguage................................19 9.17................................... stem Version...............................19 10......................................M anufacturer Parameters Settings..........................20 10.8................................... xis Parameters..............................20 10.9................................... aser Parameters..............................22 10.10..................................
-

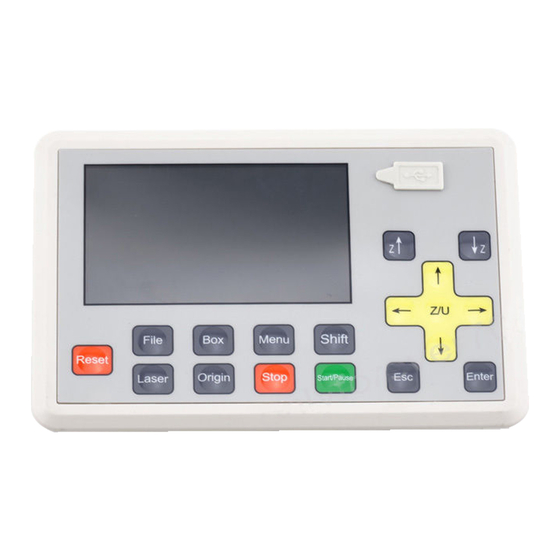

Page 4: Panel Preview
AWC708LITE LCD Display Operation Manuals V1.1 Panel Preview Buttons Function Introduction 【Rest】 No matter what the state of the machine is,pressing this button will make it enter the resetting state. 【File】 Browsing the files stored in the controller main board. -
Page 5: Main Menu Function Introduction
AWC708LITE LCD Display Operation Manuals V1.1 Main Menu Function Introduction 【Top bar】 To display control system software version, date and time. 【File】 To display the file name currently being processed.(Not allowed Chinese name) 【Count】 To show the finished number 【Speed】 To display the default speed of this current file. -
Page 6: Main Menu Function Settings
AWC708LITE LCD Display Operation Manuals V1.1 Main Menu Function Settings Document parameters settings In the Main menu area press 【Enter】to make the file name be anti-color displayed. Second press【Enter】to enter file parameters setting area.Move cursor to【Document Params Settings】， Press 【Enter】to enter the document parameters settings area. - Page 7 AWC708LITE LCD Display Operation Manuals V1.1 【Repeat Count】 Machine repeat working times. 【Repeat Delay(s)】 The period between the front file finished and the next repeat working the same file. 【Feed Distance(mm)】:Distance of each movement of the feeding axis . 【X Size(mm)】The size in the X direction of the file...
-
Page 8: Lay
AWC708LITE LCD Display Operation Manuals V1.1 Layer Parameters Settings In the file parameters setting area,press 【↓】to move the cursor to 【Layer Params Settings】,Press 【Enter】to enter Layer Parameters Settings area. 【Work Mode】 To choose the working state of the processed file. -
Page 9: Set
AWC708LITE LCD Display Operation Manuals V1.1 Set Work Property In the main menu press 【Enter】to make the cursor anti-color displayed.Move it to 【Speed】，press 【Enter】then find【Set Work Property】. Move cursor to the options you want to change，Press【Z↑】【Z↓】to change the numbers . then press... -
Page 10: Main Menu Function Settings
AWC708LITE LCD Display Operation Manuals V1.1 Main Menu Function Settings U Disk Files Insert U disk to USB port. After U disk indicator worked，press【Menu】to enter the main menu，move cursor to【U Disk Files】 then press【Enter】to enter U disk files management. -
Page 11: U Disk Work Files
AWC708LITE LCD Display Operation Manuals V1.1 ※ U disk should be formatted to FAT 32 File system.Quick Format is forbidden .Any other files formations are not supported. ※ Recommend use U disk with Indicator to ensure if U disk connected successfully with mainboard ... -
Page 12: Config Files
AWC708LITE LCD Display Operation Manuals V1.1 ※The working file in U disk means off-line file saved in U disk that with file suffix ud5.Files with JPEG formation saved in U disk cannot be read directly. Config Files. 5.1.2 Move cursor to 【Config’ Files】，press【Enter】to enter it.Move cursor to the file which you need to copy to... -
Page 13: Upgrade Files
AWC708LITE LCD Display Operation Manuals V1.1 Upgrade Files 5.1.3 Mover cursor to 【 Upgrade’ Files】and press【 Enter】to enter Upgrade Files area.Mover cursor to the file you need，press【Enter】then it will be finished.LITE version upgrade files are AWC708L…… ※Don’t cut off electricity before upgrade finished.Or it may lead a burnt out.Upgrade period lasts 30 seconds.After that,main board will finish a resetting. -
Page 14: U Disk Format
AWC708LITE LCD Display Operation Manuals V1.1 U Disk Format 5.1.5 Move cursor to 【U Disk Format】and press【Enter】 ※Choose “U disk format” will lead all files lost! Origin Manage In main manual area press【Menu】then move cursor to【Origin Manage】. Move cursor to【Origin1 Manage】press【Enter】to enter the Origin 1 management interface. -
Page 15: Control
AWC708LITE LCD Display Operation Manuals V1.1 Move cursor to “The origin’PX(mm)”and “The origin’PY(mm)” .Press【Z↑】【Z↓】to change the numbers and the location.Press【Enter】to confirm the changes. Jog Control In main menu interface press【Menu】.Move cursor to 【Jog Control】press【Enter】.Press【Z↑】【Z ↓】to change the jog distance you want to change.Press【Enter】to finish it. -
Page 16: Ut Box
AWC708LITE LCD Display Operation Manuals V1.1 Cut Box In main menu interface press【 Menu】 and move cursor to【Cut Box】.Press【Enter】to enter “Cut box”.Move cursor to “Blank Distance(mm)”.Press【Z↑】【Z↓】to edit the blank distance.After that you can choose 【Start cutting box】and press【Enter】to start cutting box. -
Page 17: Otion Parameters Settings
AWC708LITE LCD Display Operation Manuals V1.1 Motion Parameters Settings In main menu interface press【Menu】.Move cursor to 【Motion Parameters Settings】press【Enter】.Press 【Z↑】【Z↓】to change the numbers.Press【Enter】to finish it. 【Space Speed(mm/s)】When laser not output,the movement speed of laser head. 【Cut Jerk(mm/s3)】Cutting speed jerk of axes. -
Page 18: Ommon Parameters Settings
AWC708LITE LCD Display Operation Manuals V1.1 Common Parameters Settings In main menu interface press【Menu】.Move cursor to 【Common Parameters Settings】press【Enter】. Work Mode 5.7.1 Move cursor to 【Work Mode】press【Enter】. Move cursor to【Go Origin After Rest】and press【←】【→】.Can choose “back to origin point after... -
Page 19: Common Parameters
AWC708LITE LCD Display Operation Manuals V1.1 a reset”as on or off. Move cursor to【Origin Mode】and press【←】【→】.Can switch origin mode as【Software Origin】 【Machine Zero As Origin】【Current Position】【Key Origin】.Press【Enter】to finish changes. Move cursor to【GoBack Position】 and Press【←】【→】.Can switch back position mode as【Goback Machine Zero】【Current Position】【Current Origin】.Press【Enter】to finish the changes。... -
Page 20: Axis Speed Parameters
AWC708LITE LCD Display Operation Manuals V1.1 【AutoFocus Distance(mm)】The Distance from Laser head lens focus point to the origin point of Z axis. 【KeyMove’Speed(mm/s)】The speed of axis movement when buttons in the panel pressed. 【RunBox’ Speed(mm/s)】 The speed of laser head running in space state,or running box without laser output. -
Page 21: Etwork Settings
AWC708LITE LCD Display Operation Manuals V1.1 【Rotate Function】The switch of rotate engraving function.Keep it open if you need. 【Rotate Axis】the chosen axis when rotate engraving function be used with. 【Pulse Count Per Rotate】 The Pulse parameters for motor to make rotate axis rotary one circle. -
Page 22: Anguage
AWC708LITE LCD Display Operation Manuals V1.1 Language In main menu interface press【Menu】.Move cursor to 【Language】and press【 Enter】.Then press 【←】【→】to switch languages and press【 Enter】to finish it. System Version In main menu interface press【Menu】.Move cursor to 【Language】and press【 Enter】to check the... -
Page 23: Anufacturer Parameters Settings
AWC708LITE LCD Display Operation Manuals V1.1 Manufacturer Parameters Settings Press 【Stop】button and not loose it.Then input numbers【 shift 】to enter Manufacturer Parameters Settings interface. Axis Parameters Move cursor to 【Axis Parameters】and press【 Enter】 In Axis Parameters setting interface ,move cursor to X axis parameters option.Press【Enter】to enter... - Page 24 AWC708LITE LCD Display Operation Manuals V1.1 【Distance Per Pulse(um)】The distance of a position control movement as a controller output one position control pulse. 【Valid Pulse Edge】 The virtual value of driver electronic level changes. 【Datum Direction】 The machine movement direction when resetting.A wrong operation on it will lead your machine move to reversed direction.
-
Page 25: Aser Parameters
AWC708LITE LCD Display Operation Manuals V1.1 Laser Parameters In Manufacturer Parameters setting interface ,move cursor to Laser Parameters option.Press【Enter】 to enter it.Move cursor to do changes you need.Press 【←】【→】then press 【Enter】to finish it. 【Laser Mode】 laser tubes mode. 【TTL Valid Level】 means control level of laser tube.A wrong operation will lead output and stop... -
Page 26: Utoreset Settings
AWC708LITE LCD Display Operation Manuals V1.1 【PWM Frequency(hz)】 To change the pulse frequency of control signal that laser source used. 【Max Power(%)】 Max power of laser tube or max limitation of laser source.The highest power operator adjusted cannot be beyond this.It is always presented wit a percent way. -
Page 27: Ardlimit Settings
AWC708LITE LCD Display Operation Manuals V1.1 【XY/Z/U/V/W AutoReset】 If you want to use it,please keep relative axis option open. HardLimit Settings In Manufacturer Parameters setting interface ,move cursor to Hard Limit Settings option.Press【Enter】 to enter it.Move cursor to do changes you need.Press 【←】【→】then press 【Enter】to finish it. -
Page 28: Ultihead Settings
AWC708LITE LCD Display Operation Manuals V1.1 MultiHead Settings In Manufacturer Parameters setting interface ,move cursor to MultiHead Settings.Press【Enter】to enter it.Move cursor to do changes you need.And Press【Z↑】【Z↓】to change parameters.Press 【←】 【→】then press 【Enter】to finish it. Function Config In Manufacturer Parameters setting interface ,move cursor to Function Config.Press【 Enter】to enter... - Page 29 AWC708LITE LCD Display Operation Manuals V1.1 【Z For Autofocus】: Switch of Z axis auto focus option.If need keep it open. If need U axis for auto feeding ,keep it open. AMOR CNC LASER TEL : 86 18863504017 EMAIL:amorsales@amorcnclaser.com WEBS : www.amorlaser.com...
- Page 30 Software Copyright: AWC708LITE Controller User Manual Copyright: AWC708LITE LCD Display Operation Manuals V1.1 AWC708LITE LCD controller and this operation manual is reserved by Shenzhen Trocen Automation Technology Co.,Limited. Only with Authorize of origin purchasers could all products be issued and sold. Without permission from...
