Braun Group IPG2P2S User Manual

USER GUIDE
PoE & Optical Transmission
Product Overview

Product Introduction

This PoE switch features with 2x PoE Ethernet ports that comply with 10/100
802.3at(PoE+) + 2 Gigabit SFP interfaces. The power supply of single PoE port can be up to 30W. This switch
can offer power over Ethernet to network weatherproof IP camera with wipers and heater, high performance wire-
less AP, industrial VoIP phone or other PoE supported equipments, flexible for applications. SFP fiber optic port
transmission distance can be up to 120KM, with high resistance to electromagnetic interference.
Specially designed for harsh outdoor applications. Its 3KV network port surge protection can adapt to harsh outdoor
environment and ensure the reliability of the uninterrupted PoE system.
! Note
The product 'Switch' mentioned in the manual, if without a special request, it is referring to industrial IPG2P2S PoE Switch Series ,
PoE switch or switch in short in below.

Feature

Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D,IEEE 802.3at, IEEE 802.3af, IEEE
802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1W, IGMP standards;
2x 10/ 100M self-sensing RJ45 ports, support PoE power supply function;
All RJ45 ports support auto-flip (Auto MDI/MDIX);
Each PoE port can provide power up to 15.4W (af) or 30W (at);
Supply power for powered devices compatible with IEEE802.3af/at;
Support IEEE802.3x full duplex flow control and duplex backpressure flow control;
8G backplane bandwidth;
8K MAC address table;
Its 3KV network port surge protection can adapt to harsh outdoor environment;
Can full-load work under the temperature of -40 ~ +80 ˚ C;
2 1000M SFP fiber slot which is capable of high bandwidth and long distance transmission.
1Mbit buffer memory
IPG2P2S
/1000 BaseT(X),802.3af(PoE) and
Statement
Copyright @ 2002-2017 our company All Rights Reserved
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or trans-
lated into any language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise without the prior written permission of our company.
All other trademarks mentioned in this document are owned by their respective owners. The information and
product specifications within this document are subject to change at any time, without notice and without
obligation to notify any person of such change. For reference only, assumes no responsibility for the statement
and information from this document.

Packing List

Please kindly check the following items:
1 x Industrial PoE switch
Power Kits(Need to order it separately)
1x User Guide/Warranty Card
Note
!
If any shortage or damage found, please contact us in time.

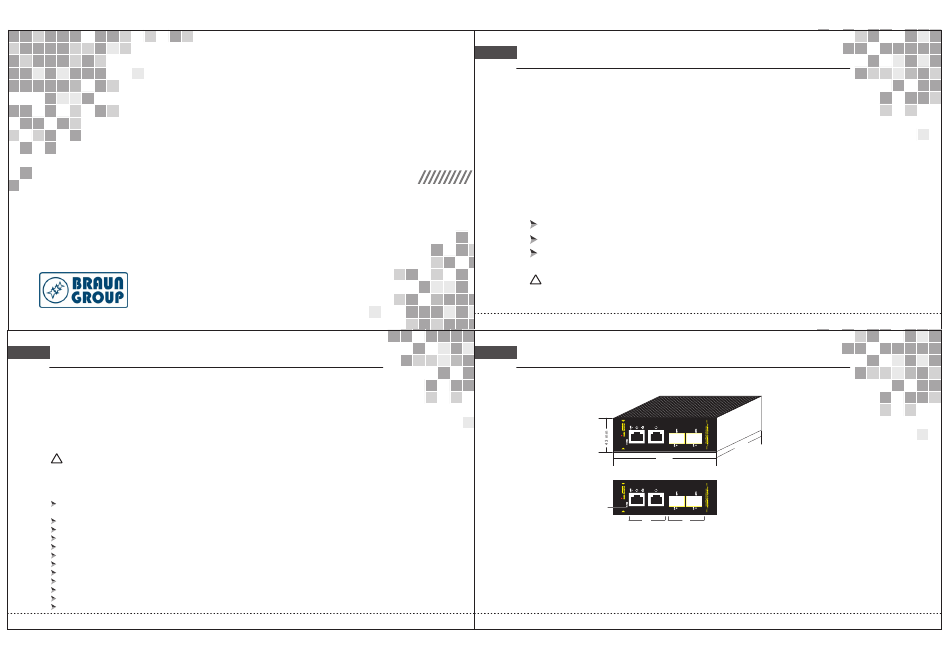

Size and Panel Description
110 mm
A
B C
A. System working Indicator
B. RJ45 Port
C. Uplink SFP Optical Port
m m
8 0
