Summary of Contents for Truper Expert BOAP-1/2

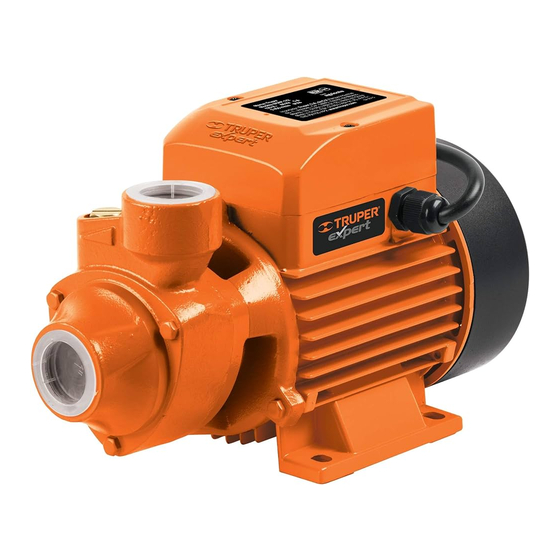

- Page 1 Manual Peripheral water pump Agricultural Use Applies for: Code Model 10068 BOAP-1/2 10069 BOAP-3/4 10070 BOAP-1 Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Contents CAUTION Technical data Power requirements To gain the best performance of the tool, prolong the duty life, General power tool make the Warranty valid if safety warnings necessary, and to avoid hazards of fatal injuries please read and Safety warnings for understand this Manual before the use of water pumps using the tool. -
Page 3: Technical Data
Technical data BOAP-1/2 BOAP-3/4 BOAP-1 Code 10068 10069 10070 Description Peripheral Water Pump Voltage 127 V Frequency 60 Hz Speed 3 450 RPM Current 4.7 A 7.2 A 10.4 A Power 1/2 Hp 3/4 Hp 1 Hp Outlet and Inlet Diameter... -
Page 4: Safety Warnings
General power tools safety warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For The Use Of Water Pumps
Safety warnings for the use of water pumps Adequate Uses • Do not install the pump in areas • The pump is a stationary device designed to pump clean WARNING where there is danger of explosion or near combustible neutral liquids, with no suspended abrasive solids, in liquid and gases. -
Page 6: Installation
Installation Mounting • The pump shall be installed in a dry place, away from the elements; with air flow to allow air flow for the adequate ventilation (A) Ambient temperature not exceeding 104 ºF • Use bolts to fix the pump onto a concrete base to prevent vibrations (B) The pump shall be installed in a horizontal position to assure it runs properly. -
Page 7: Start Up
Installation Electrical Installation • Call a professional electrician to carry out the electric connection to the power supply (G), following the mandatory rules. • The fixed installation shall incorporate a device to assure the omnipolar disconnect from the power supply. •... -
Page 8: Maintenance
Maintenance • The pump does not require maintenance only if following these simple precautions: • When there is a risk of freezing, empty the pump completely by removing the foot valve so that the pipe can drain (J). Remember to flush the pump before starting it up again. -
Page 9: Troubleshooting
Troubleshooting Problem Cause Solution The motor is not • There is no power • Check the connections and the power values. starting • The impeller is stuck • Release it with a screwdriver (see page 8) The motor turns but is •... -
Page 10: Notes
Notes ENGLISH... -
Page 11: Authorized Service Centers
Authorized service centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center. -
Page 12: Warranty Policy
Warranty policy Code Model Brand 10068 BOAP-1/2 10069 BOAP-3/4 10070 BOAP-1 Warranty. Duration: 5 year. Coverage: parts, components and workmanship against manufacturing or operating defects, except if used under conditions other than normal; when it was not operated in accordance with the instructive;...
