USER MANUAL
Gravity centre testing device
GTD14-S281
REGISTERED DESIGN
I. Use
The device is designed to test safely a location of gravity centre
of athletics hammer heads (shot puts). The hammer head (shot
put) stays securely on the device during testing procedures, even
if the result is negative and the hammer head or shot put falls
off the testing edge. According to the competition rules of the
International Association of Athletics Federations (Competition
Rules 2014-2015, Rule 191.5) the gravity centre of the hammer
head should be not more than 6 mm from the centre of the
sphere.
II. Testing

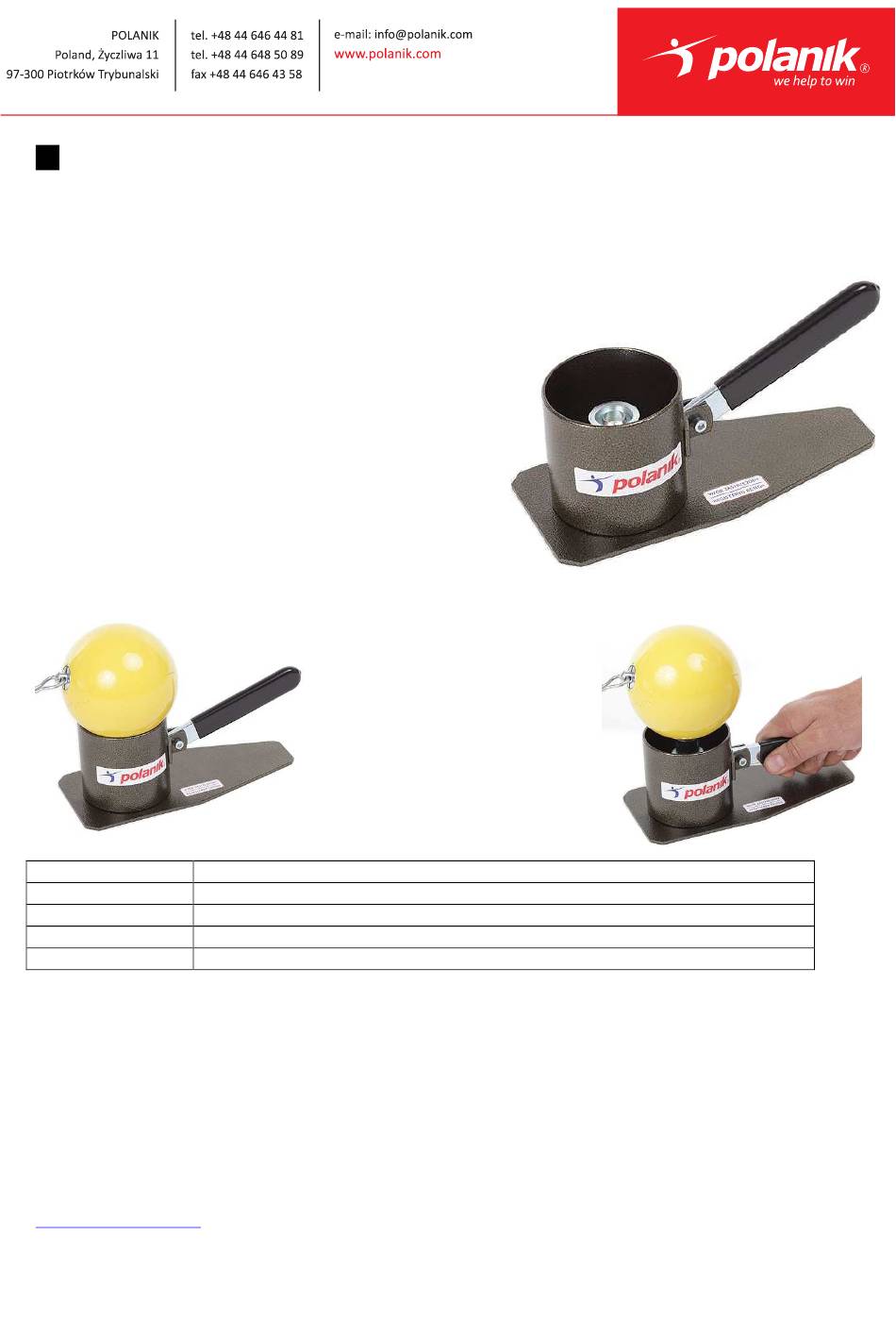

After unpacking the device is ready for use. Place the hammer head (shot put) on the cylinder of the device.
III. Technical data
Product code GTD14-S281
Description gravity centre testing device, registered design
Construction Steel, powder painted and galvanized, handle with synthetic lining
Dimensions [mm] 240 x 100 x (85*) 110
Net weight [kg] 1,4
*lever in working position
IV. Operation and maintenance
Clean after using and store in a dry roofed place.
V. Packing and transport
The product is packed in the carton box, dimensions [mm]: 215 x 185 x 185. Gross weight 1,7 kg.
File: 2014-06-18
PRODUCT SUPPORT
Paweł Ciechanowski
p.ciechanowski@polanik.com
GTD14-S281
Press the lever all the way down - the
steel sleeve (diameter 12 mm) lifts the
hammer head (shot put) from the
edge. If the hammer head (shot put)
stays on the sleeve, it complies with
the IAAF rules.
