control
– motion – interface
•
Mini housing 48 x 24 mm (1.890 x 0.945'')
•
Bright LED display 6 decades/ 8mm (0.315'')
•
Add- on frame for 50 x 25 mm (1.969 x 0.984'')
•
10 – 30 Vdc power supply
•
60 kHz of counting frequency with 24 Vdc power input
•
Selectable filter for mechanical inputs
•
Adjustable multiplier and divider
•
Protection class IP65 on front
•
Easy to set up by menu support
Tachometer and Frequency Counter
Operating Instructions
DX020
Advertisement
Table of Contents
Summary of Contents for Genesis Automation moTrona DX020

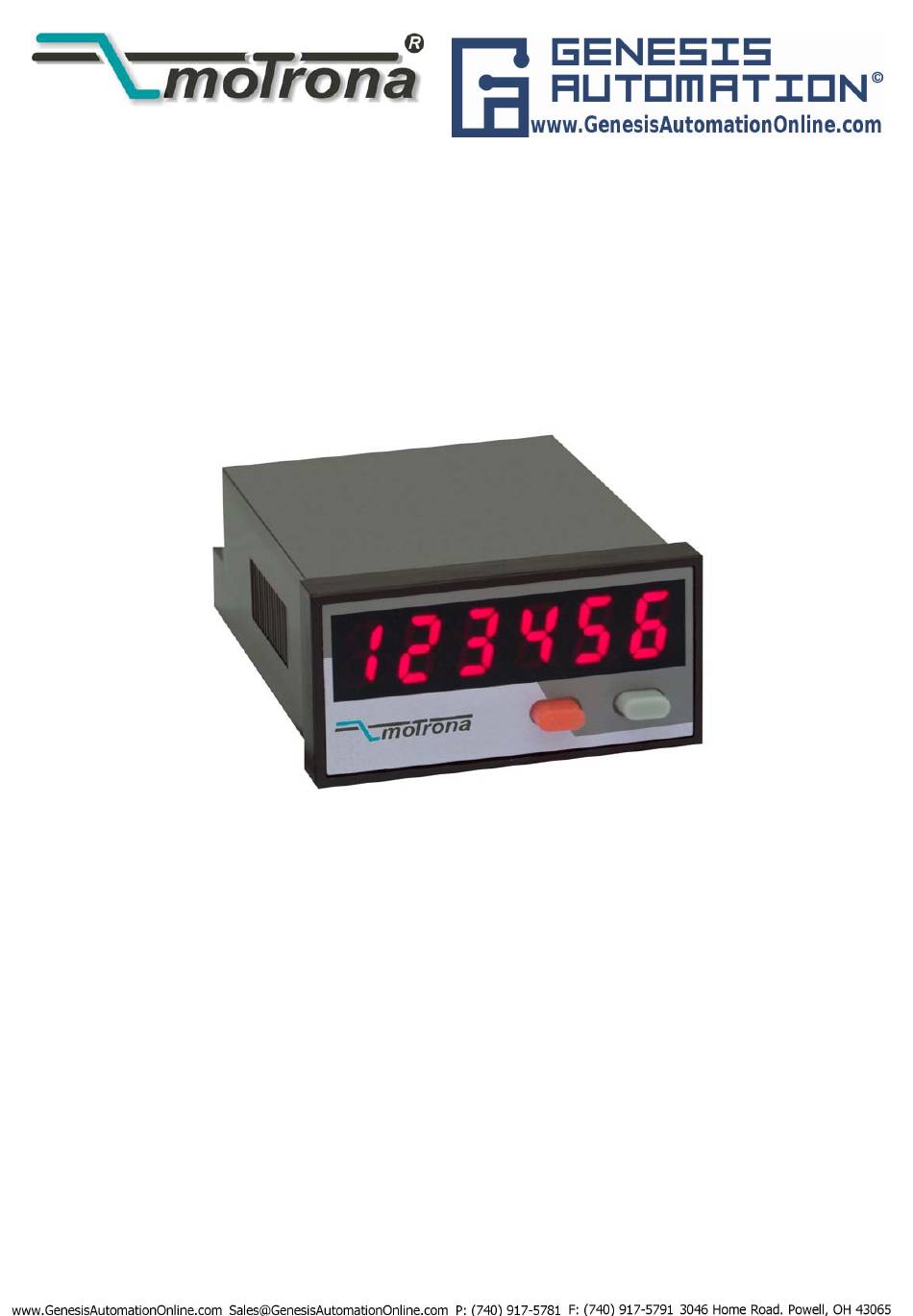

- Page 1 control – motion – interface DX020 Tachometer and Frequency Counter • Mini housing 48 x 24 mm (1.890 x 0.945’’) • Bright LED display 6 decades/ 8mm (0.315’’) • Add- on frame for 50 x 25 mm (1.969 x 0.984’’) •...
- Page 2 Safety Instructions • This manual is an essential part of the unit and contains important hints about function, correct handling and commissioning. Non-observance can result in damage to the unit or the machine or even in injury to persons using the equipment! •...
-
Page 3: Table Of Contents
Table of Contents 1. Operation of the front keys ................4 2. Operational parameters .................. 5 2.1. Input polarity ......................5 2.2. Input filter......................5 2.3. Scaling factors.......................5 2.4. Decimal point ......................5 2.5. Display mode......................6 2.6. Maximum waiting time ..................6 2.7. End of program ......................6 3. -
Page 4: Operation Of The Front Keys
1. Operation of the front keys To enter the setup mode, keep both front keys down while you switch power on. You can also enter the setup mode when the unit is already powered on, by keeping both front keys down at the same time for approx. 5 seconds. The display will then show As soon as you release the keys, the display starts to alternate between the actual parameter text and the associated setting, in a cycle of two seconds. -
Page 5: Operational Parameters
2. Operational parameters Please enter all of the subsequent parameters, like shown in section 1. 2.1. Input polarity InPol NPN: The count input must switch to“0“ PNP: The count input must switch to “+“. Namur: Set to NPN. See section 3. 2.2. -
Page 6: Display Mode
2.5. Display mode diSPm Sec -1 The unit displays the frequency as number of impulses per second (Hz). (With factor setting 1.0000) Min -1 The unit displays the frequency as number of impulses per minute. (With factor setting 1.0000). 2.6. Maximum waiting time WAit0 01.1 This setting specifies the maximum waiting time... -
Page 7: Terminal Assignment
3. Terminal Assignment (also printed to the top of the unit) *With use of Namur sensors, the minimum supply voltage is 18 Volts. ( Namur ) Input 0V (GND) +10...30VDC * 4. Delivery includes Panel mounting clip Bezel for screw mount with panel cut out 50 x 25mm Bezel for clip mount with panel cut out 50 x 25mm Sealing DX02002b_e.DOC / Jan-08... -
Page 8: Specifications
5. Specifications Power supply 10...30 Vdc, max. 50mA Display 6 decades / 8mm (0.315’’) Input NPN / PNP / Namur, Ri = 10 kOhms Counting frequency with 12 volts power input: 20 kHz with 24 volts power input: 60 kHz with the filter switched on: 30 Hz) Switching levels of input Low = 0V..0.2 x UB... -
Page 9: Dimensions
6. Dimensions 6.1. Mounting without use of add-on frames max. 19.3 max. 0.7 6’’ 48,0 (1.890’’) 4,0 (0.157’’) 45,0 (+0,6) 59,0 (2.323’’) 1. 772’’ (+ 0.024 ) 6,5 (0.256’’) 6.2. Bezel 50 x 25 mm (1.969 x 0.984’’) for clip mounting 1,0 (0 .039’’) 53,0 (2.087’’) 50,0 +0,6...
