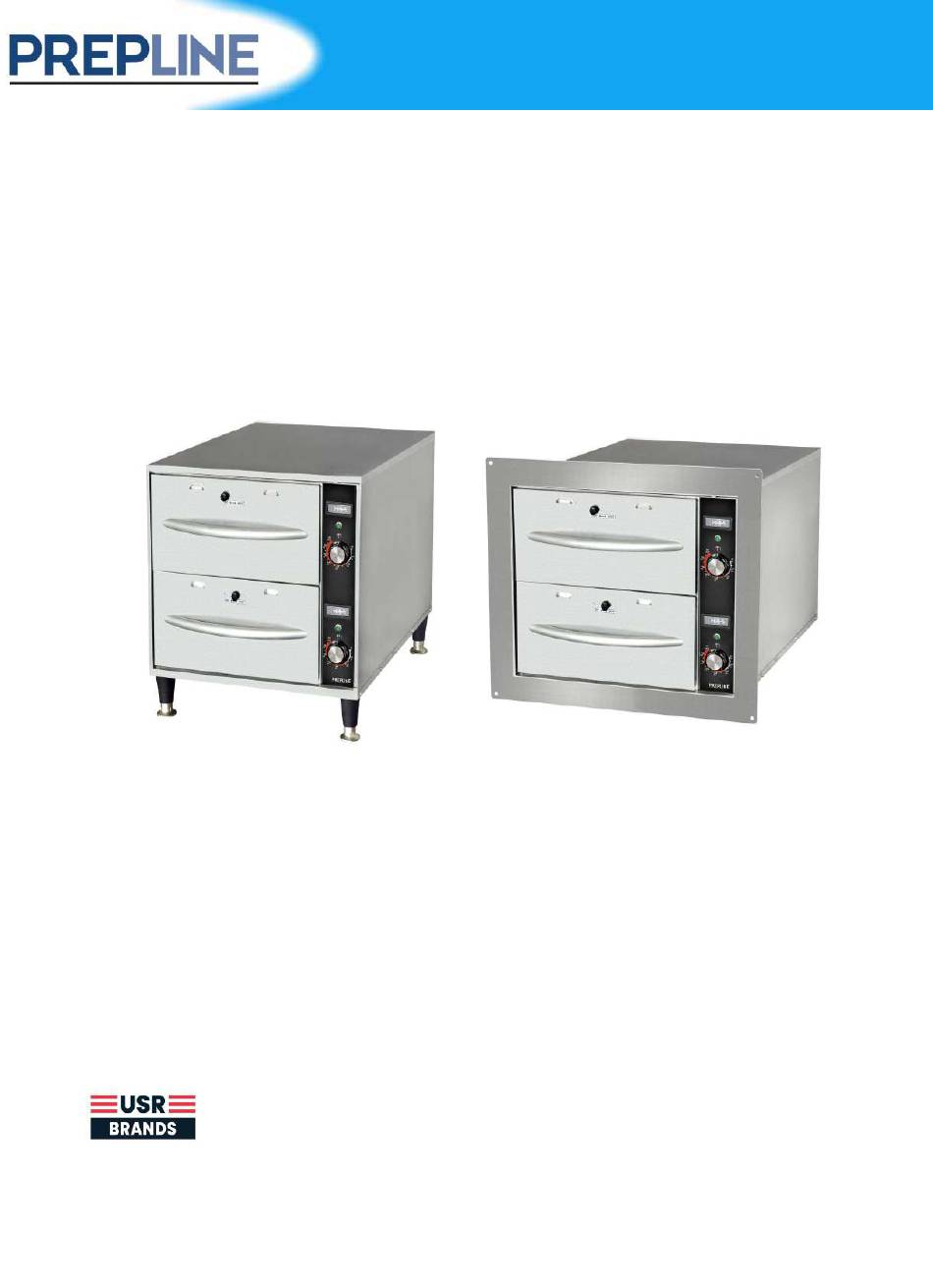

- Page 1 USER MANUAL DRAWER WARMER MODEL: DW-1, DW-2, DW-3, DW-1N, DW-2N, DW-3N, BDW2, BDW2N USR Brands, Inc. Phone: 800-764-1172 | www.usrestaurant.com | sales@usrestaurant.com USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE...
- Page 2 WARMER DRAWER INTENDED FOR OTHER THAN HOUSEHOLD USE RETAIN THIS MANUAL FOR FUTURE REFRENCE UNIT MUST BE KEPT CLEAR OF COMBUSTIBLE AT ALL ITEMS FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 3: Table Of Contents
TABLE OF CONTENT Section Title Page Owner`s information general information general operation instruction Important Safety Information Specifications Warning Operation Cleaning Trouble Shooting Wiring Diagram Parts List&Exploded View DW Exploded View DW Parts List BDW Exploded View BDW Parts List DWN Exploded View DWN Parts List BDWN Exploded View BDWN Parts List... -
Page 4: Owner`s Information
1. OWNER’S INFORMATION General Information Always clean equipment thoroughly before first use. (See general cleaning instruction) Check rating label for your model designation and electrical rating. For best results, use stainless steel countertops. All dimensions in parenthesis in centimeters unless noted. General operation instructions: All foodservice equipment should be operated by trained personnel. -
Page 5: Warning
4.WARNING IN THE EVENT OF A POWER FAILURE , DO NOT ATTEMPT TO OPERATE THIS DEVICE. WARNING: ELECTRICAL SHOCK HAZARD. FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL COULD RESULT IN SERIOUS INJURY OR DEATH. 1. Plug unit into a properly grounded electrical receptacle of the correct voltage,size and plug configuration. -
Page 6: Operation
FIRE HARZARD: Locate unit a minimum of 1"(25mm)from combustible walls and materials.If safe distances are not maintained,discoloration or combustion could occur. Do not harsh Chemicals such as bleach(or cleaners containing bleach), oven cleaners, or flammable cleaning solutions to clean this unit. Make sure food pproduct has been heated to proper food-safe temperature before placing in the unit. -
Page 7: Cleaning
6.CLEANING General Cleaning Instructions 1. Never clean any electrical unit by immersing it in water. Turn off before surface cleaning. 2. Always clean equipment thorougnly before first use. Clean unit daily except where noted on charts: Use warm, soapy water. Mild cleansers and PLASTIC souring pads may be used to remove baked-on food and water scale. -
Page 8: Trouble Shooting
7.TROUBLE SHOOTING Always ask and check the following 1. Is the unit connected to a live power source of the proper voltage? 2. Check the circuit breaker. 3. Is power switch"ON" and pilot light glowing? 4. Check the ratinglabel.Is the unit connected to the correct power source. -
Page 9: Wiring Diagram
8.WIRING DIAGRAM USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE... -
Page 10: Parts List&Exploded View
9.PARTS LISTS & EXPLODED VIEW DW SERIES EXPLODED VIEW Casters are optional DW-2 USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE... -
Page 11: Dw Parts List
DW SERIES PARTS LIST PARTS DW-1 DW-2 DW-3 （QTY） ITEM DESCRIPTION DW1-010001 Body Assembly DW2-010001 Body Assembly DW3-010001 Body Assembly DW-010321 Element Bracket DWFRG-120 Heating Elements DWFRG-208 Heating Elements DWFRG-240 Heating Elements DW-030001 Center Pan Support DW-020301 Assemby DW-020201 Drawer Face Assembly... -
Page 12: Bdw Exploded View
BDW SERIES EXPLODED VIEW BDW2 USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE... -
Page 13: Bdw Parts List
BDW SERIES PARTS LIST PARTS BDW-2 （QTY） ITEM DESCRIPTION VOLTS DWB1-010001 Body Assembly DWB2-010001 Body Assembly DWB3-010001 Body Assembly DW-010321 Element Bracket DWFRGB-120 Heating Elements DWFRGB-208 Heating Elements DWFRGB-240 Heating Elements DW-030001 Center Pan Support DW-020301 Assemby DW-020201 Drawer Face Assembly DW-020401 Drawer Handle Drawer Vent Knob... -
Page 14: Dwn Exploded View
DWN SERIES EXPLODED VIEW Casters are optional DW2N USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE... -
Page 15: Dwn Parts List
DWN SERIES PARTS LIST PARTS DW1N DW2N DW3N （QTY） ITEM DESCRIPTION VOLTS VOLTS VOLTS DWS1-010001 Body Assembly DWS2-010001 Body Assembly DWS3-010001 Body Assembly DWS-010321 Element Bracket DWFRGS-120 Heating Elements DWFRGS-208 Heating Elements DWFRGS-240 Heating Elements DW-030001 Center Pan Support DWS-020301 Assemby DWS-020201 Drawer Face Assembly... -
Page 16: Bdwn Exploded View
BDWN EXPLODED VIEW BDW2N USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE... -
Page 17: Bdwn Parts List
BDWN SERIES PARTS LIST PARTS BDW2N （QTY） ITEM DESCRIPTION VOLTS DWSB1-010001 Body Assembly DWSB2-010001 Body Assembly DWSB3-010001 Body Assembly DWS-010321 Element Bracket DWFRGS-120 Heating Elements 450W DWFRGS-208 Heating Elements 450W DWFRGS-240 Heating Elements 450W DW-030001 Center Pan Support DWS-020301 Assemby DWS-020201 Drawer Face Assembly DWS-020401... -
Page 18: Components Supply
10.Component Supply 1. PRELINE Stainless Steel Pans for Replacement 2. Font Plate for Replace-Build in Design 3.Casters for Option to Replace Legs CASTER MODEL: PDM-5-SB USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE...
