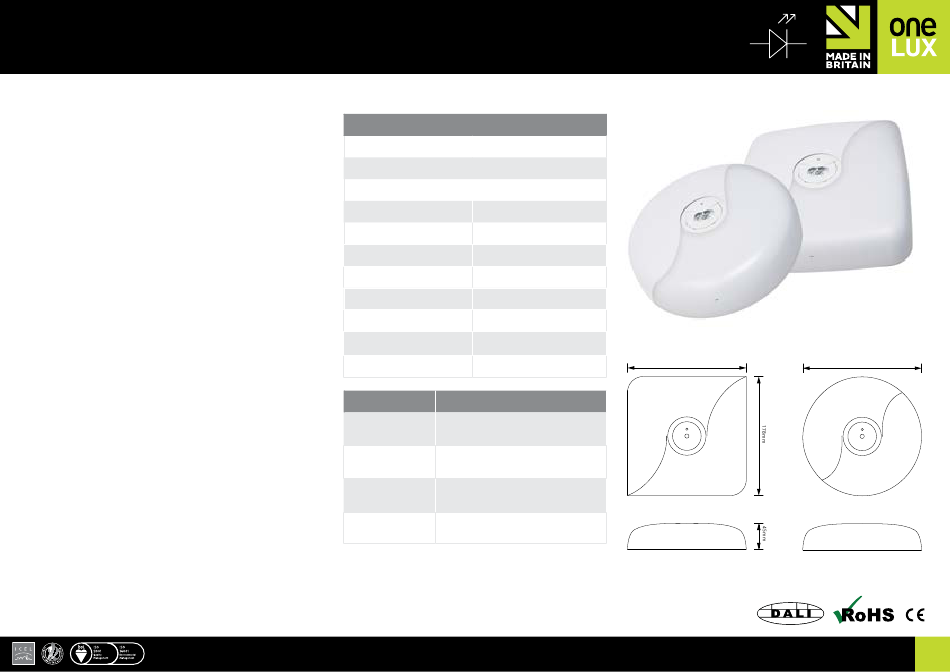

One Lux ONE-LED SOLO SURFACE Installation Manual

EMERGENCY | ONE-LED
SOLO SURFACE | NON MAINTAINED LED EMERGENCY LUMINAIRE
TM
Product description
One-LED Solo Surface is a non-maintained, self-contained LED
TM
emergency luminaire comprising an Omni-LED emergency LED driver,
rechargeable battery and a SELV LED lamp.
Its compact, surface mount enclosure is available in either square or
circular design and with either stand alone or DALI Self Test capability.
The LED lamp provides constant power output of 1.5W, so maintaining
spacing throughout rated duration. The symmetrical distribution of
light gives 8m spacing from a typical 2.5m ceiling height, when using
an open area lamp head. For the most efficient spread of light along
corridors, an optional corridor lens version is available to provide
spacing of 19m from the same height.
Properties
> Universal first-fix gear tray with options for either through-ceiling,
or side conduit cable entry
> Option of either square or round stylish covers
> Optional lensed versions for corridor applications
> Also available with Self-Test and DALI capability
> Allows manual emergency testing/ Self-Test interaction with
discrete 'push to test' lamp bezel for /DST versions
> Built-in charge indicator LED on lamp head
> Incorporates 3 x 1.8Ah NiCd high temperature cells as standard or
2 x 4Ah NiMH for Self-Test DALI versions.
> Driver complies with: EN61347-1, EN61347-2-7, EN55015,
EN61000-3-2, EN61547
> Luminaire designed to conform to EN60598-2-22
> Suitable for installations to EN50172
> Constant current battery charger
> Deep discharge protection (DDP) to protect cells from over
discharge
> Pre-wired for simple installation
Issue-F Jan 2021
Product specifications may be subject to change without prior notice.
TM
Technical Data
Input Supply Voltage
Supply Frequency
Minimum Emergency Output
Maximum Spacing (2.5m ceiling)
Battery Type
Ambient Temperature Range
Battery Charge Time
Earth Leakage Current
IP Rating
Weight
Standard Pack Quantities
Model Number
OLS/C/NM3
OLS/C/NM3/CL
OLS/S/NM3
OLS/S/NM3/CL
For DALI Self-Test versions add '/DST' to the model numbers above.
230V +/- 10%
50/60 Hz
188lm Open Area/ 155lm Corridor
8m Open Area/ 19m Corridor
2.4V 4Ah NiMH/ 3.6V 1.8Ah NiCd
10-35°C
24 Hours
<0.5mA
IP20
400g
10
Description
Circular with 'Open area' light distribution
Circular with 'Corridor' light distribution
Square with 'Open area' light distribution
Square with 'Corridor' light distribution
178mm 178mm Diameter
www.one-lux.com
1
