Garland M10G BP Series Installation Manual

To deploy the M10GxxBP modular tap system into your network, simply:
 Carefully unpack and inspect the tap modules and system chassis.
 Insert and fully seat the M10GxxBP modules into the M10Gxxxx chassis and secure modules using both screws.
 Install the tap and chassis assembly into any available 1U slot of a network rack and secure it with rack mount screws.
 Connect the power supply to the M10GxxBP and plug it into an available power source and turn on the power switch. Note:
 Utilizing the CLI or GUI, configure the M10GxxBP for the operating mode of your choice (default is bypass mode).
 Remove the power supply to the M10Gxxxx chassis temporarily.
 Using standard Ethernet cables, connect NETWORK ports [A] and [B] of the M10GxxBP between the two live network devices where you would otherwise deploy an inline
appliance or sensor (for example: IPS or DLP). Verify network traffic is flowing, confirming that network cabling is correct.
 Connect MONITOR ports [A] and [B] to the inline IPS/DLP appliance or other tools for traditional breakout or aggregated traffic monitoring.
 Connect the power leads to the M10Gxxxx chassis power supplies and plug it into an available power source. Turn on the chassi s power switch. Note:
LCD screen is normal.
Notes: * Fiber is always 10Gbps speed. Other operating modes may be desired for monitoring and may be configured using the CLI or G UI.
* If you wish to replace one of the modules in a chassis without shutting the power to the entire chassis, you need to remov e power to the module that you wish to replace
through the CLI using the power_off command. See Sub-paragraphs 6.56.8 and 6.56.9 on page 69 of the User Guide.
Fiber Active Bypass Modules
AC Power Input
Pg 1
G N D PO S N EG
DC Power Input

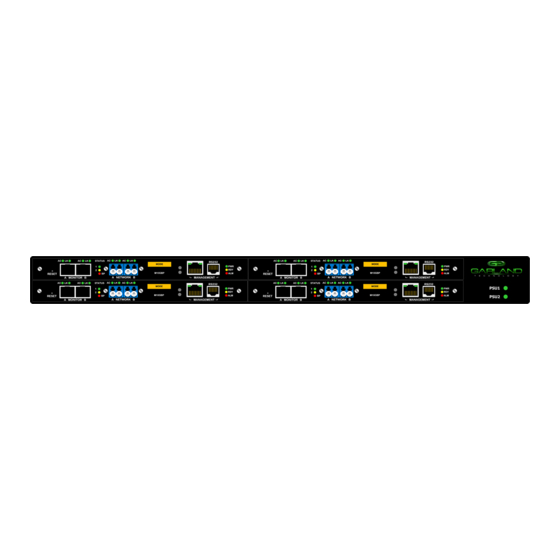

M10GxxBP Series Modular Tap
Installation Guide
A VLAN message on the LCD screen is normal.
A VLAN message on the
IP & Serial Management
Ver 2.2.1
