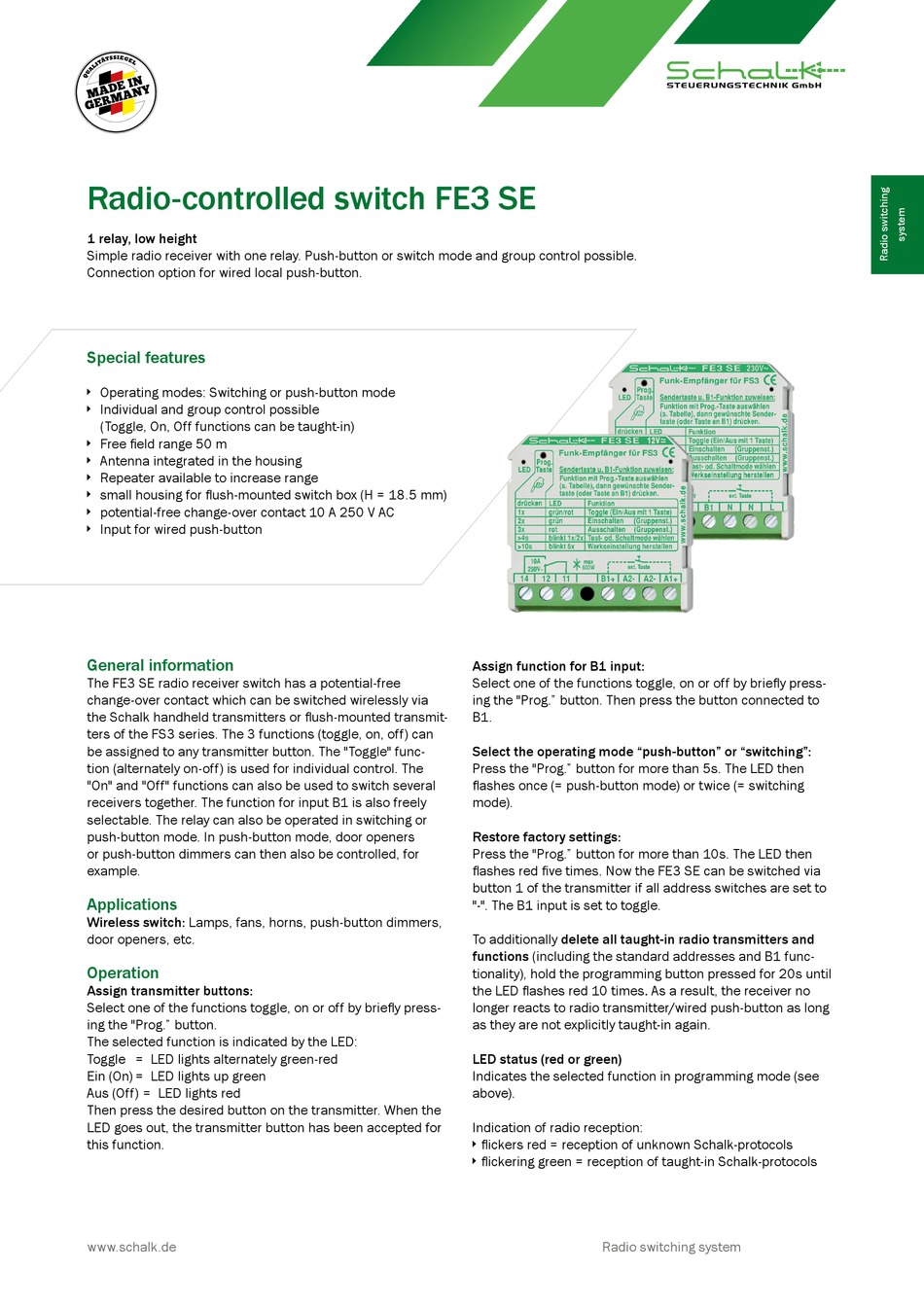

Radio-controlled switch FE3 SE
1 relay, low height
Simple radio receiver with one relay. Push-button or switch mode and group control possible.
Connection option for wired local push-button.

Special features

Ì
Operating modes: Switching or push-button mode
Ì
Individual and group control possible
(Toggle, On, Off functions can be taught-in)
Ì
Free field range 50 m
Ì
Antenna integrated in the housing
Ì
Repeater available to increase range
Ì
small housing for flush-mounted switch box (H = 18.5 mm)
Ì
potential-free change-over contact 10 A 250 V AC
Ì
Input for wired push-button

General information

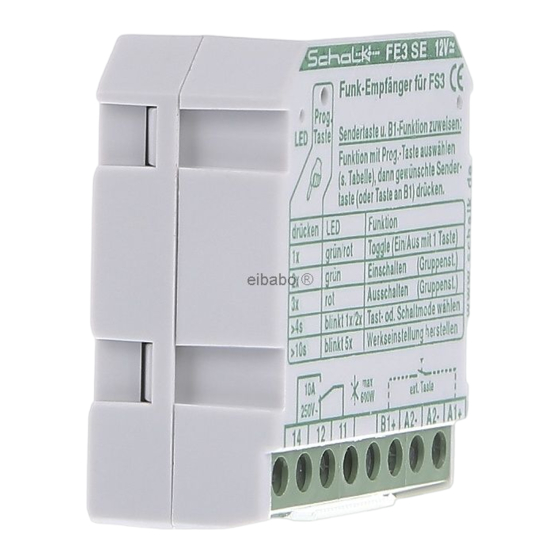

The FE3 SE radio receiver switch has a potential-free
change-over contact which can be switched wirelessly via
the Schalk handheld transmitters or flush-mounted transmit-
ters of the FS3 series. The 3 functions (toggle, on, off) can
be assigned to any transmitter button. The "Toggle" func-
tion (alternately on-off) is used for individual control. The
"On" and "Off" functions can also be used to switch several
receivers together. The function for input B1 is also freely
selectable. The relay can also be operated in switching or
push-button mode. In push-button mode, door openers
or push-button dimmers can then also be controlled, for
example.

Applications

Wireless switch: Lamps, fans, horns, push-button dimmers,
door openers, etc.

Operation

Assign transmitter buttons:
Select one of the functions toggle, on or off by briefly press-
ing the "Prog." button.
The selected function is indicated by the LED:
Toggle = LED lights alternately green-red
Ein (On) = LED lights up green
Aus (Off) = LED lights red
Then press the desired button on the transmitter. When the
LED goes out, the transmitter button has been accepted for
this function.
www.schalk.de
Assign function for B1 input:
Select one of the functions toggle, on or off by briefly press-
ing the "Prog." button. Then press the button connected to
B1.
Select the operating mode "push-button" or "switching":
Press the "Prog." button for more than 5s. The LED then
flashes once (= push-button mode) or twice (= switching
mode).
Restore factory settings:
Press the "Prog." button for more than 10s. The LED then
flashes red five times. Now the FE3 SE can be switched via
button 1 of the transmitter if all address switches are set to
"-". The B1 input is set to toggle.
To additionally delete all taught-in radio transmitters and
functions (including the standard addresses and B1 func-
tionality), hold the programming button pressed for 20s until
the LED flashes red 10 times. As a result, the receiver no
longer reacts to radio transmitter/wired push-button as long
as they are not explicitly taught-in again.
LED status (red or green)
Indicates the selected function in programming mode (see
above).
Indication of radio reception:
Ì
flickers red = reception of unknown Schalk-protocols
Ì
flickering green = reception of taught-in Schalk-protocols
Radio switching system
