Summary of Contents for Catapult VECTOR T7

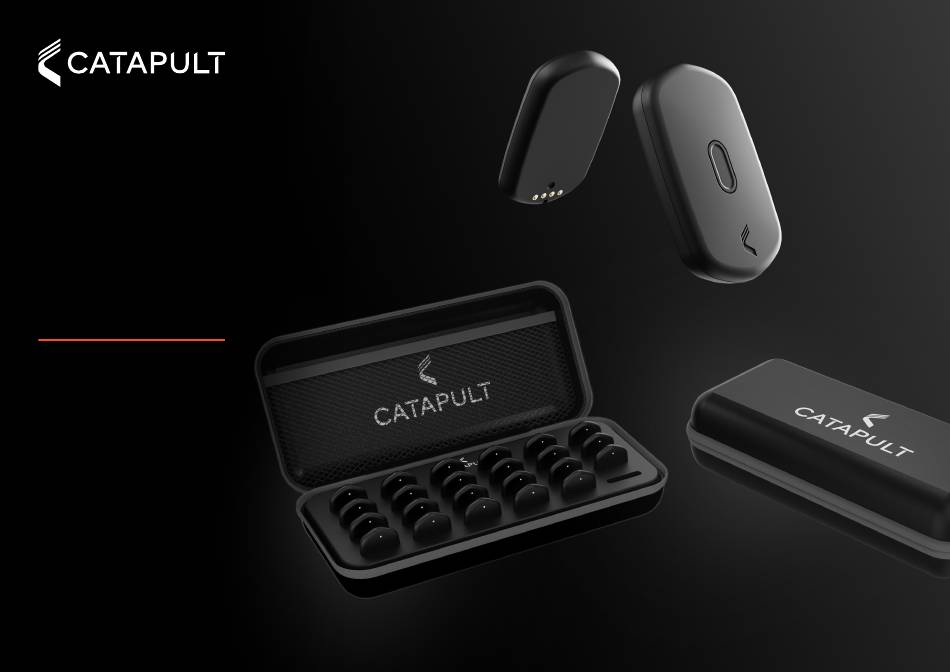

- Page 1 VECTOR T7 QUICK START GUIDE www.catapultsports.com...
-
Page 2: Battery Status
The device turns off automatically when placed in the dock while the dock is turned on. DEVICE PLACEMENT DURING SESSION The device should be worn with LED’S at top and Catapult logo at the bottom when placed in either vest or waist pouch. UWB WIRELESS STATUS Docking Pins •... - Page 3 T7 DOCK CHARGING DEVICES Insert each device into a slot in the dock. Connect the dock to a power source using the power adapter provided. The battery status indicator on the device will illuminate red when it is charging, and green when it is fully charged. Devices will not charge when the dock is running on battery CHARGING THE DOCK 1.
- Page 4 T7 RECEIVER Battery Indicator TURNING THE RECEIVER ON Network Indicator Press and hold the power button until status indicators flash green. The battery indicator will be solid when fully powered on. If the battery indicator is red, the Power Button receiver battery is running low and charging is advised.
- Page 5 6. Start a new activity. Ensure the Device Type selected is Inertial (No Position Data). Turn T7 devices on and distribute to assigned athletes. Ensure the Catapult Logo is at the bottom and facing out, relative to the Athlete’s back.
- Page 6 5. Map Devices to Athletes in OpenField. 6. Start a new activity. Ensure the Device Type selected is LPS (Clearsky). Turn T7 devices on and distribute to assigned athletes. Ensure the Catapult Logo is at the bottom and facing out, relative to the athlete’s back. www.catapultsports.com www.catapultsports.com...
- Page 7 UNLEASH POTENTIAL www.catapultsports.com...
