F-PWRWV-P / F-PWRWV-Y / F-PWRWV-G / F-PWRWV-C
• FOR SAFETY REASONS
• NEVER
exercise alone in the water
• DO NOT
allow children to use the lift without adult supervision
• OPTIMAL
use in water depth of 3.5 to 5 feet (1 to 1.5 meters.)
READ CAREFULLY
Check entire box and all packing
materials for parts. Before beginning
assembly, read the instructions and
identify parts using the figures and
parts listed in this document.
It is critical that all parts be carefully
inspected prior to installation. If any
damage occurred in transit, Aqua Creek
Products, LLC must be notified within
three days of receipt of unit.
Proper installation cannot be
overstressed, as an improper
installation voids Aqua Creek's warranty
and may affect the safety of the user.

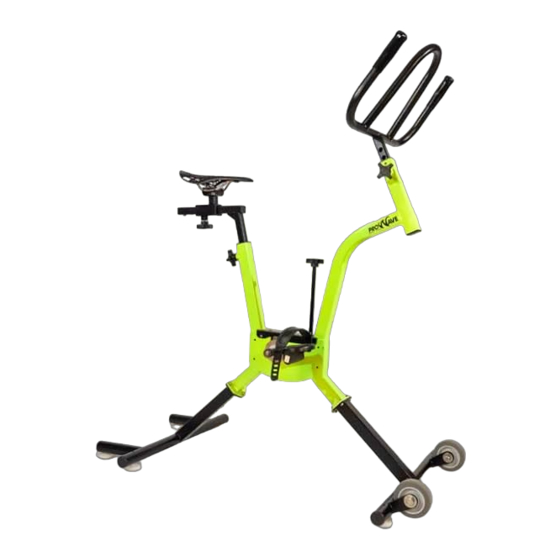

PROWAVE POOL BIKE
USE THIS MANUAL FOR PART #'s:
CATALOG NO. F-PWRWV
MANDATORY
LEAVE THIS MANUAL WITH OWNER
Read and follow all instructions.
Bike safety can only be ensured if
the bike is installed and operated
according to these instructions.
Aqua Creek Products, LLC
9889 Garrymore Lane
Missoula, MT 59808
Toll Free: (888) 687-3552
Local/Intnl: (406) 549-0769
www.aquacreek.com
12/19/2022 10:36:35 AM PAGE - 1
Advertisement
Summary of Contents for aqua greek products F-PWRWV Series
- Page 1 PROWAVE POOL BIKE CATALOG NO. F-PWRWV USE THIS MANUAL FOR PART #’s: F-PWRWV-P / F-PWRWV-Y / F-PWRWV-G / F-PWRWV-C • FOR SAFETY REASONS • NEVER exercise alone in the water • DO NOT allow children to use the lift without adult supervision •...
-
Page 2: Product Components
Aqua Creek Products PRODUCT COMPONENTS WL - 1/4" LOCK WASHER PART NO. INV01182 BB - 1/4"-20X1/2" BUTTON HEAD BOLT PART NO. INV00345 DETAIL A SCALE 1 : 4 DETAIL C SCALE 1 : 4 ADJUSTMENT KNOB PART NO. INV02878 DETAIL B SCALE 1 : 4 PROWAVE POOL BIKE - SEE CHART ITEM PART NO. -
Page 3: Product Assembly
Aqua Creek Products PRODUCT ASSEMBLY FIGURE 01 BS - 1/4"X3/8"-#10 SHOULDER BOLT PART NO. INV00460 WF - #10 FLAT WASHER PART NO. INV01172 NN - #10-24 NYLOCK NUT PART NO. INV00736 DETAIL D ASSEMBLY - MAIN FRAME SCALE 1 : 4 Step 01: Attach the front and rear base assemblies to the ASSEMBLY - REAR BASE... - Page 4 Aqua Creek Products PRODUCT ASSEMBLY ASSEMBLY - PEDAL RIGHT DETAIL E SCALE 1 : 6 ASSEMBLY - PEDAL LEFT Step 03: Attach the pedals to the bike using the supplied 5/16"-18 hex bolts, lock washers and flat washers. See FIGURE 03 and DETAIL E NOTES: Viewing from as if sitting on the bike, be sure to the right pedal is being installed on the right side of the bike and the left pedal on the left side of the bike! Installing them backwards could lead to the pedal unthreading and breaking off!
- Page 5 Aqua Creek Products PRODUCT USE The ProWave Bike is designed for use in and out of the water. To use in water, use the wheels at the front of the bike to roll the bike down the wall into the water. Optimal water depth is 3 1/2 to 5 feet (1 to 1.5 meters).
- Page 6 Aqua Creek Products PRODUCT USE 12/19/2022 10:36:35 AM PAGE - 6...
- Page 7 Aqua Creek Products PRODUCT USE 12/19/2022 10:36:35 AM PAGE - 7...
- Page 8 Aqua Creek Products PRODUCT USE NOTE: Bike may not resemble your exact model. The same exercises can be done on all Aqua Creek bikes. STANDARD RIDE RELAXED RIDE Rider is sitting on the seat with hands Rider is sitting on the seat with gripping the handlebars.
- Page 9 Aqua Creek Products PRODUCT USE CHEST DIP ABDOMINAL CRUNCH Rider is behind the bike holding the seat, Rider is on seat with feet hooked under lifts legs up and slowly lowers the handlebars. Lean back until back of themselves until their chest hits the seat head hits the water and then return to and then pushes themselves back up.
-
Page 10: Product Care
Aqua Creek Products PRODUCT CARE PROPER CARE NOTES: • Use only fresh water to wash your bike. Do not wash with pool water. • Use only clean, soft, non-abrasive cloths to wipe down your bike. • Remove bike from pool after each use and wash down. •... -
Page 11: Warranty
Aqua Creek Products LIMITED THREE (3) YEAR WARRANTY Aqua Creek Products, LLC (a.k.a. Aqua Creek) warrants to the original end user purchaser that products manufactured by Aqua Creek, when properly installed in accordance with assembly and installation instructions and properly used and maintained, shall be free from defects in material and workmanship for a period of three (3) years from the date of original purchase, provided that Aqua Creek receives prompt notice in writing of any defect or failure and satisfactory proof thereof, with the following exceptions: Exceptions:...
