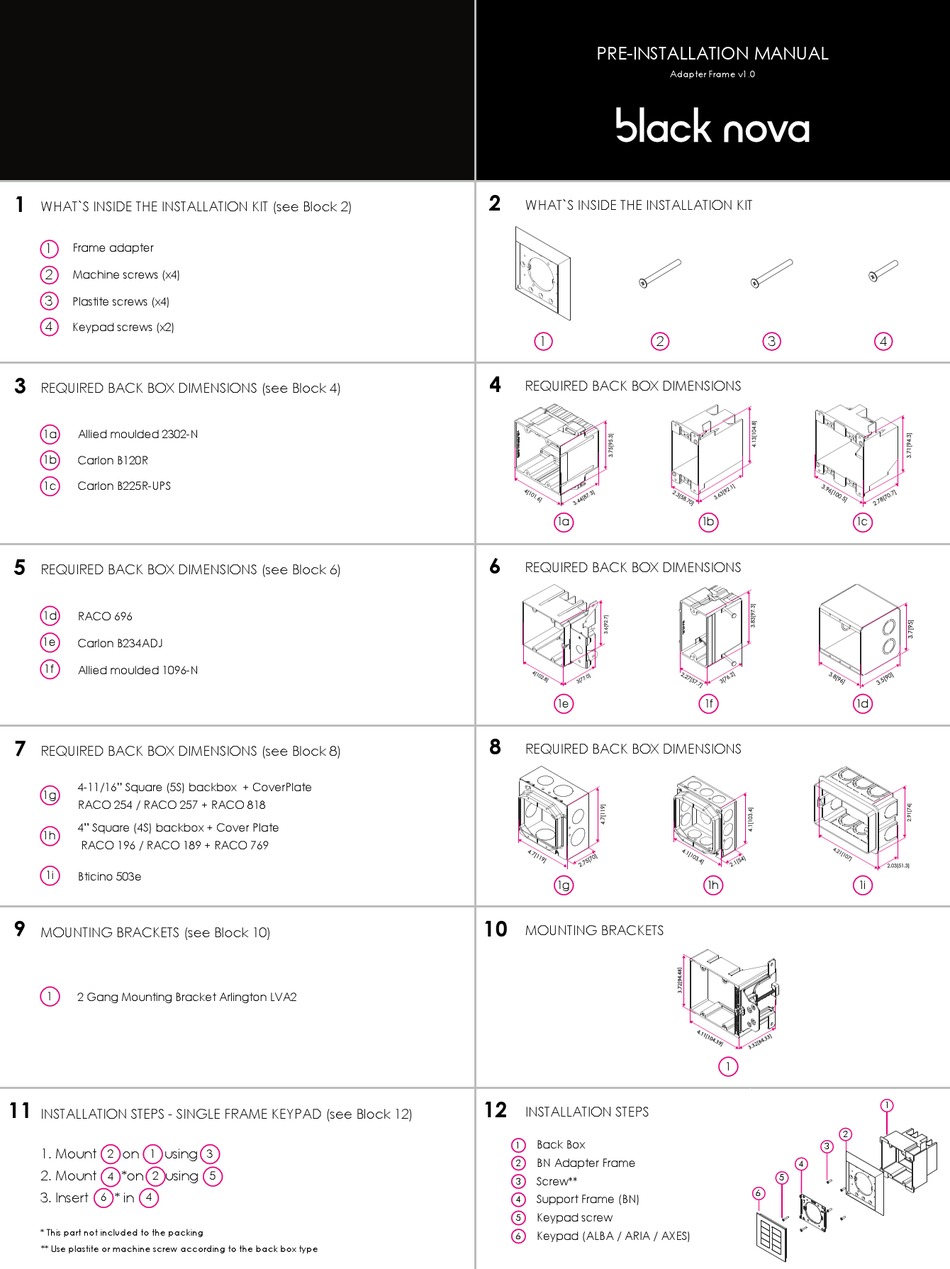

Black Nova Adapter Frame v1.0 Preinstallation Manual

1
WHAT`S INSIDE THE INSTALLATION KIT (see Block 2)
1
Frame adapter
2
Machine screws (x4)
3
Plastite screws (x4)
4
Keypad screws (x2)
3
REQUIRED BACK BOX DIMENSIONS (see Block 4)
1a Allied moulded 2302-N
1b Carlon B120R
1c Carlon B225R-UPS
5
REQUIRED BACK BOX DIMENSIONS (see Block 6)
1d
RACO 696
1e
Carlon B234ADJ
1f
Allied moulded 1096-N
7
REQUIRED BACK BOX DIMENSIONS (see Block 8)
4-11/16" Square (5S) backbox + CoverPlate
1g
RACO 254 / RACO 257 + RACO 818
4" Square (4S) backbox + Cover Plate
1h
RACO 196 / RACO 189 + RACO 769
1i
Bticino 503e
9
MOUNTING BRACKETS (see Block 10)
1
2 Gang Mounting Bracket Arlington LVA2
11
INSTALLATION STEPS - SINGLE FRAME KEYPAD (see Block 12)
1. Mount on using
2 1
2. Mount *on using
4 2
3. Insert * in
6 4
* This part not included to the packing
** Use plastite or machine screw according to the back box type
3
5
PRE-INSTALLATION MANUAL
2
WHAT`S INSIDE THE INSTALLATION KIT
1 2
4
REQUIRED BACK BOX DIMENSIONS
1a
6
REQUIRED BACK BOX DIMENSIONS
1e
8
REQUIRED BACK BOX DIMENSIONS
1g
10
MOUNTING BRACKETS
12
INSTALLATION STEPS
Back Box
1
BN Adapter Frame
2
Screw**
3
Support Frame (BN)
4
Keypad screw
5
Keypad (ALBA / ARIA / AXES)
6
Adapter Frame v1.0
3
1b
1f
1h
1
2
3
4
5
6
4
1c
1d
1i
1
