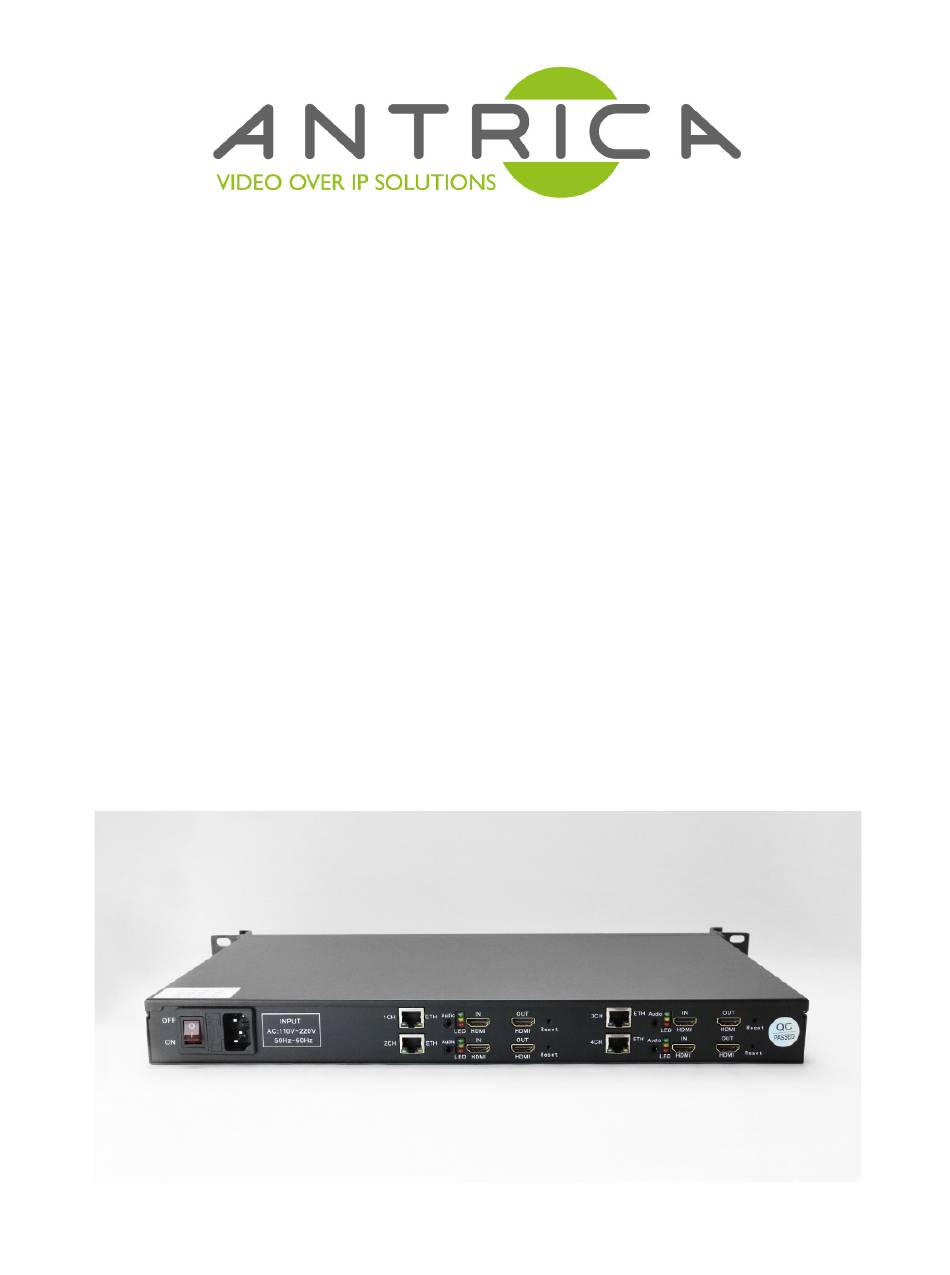

- Page 1 ANT-2014 / 2054 4 x HDMI / 4 x HD-SDI 1080P60 STREAMING ENCODER RTSP, HTTP, MPEG-TS & RTMP User Manual V1.0 ANT-2014 / 2054 User Manual...
- Page 2 12.0 Main Stream OSD settings: On screen text and images…..Page 17 13.0 Colour and Brightness adjustments…........Page 18 14.0 Image filters –settings for Noise sharpness and other filters…..Page 19 15.0 System Settings : Firmware , Reboot, System Reset etc…..Page 20 ANT-2014 / 2054 User Manual...
- Page 3 ● Make sure the AC power is unplugged in case of changing cables ● Only Antrica staff are approved to remove the case else the warranty will be invalid. ● Ensure good ventilation when the device is in operation as this may cause damage to the device due to overheating.
- Page 4 HDSDI version. In HDSDI version the HDMI is replaced with HDSDI connector. ANT-2014 HDMI ENCODER is a low cost , high performance and easy-to-use 4 x HDMI video streaming device for RTSP HTTP RTMP and MPEG-TS streaming.
-
Page 5: Main Features
➢ Superior video quality at ultra-low bitrates, generally video bitrate advised SD about 680kbps, 720p about 1mbps,1080p about 3mbps for lowest bitrate ➢ Supporting CBR and VBR mode ➢ WEB User Interface / Management ➢ Easy-to-Use System Management ➢ API Http SDK available ANT-2014 / 2054 User Manual... -
Page 6: Technical Specification
ONVIF Configuration Interface Web browser and SDK available Upgrading Network based firmware upgrade via web interface or SDK ENVIRONMENT Dimensions 490mm x290mm x 44mm Weight 3.3kg Temperature 0-40c ambient Power 12 volt supply Power Consumption ANT-2014 / 2054 User Manual... -
Page 7: Signal Connections
Please note in this manual the pictures shown are the HDMI version – all instructions remain the same for HDSDI version. In HDSDI version the HDMI is replaced with HDSDI connector. Ethernet Interface RJ45 Audio Input Analogue Jack Video Input –HDMI IN/OUT RESET AC Power ANT-2014 / 2054 User Manual... - Page 8 To change the IP address go to Network Settings and change the IP address to the required IP address . Once changed this will require a Reboot for the new IP address to be set. Either go to SYSTEM and click REBOOT or physically power down and power up the device ANT-2014 / 2054 User Manual...
- Page 9 Video Parameters: Will tell you what resolution and frame rate is set Audio parameters: Will tell you what sample rate is set and number of channels (1/2) Hardware Status: XXXXXXXX STATUS > 2 STATUS This section defines the status of the Secondary Stream exactly as above for the Primary Stream ANT-2014 / 2054 User Manual...
- Page 10 MAC: The MAC address of this encoder (unique address) Click Apply after any changes NOTE! When changing an IP address setting, a REBOOT is required for settings to be applied. This may affect all 4 encoders in this unit ANT-2014 / 2054 User Manual...
- Page 11 9.0 HDMI / SDI MAIN > MAIN On this page you can see the settings as they apply to the HDMI input such as Streaming type, encoding settings such as bit rate frame rate etc. More details are described on the following 4 pages: ANT-2014 / 2054 User Manual...
- Page 12 Constraining the bandwidth may result in poorer video when scenes are changing fast. H.264 Level: Base, Main or High Profile encoding can be selected Encoding Frame Rate: sets the stream frame rate regardless of input frame rate 5-60 fps range Click Apply after any changes ANT-2014 / 2054 User Manual...
- Page 13 PMT ID: When using MPEG-TS according to DVB rules the PMT PID can be set here. Transport ID : This is the MPEG-TS Transport ID which can be set by the user. Stream ID : This is the MPEG-TS Stream ID setting Click Apply after any changes ANT-2014 / 2054 User Manual...
- Page 14 RTSP Port: change to the desired RTSP port: usually 554 but any port from 1-65535 can be chosen. Avoid conflicts with ports being used for other purposes. RTSP TCP: You can choose to stream over TCP or UDP Click Apply after any changes ANT-2014 / 2054 User Manual...
- Page 15 RTMP User Name/ Password: Add user name password if used RTMP app name: Add the app RTMP stream name: Example : rtmp://video.mudu.tv/8eano/zvrut9 RTMP Server IP： video.mudu.tv RTMP app name： 8eano RTMP stream name: zvrut9 Click Apply after any changes ANT-2014 / 2054 User Manual...
- Page 16 There may be some limitations when the primary stream is set to max resolution frame rate as CPU loading will be at its peak. Only one stream type can be selected as per the MAIN settings RTSP RTMP HTTP or MPEG-TS (Unicast and multicast section refers to MPEG-TS) Click Apply after any changes ANT-2014 / 2054 User Manual...
- Page 17 Audio Codec: Choose AAC or MP3 (Note RTSP can be AAC or G711 PCM) AAC Type : Choose LC or HE here Resample: 32000 - 192000 resampling or disable. RTSP Audio: Select G711 (ONVIF ) or AAC Audio Gain: Adjust from +10 to -20dB Click Apply after any changes ANT-2014 / 2054 User Manual...
- Page 18 Font Size: Size of Font to be used Alpha: This is the transparency of the logo , the lower the number the more transparent the logo will become. Font Colour: e.g 0xFFFFFFFF Text: write the OSD text required here Click Apply after any changes ANT-2014 / 2054 User Manual...
- Page 19 These settings allow the user to adjust Brightness, Contrast Hue and Saturation of the image being streamed Brightness; Set from 0-100 (100 is maximum ) Contrast; Set from 0-100 (100 is maximum ) Hue; Set from 0-100 (100 is maximum ) Saturation; Set from 0-100 (100 is maximum ) Click Apply after any changes ANT-2014 / 2054 User Manual...
- Page 20 SHARPENING: Enables a sharpening filter for improving edge detail SHARPENING STRENGTH: Allows the user to set up the level of sharpening FILTERING: OPEN /CLOSE Leave Open this feature is not supported currently FILTER A: 0 FILTER B: 0 FILTER C: 0 Click Apply after any changes ANT-2014 / 2054 User Manual...
- Page 21 ONCE YOU CLICK UPDATE DO NOT TURN OFF THE SYSTEM UNTIL THE UNIT REBOOTS OR WAIT 5 MINUTES BEFORE DEPOWERING. FAILURE TO FOLLOW THIS STEP WILL RESULT IN THE UNIT NO LONGER FUNCTIONING AND WILL NEED TO BE SENT BACK TO ANTRICA. ANT-2014 / 2054 User Manual...
