Instructions for GT16 2.4GHz remote
controller
DESCRIPTION
Gt16 is a set of multifunctional 2.4 GHz remote control, which includes four channel
transmitter. It is very suitable for vehicle model.
SPECIFICATIONS
• Transmitter Model：GT16
• Voltage Range：4.4V-8.4V
• Transmitter Frequency：2.4G （FHSS）
• FHSS Output Power：<100Mw
• Remote control distance: >120m
• Power Supply：4 Cell AA Batteries
• Configuration mode: Knob
• Weight：205g （Without batteries）
• Receiver Model：FSH9206
• Voltage Range：5.0V-8.4V
• Transmitter Frequency：2.4G （FHSS）
• Voltage Range：2S Lipo or 5-9S NiMH
• Receiver frequency: 2.4G (FHSS)
• Size / Weight: 37*30*17mm / 40g

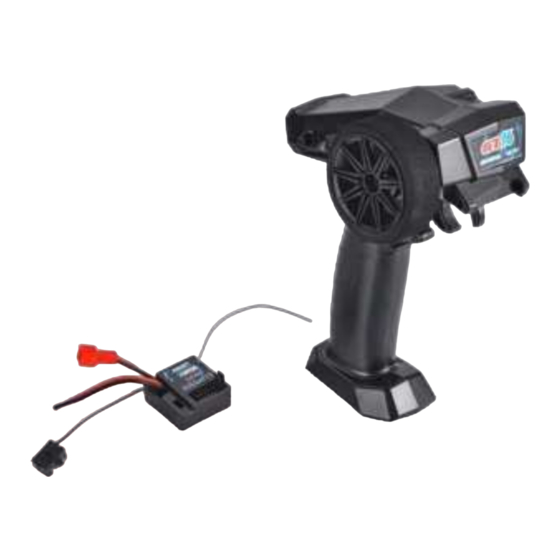

Appearance of GT16 remote control system
Advertisement
Table of Contents
Summary of Contents for FEISHEN GT16
- Page 1 Instructions for GT16 2.4GHz remote controller DESCRIPTION Gt16 is a set of multifunctional 2.4 GHz remote control, which includes four channel transmitter. It is very suitable for vehicle model. SPECIFICATIONS • Transmitter Model：GT16 • Voltage Range：4.4V-8.4V • Transmitter Frequency：2.4G （FHSS）...
- Page 2 Functions of GT16 transmitter: 4-channel transmitter, accelerator channel, direction channel, AUX2 key channel and aux1 three-stage switch; st-trim, th-dr, st-dr,st-rev, th-epa and st-epa can be set; EPA setting function Trigger conditions: Start + back + turn right Function Description: Take setting forward EPA as an example.
- Page 3 Functions of GT16 2in1 Appearance of GT16 2in1 Frequency matching mode: Step1: after the receiver is powered on for 3S, the indicator light of the receiver flashes quickly, indicating that it enters the frequency matching mode; Step2: When transmitter power off,press and hold the power button over 3s.
- Page 4 F=Forward, B=Brake, RReverse The“F/B/R” mode indicates the vehicle can go forward, backward and brake. This mode uses “Double-click” method to make the vehicle reverse. When moving the throttle stick from the neutral zone to backward zone for the 1st time, the ESC begins to brake the motor and the motor slows down and stop, so the backward action is NOT performed immediately.
- Page 5 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
