Sonos BRIDGE Manual

Introduction

THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT NOTICE.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including but not limited to photocopying, recording, information retrieval systems, or computer network without the written permission of Sonos, Inc.
Sonos and all other Sonos product names and slogans are trademarks or registered trademarks of Sonos, Inc. Sonos Reg. U.S. Pat. & Tm. Off. Sonos products may be protected by one or more patents. Our patent-to-product information can be found here:
sonos.com/legal/patents

iPhone®, iPod®, iPad® and iTunes® are trademarks of Apple Inc., registered in the U.S. and other countries.
Windows® is a registered trademark of Microsoft Corporation in the United States and other countries.
Android™ is a trademark of Google, Inc.
Sonos uses MSNTP software, which was developed by N.M. Maclaren at the University of Cambridge.
© Copyright, N.M. Maclaren, 1996, 1997, 2000; © Copyright, University of Cambridge, 1996, 1997, 2000.
All other products and services mentioned may be trademarks or service marks of their respective owners.
©2004-2015 by Sonos, Inc. All rights reserved.

Sonos BRIDGE

The BRIDGE is an accessory that plugs into your home router to create a dedicated wireless network exclusively for your Sonos system—providing you with reliable wireless performance no matter how large your home or how many WiFi devices you use.

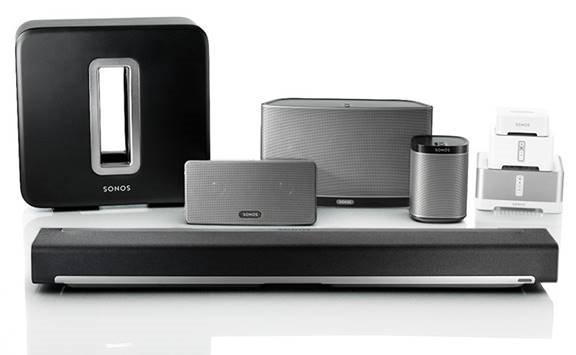

When Should I Use a BRIDGE?

• If your WiFi network is already in high demand with streaming video, gaming, and web surfing, connect a BRIDGE to your router to establish a separate wireless network exclusively for your Sonos speakers.
• If you want to strengthen the wireless performance of your Sonos system, connect a BRIDGE to extend wireless coverage to all of the rooms where you want music.


New to Sonos?

It takes just a few steps to get your Sonos system up and running (the steps below are fully explained in the QuickStart Guide packaged with your BRIDGE) —

• Connect the BRIDGE to your router using an Ethernet cable (supplied).
• Place other Sonos products in the room of your choice.
• Download and install the Sonos app and then follow the prompts to set up your Sonos system.

Once you've set up your music system, you can add additional Sonos products any time.

Adding to an existing Sonos system?

Sonos can be easily expanded room by room. If you are adding this BRIDGE to an existing Sonos music system, you can turn directly to "Adding to an Existing Sonos System".

Your Home Network

To access Internet music services, Internet radio, and any digital music stored on your computer or Network-Attached Storage (NAS) device, your home network must meet the following requirements:

Home network requirements

Note: Your network must have a high-speed Internet connection, as the Sonos system is designed to provide you with free, online software updates. Your Sonos system must be registered to receive these updates so be sure to register during the setup process. We do not share your e-mail address with other companies.

• High-speed DSL/Cable modem, or fiber-to-the-home broadband connection for proper playback of Internet-based music services. (If your Internet service provider only offers Satellite Internet access, you may experience playback issues due to fluctuating download rates.)
• If your modem is not a modem/router combination and you want to take advantage of Sonos' automatic online updates, or stream music from an Internet-based music service, you must install a router in your home network.If you do not have a router, purchase and install one before proceeding. If you are going to use the Sonos Controller App on an Android™ or iOS device, or you are setting up Sonos wirelessly, you will need a wireless router. Please visit our website at http://faq.sonos.com/appsfor more information.

Note: Sonos communicates over a 2.4GHz home network supporting 802.11 b/g wireless technology. 5GHz networks are not supported in a completely wireless Sonos setup.

• Connect a Sonos BRIDGE, BOOST™ or player to your router if:
  • You have a larger home where the WiFi performance isn't reliable and you want to strengthen the wireless performance of your Sonos system.
  • Your WiFi network is already in high demand with streaming video and web surfing and you want to create a separate wireless network exclusively for your Sonos speakers.
  • Your home network is 5GHz only (not switchable to 2.4GHz).
• For best results, you should connect the computer or NAS drive that contains your personal music library collection to your home network router using an Ethernet cable.

System requirements

• Windows® XP SP3 and higher
• Macintosh® OS X 10.7 and higher
• Compatible with iPhone®, iPod touch®, and iPad® devices running iOS 6.0 or later, certain features require higher versions of iOS
• Android 2.2 and higher, certain features require higher versions of Android

Note: For the latest system requirements, including supported operating system versions, please visit our website at http://faq.sonos.com/specs.

Adding to an Existing Sonos System

Once you've got a Sonos system set up, you can easily add more Sonos products any time (up to 32 rooms).

Note: If you purchased a Sonos BRIDGE to replace a Sonos product that is currently attached to your router, be sure to add the BRIDGE to your Sonos system (see steps below) before unplugging and moving the originally wired Sonos speaker.

1. Attach the power adapter and plug in the Sonos BRIDGE.
2. Choose one of the following options:
   • Select Add a BRIDGE or BOOST from the Manage menu on a Mac or PC.
   • Select Add a BRIDGE or BOOST from the Settings menu on a handheld controller.
     During the setup process, you will be prompted to press and release the Join button on the side of the Sonos BRIDGE.
     You may be prompted to update the rest of your Sonos system during this process.

A BRIDGE will not display on your ROOMS pane after it is set up. If you wish to change the settings for this product, choose one of the following:

• Using the Sonos Controller for PC: Select Manage -> Settings -> BRIDGE Settings.
• Using the Sonos Controller for Mac: Select Sonos -> Preferences -> BRIDGE Settings.
• Using a handheld Sonos controller: Select Settings -> BRIDGE Settings.

Thick walls, 2.4 GHz cordless telephones, or the presence of other wireless devices can interfere with or block the wireless network signals from your Sonos system. If you experience difficulty after positioning a Sonos product, try one or more of the following resolutions—relocate the Sonos product; change the wireless channel your music system is operating on; connect a Sonos product to your router if your setup is currently wireless.

Playing Music

You can use any Sonos controller to make music selections—choose a music source from the Sonos music menu on a handheld controller, or from the MUSIC pane if you are using the Sonos Controller App for Mac or PC.

Radio

Sonos includes a radio guide that provides immediate access to thousands of free Internet radio stations and broadcast programs. You can easily find radio from all over the world—music, news, and variety programming, including archived shows and podcasts.
To select an Internet radio station, simply select Radio and choose a station.

Music services

A music service is an online music store or online service that sells audio on a per-song, per audiobook, or subscription basis. Sonos is compatible with several music services - you can visit our website at www.sonos.com/music for the latest list. (Some music services may not be available in your country. Please check the individual music service's website for more information.)

If you are currently subscribed to a music service that's compatible with Sonos, simply add your music service user name and password information to Sonos as needed and you'll have instant access to the music service from your Sonos system.

1. To add a music service, touch Add Music Services from the Sonos music menu on your handheld controller.
2. Select the Sonos-compatible music service you would like to add.
3. Select Add Account, and then follow the on-screen prompts. Your login and password will be verified with the music service. As soon as your credentials have been verified, the music service displays on the Sonos music menu.

Free music service trials are available in some countries. (Please check the individual music service's website for more information.) If there is a music service trial visible on the Music Services menu, simply touch it to select. Touch Add Account -> I'm new to [music service], and then follow the prompts to activate the music trial. After the trial period is up, you will need to subscribe to the music service to keep the music playing.

Local music library

The Sonos system can play music from any computer or network-attached storage (NAS) device on your home network where you have shared music folders. During the setup process, you are guided through the process of accessing your local music library (such as your iTunes library). Over time, you may wish to add or remove folders from this list.

• To add new music folders to Sonos, touch Settings -> Manage Music Library -> Music Library Setup -> Add New Share on your handheld controller.
• To remove music folders, touch Settings -> Manage Music Library -> Music Library Setup. Touch the share you wish to remove and then select Remove Share on your handheld controller.

The Sonos system indexes your music folders so you can view your music collection by categories (such as artists, albums, composers, genres, or tracks.) If you add new music to a folder that is already indexed, simply update your music index to add this music to your Sonos music library.

• To update your music index, touch Settings -> Manage Music Library -> Update Music Index Now on your handheld controller. If you'd like your music index to update automatically each day, select Schedule Music Index Updates and then select a music index update time.

Wireless iTunes playback

You can select and play music and podcasts stored on any iPad, iPhone, or iPod touch that's on the same network as your Sonos products. Playback is perfectly synchronized, in any or every room of your home. Simply choose This iPad, This iPhone, or This iPod touch from the Sonos app on your iOS device to make audio selections and then you can use any Sonos controller to control playback.

Wireless playback from Android devices

You can select and play music stored on any Android device that's on the same network as your Sonos products. Playback is perfectly synchronized, in any or every room of your home. Simply choose This Mobile Device from the Sonos app on your Android smartphone or tablet to make audio selections and then you can use any Sonos controller to control playback.

Google Play Music (Android devices)

You can play music to your Sonos system directly from the Google Play Music app on any Android device. This feature is available for both Standard and All Access Google Play Music customers.
To play music directly from the Google Play Music app to your Sonos system, you must have both the Google Play Music app and the Sonos Controller App installed on your mobile device.
Simply open the Google Play Music app and connect to a Sonos room or room group to start the music.

Sonos BRIDGE Front

• For a complete list of status indications, please go to http://faq.sonos.com/led.

Sonos BRIDGE Back

Basic Troubleshooting

Do not open Sonos products as there is a risk of electric shock. Under no circumstances should Sonos products be repaired by anyone other than an authorized Sonos repair center, as this will invalidate the warranty. Please contact Sonos Customer Support for more information.

If a problem occurs, you can try the troubleshooting suggestions listed below. If one of these doesn't remedy the problem, or you are not sure how to proceed, please contact the Sonos Customer Support team and we'll be happy to help.

Sonos product(s) not detected during setup

• Check to make sure the power cord is properly seated.
• A network issue may be preventing the product from connecting to your Sonos system. If this is a wireless Sonos product, try moving the Sonos products closer together, or use an Ethernet cable to hard wire the product to your router temporarily to see if the problem is related to wireless interference.

If you encounter this message while a Sonos product is connected to your router, you can try the steps below to resolve this issue. If you are still experiencing problems, please contact Sonos Customer Support.

Check the firewall

Firewall software installed on the computer may be blocking the ports that Sonos uses to operate. First, disable all your firewalls and try to connect again. If this resolves the problem, you should configure your firewall to work with the Sonos Controller for Mac or PC. Please go to our website at http://faq.sonos.com/firewall for additional information. If this does not resolve the problem, you can try step 2 below.

Check the router

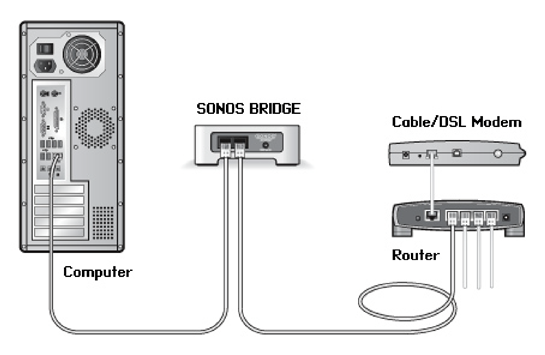

You can bypass your router's switch to determine whether there are any router configuration issues by connecting a Sonos product as shown below—in this BRIDGE configuration example, note that the BRIDGE and the computer still have Internet access:

• Be sure that your cable/DSL modem is connected to the router's WAN (Internet) port.
• Temporarily remove any other components that are wired to your network.
• Connect an Ethernet cable from the computer directly to the back of the BRIDGE, and then connect another Ethernet cable from that Sonos product directly to one of the LAN ports on your router.
• When you make a change to your network configuration, you may need to power cycle the Sonos product by unplugging the power cord, and then plugging it back in.

3. Check the wiring

Check the indicator lights on both the router and the Sonos product. The link/status lights should be lit solid, and the activity lights on the router should be blinking.

• If the link lights are not lit, try connecting to a different port on your router.
• If the link lights still do not light, try connecting a different Ethernet cable.

Sonos player is not operating properly

• If the status indicator is not lit and no sound is produced when the unit is plugged in, check to ensure the power cord is properly seated.
• If the status indicator is solid white, make sure the volume is set to a suitable level; make sure MUTE is not on; if CONNECT:AMP™, make sure external speakers are connected securely.
• If the player has suddenly stopped playing music and the status indicator is flashing orange and white, pause or unplug the player for a few minutes to allow it to cool. Check to make sure the vents are not blocked. See the Appendix for status indicator explanations.
• Check the link/activity lights on both the router and the Sonos product that is wired to your router. The link lights should be lit solid and the activity lights should be blinking.
  • If the link lights are not lit, try connecting to a different port on your router.
  • If the link lights still do not light, try using a different Ethernet cable.
• Move your Sonos controller closer to a player.
• Check to ensure there are no obstacles to impede wireless operation.
• Check your network connections.
• The Sonos player may need to be reset. Disconnect the power cord for 5 seconds, and then reconnect. Wait for the Sonos player to restart.

Not all rooms are visible, or Sonos app doesn't work in some rooms, or music stops when I use my 2.4 GHz phone
You are probably experiencing wireless interference. You can change the wireless channel your Sonos system is operating on by following the steps below.

• Using a handheld Sonos controller: From the Settings menu, touch Advanced Settings -> SonosNet Channel. Choose another SonosNet (wireless) channel from the list.
• Using the Sonos Controller App for PC: Select Settings ->Advanced from the Manage menu. On the General tab, select another wireless channel from the list.
• Using the Sonos Controller App for Mac: Select Preferences ->Advanced from the Sonos menu. On the General tab, choose another SonosNet (wireless) channel from the list.

It may take several seconds for the switch to take effect. If you have music playing, a short music dropout may occur during the wireless channel change.

I have a new router

If you purchase a new router or change your ISP (Internet service provider), you will need to restart all your Sonos products after the router is installed.

Note: If the ISP technician connects a Sonos product to the new router, you only need to restart your wireless Sonos products.

1. Disconnect the power cord from all of your Sonos products for at least 5 seconds.
2. Reconnect them one at a time, starting with the Sonos product that is connected to your router.

Wait for your Sonos products to restart. The status indicator light will change to solid white on each product when the restart is complete.

If your Sonos setup is completely wireless, you will also need to change your wireless network password. Follow the steps below:

1. Temporarily connect one of your Sonos players to the new router with an Ethernet cable.
2. From the Sonos music menu on your controller, select Settings.
3. Select Advanced Settings -> Wireless Setup.
   Sonos will detect your network.
4. Enter the password for your wireless network.
5. Once the password is accepted, unplug the player from your router and move it back to its original location.

I want to change my wireless network password

If your Sonos system is set up wirelessly and you change your wireless network password, you will also need to change it on your Sonos system.

1. Temporarily connect one of your Sonos players to your router with an Ethernet cable.
2. Choose one of the following options:
   • Using a handheld Sonos controller, select Settings -> Advanced Settings -> Wireless Setup.
   • Using the Sonos Controller App for PC, select Settings ->Advanced from the Manage menu. On the General tab, select Wireless Setup.
   • Using the Sonos Controller App for Mac, select Preferences -> Advanced from the Sonos menu. On the General tab, select Wireless Setup.
3. Enter the new wireless network password when prompted.
4. Once the password is accepted, you can unplug the player from your router and move it back to its original location.

Important Safety Information

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry soft cloth. Household cleaners or solvents can damage the finish on your Sonos products.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
8. Protect the power cable from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
9. Only use attachments/accessories specified by the manufacturer.
10. Unplug this apparatus during lightning storms or when unused for long periods of time.
11. Refer all servicing to Sonos qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cable or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
12. The Mains plug should be readily available to disconnect the equipment.
13.
    To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
14. Do not expose apparatus to dripping or splashing and do not place objects filled with liquids, such as vases, on the apparatus.

BRIDGE Status Indicators

Do not place any items on top of your Sonos product. This may impede the air flow and cause it to overheat.

Specifications

* Specifications subject to change without notice.
