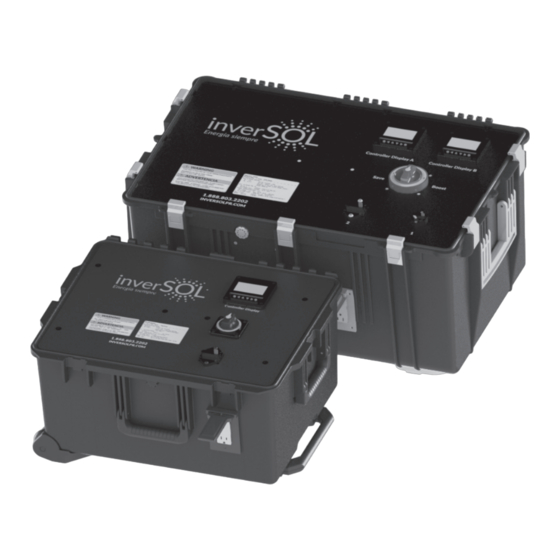

Summary of Contents for inverSOL 1500
- Page 1 inver Energía siempre USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents 2 - 3 Warnings Important Warnings and Safety Measures Introduction Hello and Welcome Component List Get to Know Your inverSOL Model Technical Specifications Features 8 - 11 Front View 1500 Rear View 1500 Front View 3000 Rear View 3000... - Page 3 Auxiliary Mode Figure Solar Controller Display Monitoring Screen Controller Display Screens Real-Time Monitoring Calculating Appliance Load How to Calculate what Appliances to Use Comparing Sample Loads Sample Appliance Pairings Estimated Average Run-time How Combining Appliances Affects Run-time Battery Maintenance Charge Maintenance Long-term Storage Recommendations &...
-
Page 4: Warnings
• Consult your physician before using with CPAP devices or other non-life support medical equipment. • Do not use any loads over 1500W for inverSOL 1500 and 3000W for inverSOL 3000 and 3000+ for risk of damage to the inverter. -
Page 5: Introduction
While both technologies use inverters to convert power to run appliances, gasoline generators may be rated for a specific load, 1500 watts, for example, and should provide power to appliances for that rated amount. Solar inverters, by contrast, provide power up to rated inverter load. This means your unit may provide less power than the inverter’s capability. -
Page 6: Component List
1 x Panel Connection Cable Surge Capacity 3000W Max 6000W Max Continuous-Load 1500W 3000W Output Max # Battery Modules Max # Additional Panels *NOMINAL. WATTAGE MAY VARY; SUBJECT TO CHANGE WITHOUT NOTICE. 6 | A Guide to Your inverSOL Unit... -
Page 7: Technical Specifications
Battery Specifications 1 x 12V Non-spillable Deep 2 x 12V Non-spillable Deep Battery Type Cycle AGM Sealed Lead Acid Cycle AGM Sealed Lead Acid NOTE: SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. A Guide to Your inverSOL Unit | 7... -
Page 8: Features
FEATURES FRONT VIEW 1500 Solar Controller Display Power Controller Circuit Breaker Handle Retractable Handle AC Output 8 | A Guide to Your inverSOL Unit... -
Page 9: Rear View 1500
Energía siempre FEATURES REAR VIEW 1500 Handle Wheels Charger Port Retractable Handle Solar Connection Port A Guide to Your inverSOL Unit | 9... -
Page 10: Front View 3000
FEATURES FRONT VIEW 3000 Solar Controller Displays A & B* Power Controller Breaker 2: “Boost” Mode Breaker 1: “Save” Mode Handle AC Output 10 | A Guide to Your inverSOL Unit... -
Page 11: Rear View 3000
Energía siempre FEATURES REAR VIEW 3000 Handle Wheels Solar Connection Port Charger port Battery Module Connection Port A Guide to Your inverSOL Unit | 11... -
Page 12: Installation
INSTALLATION Initial installation of your inverSOL generator and a brief training on how to operate the unit will be performed by a qualified technician. Refer to the Quick Installation Guide for more information related to setup. The following instructions are intended to aid in storing and then reinstallation, should that be necessary. -
Page 13: Dismantling & Storage
It is recommended that the panel(s) be stored in a safe place to minimize the possibility of damage while not in use. The cables should also be coiled and stored in a safe place until they are needed. Figure A A Guide to Your inverSOL Unit | 13... -
Page 14: Modular Expansion Of The 3000
MODULAR EXPANSION OF THE 3000 INCREASING UNIT’S POWER CAPACITY 1500 MODEL 3000 MODEL The 1500 is not modular. Battery modules cannot be The 3000 accommodates expansion to the system added to these units. after purchase. Panels and/or batteries can be added for increased power. -
Page 15: Connecting Additional Panels
ILLUSTRATING PROPER PANEL CONNECTION Panel Panel Panel Panel inverSOL *The above diagram shows attaching panels in series. Panel 1 and 2 comprise a group; Panel 3 and 4 comprise a second group. A Guide to Your inverSOL Unit | 15... -
Page 16: Battery Module
BATTERY MODULE Circuit Breaker FRONT VIEW Charger port Battery Wire Exits REAR VIEW Battery Module Connection Port 16 | A Guide to Your inverSOL Unit... -
Page 17: Expanding The 3000 Model
DIAGRAM TO ILLUSTRATE EXPANSION Included in Standard Model Available Upgrade (Additional Cost) Cables Panel Panel Panel Panel Connection Ports inverSOL3000 External External External External Battery Battery Battery Battery Module Module Module Module A Guide to Your inverSOL Unit | 17... -
Page 18: System Operation
To do this, rotate the Power Controller into OFF mode, and then simply plug the AC cord from the battery module into a working AC outlet. Auxiliary mode will keep the batteries fully charged in preparation for the next time they are required. 18 | A Guide to Your inverSOL Unit... -
Page 19: Figure
Energía siempre POWER CONTROLLER CONTROL PANEL Figure B Figure C A Guide to Your inverSOL Unit | 19... -
Page 20: Power Controller 3000 Model
To do this, rotate the Power Controller into OFF mode, and then simply plug the AC cord from the battery module into a working AC outlet. Auxiliary mode will keep the batteries fully charged in preparation for the next time they are required. 20 | A Guide to Your inverSOL Unit... -
Page 21: Figure
Energía siempre POWER CONTROLLER CONTROL PANEL Figure D Figure E A Guide to Your inverSOL Unit | 21... -
Page 22: Solar Controller Display
SYSTEM OPERATION SOLAR CONTROLLER DISPLAY inverSOL units come with built-in solar controllers and a user-friendly MT50 display to view the system’s status. The user can cycle through the different screens on display. The controller screen will display current output from the... -
Page 23: Monitoring Screen
Critically Low 17.5V 13.8V 13.8V 15.2A 5.2A 10.0A Voltage Status Icon Normal Voltage, Low Voltage NOTE: In manual mode, pressing the “OK” button will switch the load status between “ON” and “OFF”. A Guide to Your inverSOL Unit | 23... -
Page 24: Controller Display Screens
CONTROLLER DISPLAY SCREENS REAL-TIME MONITORING There are 14 pages that users can access to review the system’s operation. Use the arrow buttons on the Solar Controller Display to cycle through the pages. 24 | A Guide to Your inverSOL Unit... -
Page 25: Calculating Appliance Load
LED Lightbulb Television Mobile Phone Sandwich Maker Running Watts 50–100 50–150 5–12 100–150 5–10 800–1500 Iron Hair Straightener Air Conditioner Power Tools Blender Hair Dryer Running Watts 800–2000 1300–1500 100–200 1000–1500 250–1000 500–1500 A Guide to Your inverSOL Unit | 25... -
Page 26: Comparing Sample Loads
SAMPLE APPLIANCE PAIRINGS inverSOL models are not suitable for use with certain products or loads (if they require more current than the unit can provide.) This limit applies to the total number of devices attched. The 3000 model has a ‘Save’ and ‘Boost’ mode,... -
Page 27: Estimated Average Run-Time
The hours are based on a fully charged battery with no additional charge being added to the unit (i.e. during night or severely overcast days).* 1500 3000 11.5 * Estimated values only; times can vary. A Guide to Your inverSOL Unit | 27... -
Page 28: Battery Maintenance
Always return your used electronic products, batteries, and packaging materials to dedicated collection points. Batteries should not be placed in garbage. DO NOT DISMANTLE THE UNIT. Warranty is void if the plate is opened by unauthorized personnel. For technical support, contact the factory. 28 | A Guide to Your inverSOL Unit... -
Page 29: Troubleshooting
Low (“0.0A, 0.0V”) solar radiation is are connected and have an CHARGING ISSUES voltage / current coming from PV being received unobstructed view of the sky, and array the solar panels surface is clean A Guide to Your inverSOL Unit | 29... -
Page 30: Customer Service & Support
Return Materials Authorization (RMA) will be issued. The product must be returned to inverSOL within 14 business days from the date the RMA is issued in order to receive a replacement unit. The replacement unit may be new or refurbished and of the same or comparable design. -
Page 31: Company Contact Information
inver Energía siempre Headquarters & Manufacturing: 1 Ave. Ponce de Leon, Esq. Georgetti Urb. Billy Suarez, Caguas, Puerto Rico 00725 Engineering: 11 Centre Park, Rochester, NY 14614 Web: inversolpr.com Online Shop: https:/ /inversolpr.com/shop Customer Service Hotline: 1.888.803.2202 twitter.com/inversolpr facebook.com/inversolpr... - Page 32 At inverSOL, LLC, we are committed to the well-being of our customers and, by the utilization of renewable forms of energy, we encourage the conservation of our natural resources. Thank you for choosing our portable solar generators as your emergency backup power solution.
