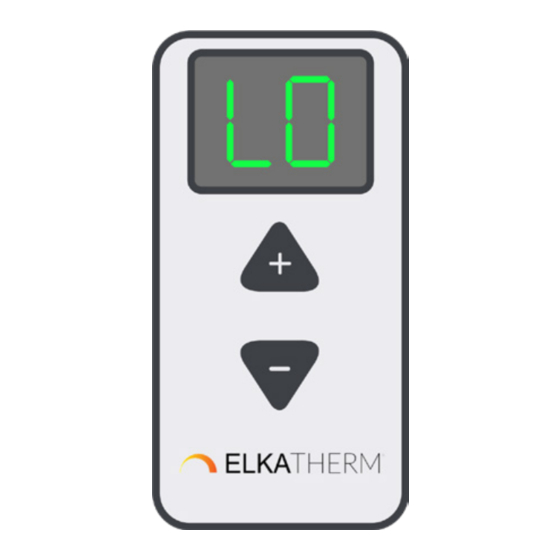

Summary of Contents for ELKATHERM ETT-100
- Page 1 Thermostat Manual...
-
Page 2: Table Of Contents
Contents Description of the Device........5 Control Buttons...............5 Display..................5 Starting the device..............6 Placing the device into a working state and setting the temperature............6 Standby state................6 Minimum and Maximum temperature value......8 Setting and controlling the set temperature......8 Errors and device information..........11 Open Window Detection............11 Antifrost................12 Child Lock................12 Device Offline............11... -
Page 3: Description Of The Device
...step by step Description of the Device Eco/Comfort temperature.............27 Adaptive program..............28 Update software on the heater..........28 Control Buttons The device has two multifunctional control buttons, Device groups............30 (plus; increasing value) and (minus; decreasing value). How to group devices............30 Share group.................32 Rename group..............33 Ungroup group..............34 Autoupdate................35... -
Page 4: Starting The Device
User Manual ...step by step Starting the device When it is connected to the power supply for the first time after factory settings the device produces sound and automatically turn on the device and display to the initial state ( -- ). Other reconnectings to the power supply, the device will produce sound and display the last state it was before the power supply was disconnected. -
Page 5: Minimum And Maximum Temperature Value
User Manual ...step by step Minimum and Maximum temperature value The minimum value of set temperature is LO, and the maximum value is HI. Reaching maximum and minimum temperature produces characteristic sounds, which makes the device easier to handle for blind or visually impaired people. -
Page 6: Errors And Device Information
User Manual ...step by step If the temperature is changed on the thermostat, while in Errors and device information program mode, the mode will be automatically changed “E1” represents a problem with the room temperature from program to manual. sensor. When the error is detected and showed on display as “E1”, the heater device will be turned oF automatically display will show state “oF”. -
Page 7: Antifrost
User Manual ...step by step Device Offline this feature. For the next 30 minutes, the device disables open window detection. When the device is not connected to the internet on Antifrost the display “oo” symbol will be shown, along with other statuses. -
Page 8: Smart Pairing
User Manual ...step by step 2. Smart Pairing 3. Factory Reset The Smart pairing on heater is activated by holding down both control buttons on the thermostat until “SP” is shown The device can be reset to factory settings. on display. The Factory reset is activated by holding down both control Release the buttons once the “SP”... -
Page 9: Mobile Application And Connectivity
User Manual ...step by step Mobile application and connectivity Delete the device The device can be deleted from each account where it is Add a device available, and deletion is only performed for that account. • Adding new device is possible by using the mobile app •... -
Page 10: Device Status
User Manual ...step by step o The thermostat is switched off - “OFFLINE” status - Disappearance of electricity - Loss of WIFI connection - Loss of Cloud connection - Internet disappearance - Negligible thermostat status. o Active - “ON” status - Thermostat is on - WIFI and Cloud are active - All setup options are allowed... -
Page 11: Modes Of Operation
User Manual ...step by step • APP has the ability to read the following information: On the home screen of the device in the mobile app it is possible to select and modify the modes of operation as o Current temperature indicated on the figure above. -
Page 12: Notifications
User Manual ...step by step temperature in the range of 15 to 35 °C. The slider (“+” or “-”) will change the set temperature to the desired value. The temperature set in this mode will be applied in the settings as well and used in the program mode. 5. -
Page 13: Window Tracking
User Manual ...step by step Window tracking Antifrost • Window open detection can be disabled or enabled via • Antifrost temperature can be set in a range from 0 °C mobile app. to 17 °C • This is done by turning on or off Window tracking option. •... -
Page 14: Room Temperature Sensor Calibration
User Manual ...step by step Room temperature sensor calibration • The application allows you to calibrate the room temperature sensor. • The calibration range is ± 10 °C with changing levels of 0.5 °C Eco/Comfort temperature • Eco/Comfort temperature can be changed in the mobile app. •... -
Page 15: Adaptive Program
User Manual ...step by step Adaptive program applied on the heater inside the device and will update automatically. • Setting the adaptive automatic program is possible by • If Autoupdate is active, the heaters section will display using the mobile app information about the current firmware version, and that •... -
Page 16: Device Groups
User Manual ...step by step Device groups To add a device to an existing group: 1. Open the mobile app How to group devices 2. Click on button (add to group) It is possible to group only already online 2 or more 3. -
Page 17: Share Group
User Manual ...step by step Share group Rename group It is possible to share already connected device with other It is possible to rename the group via mobile app. accounts (e.g. with family members) by using the mobile app. 1. Open the mobile app. 1. -
Page 18: Ungroup Group
User Manual ...step by step Ungroup group Autoupdate It is possible to ungroup the group from mobile app. If The AUTOUPDATE (enable/disable) option will enable the device is shared with multiple accounts, it will only be automatic update of the heater’s firmware. By selecting ungroup from your account. -
Page 19: Adaptive Program
User Manual ...step by step Adaptive program Antifrost Setting the adaptive program is possible by using the mobile In the mobile app on the control panel antifrost can be app. It enables the user to turn on the heating several minutes modified from 0-17C. -
Page 20: Setting The Eco Temperature
User Manual ...step by step Setting the Eco temperature Setting the Comfort temperature In the mobile app, on the control panel, Eco temperature In the mobile app, on the control panel, Comfort temperature can be modified from 10-30 C. It will also be immediately can be modified from 15-35 C. -
Page 21: Setting The Weekly Program
User Manual ...step by step Group individual settings Setting the weekly program The program can be set for each day in a week separately Individual Devices in Group or for the whole week at once. During one day for every half an hour Comfort/Eco/AntiFrost temperature is being set. -
Page 22: Child Lock
User Manual ...step by step return it to manual mode by disconnecting heater from the power and turning it again on. Thermostat information There are informations about thermostat and battery status, if connected. Autoupdate The AUTOUPDATE (enable/disable) option will enable automatic update of the heater’s firmware. -
Page 23: Heaters
User Manual ...step by step Heaters Surface temperature limit active When clicked on it, it shows the number of active heaters If it is active, it means that an external sensor (surface that are interconnected and connected to the app. For every temperature sensor) has been added. -
Page 24: Temperature Sensor Calibration
User Manual ...step by step Temperature sensor calibration 3. Choose HYSTERESIS and set desired value between 0.2 °C and 5 °C. Sensor calibration is an adjustment performed on a sensor to 4. Click SAVE. make that thermostat as accurate as possible. 1. - Page 25 User Manual 2. Click the symbol in the upper right corner and then click SETTINGS. 3. Press on the slider to turn on/off window open...
Need help?
Do you have a question about the ETT-100 and is the answer not in the manual?
Questions and answers

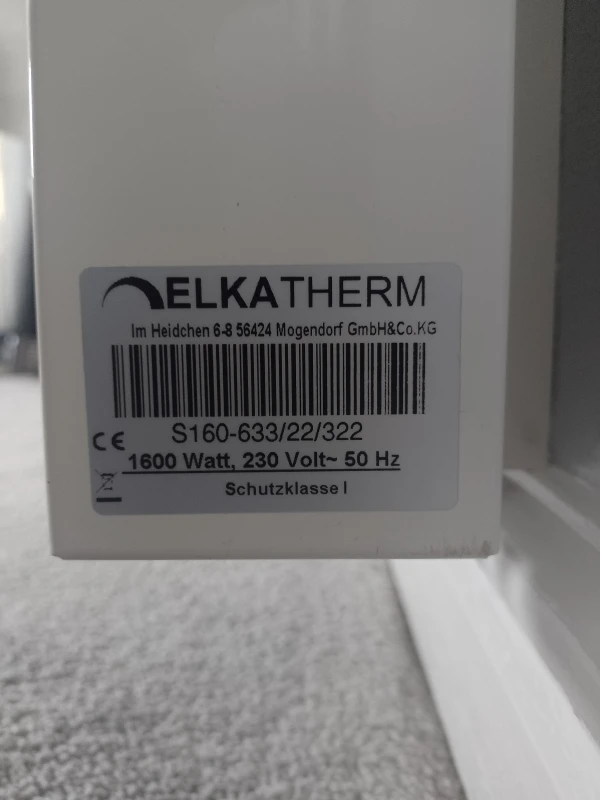

I have some elkatherm radiators that look the same controls as this but mine only alter the temperature of the radiator I have been told I can control them with an app and a hub can it be any app and hub or does it have to be elkatherm items.
