Summary of Contents for DX Engineering DXE-DMC-2

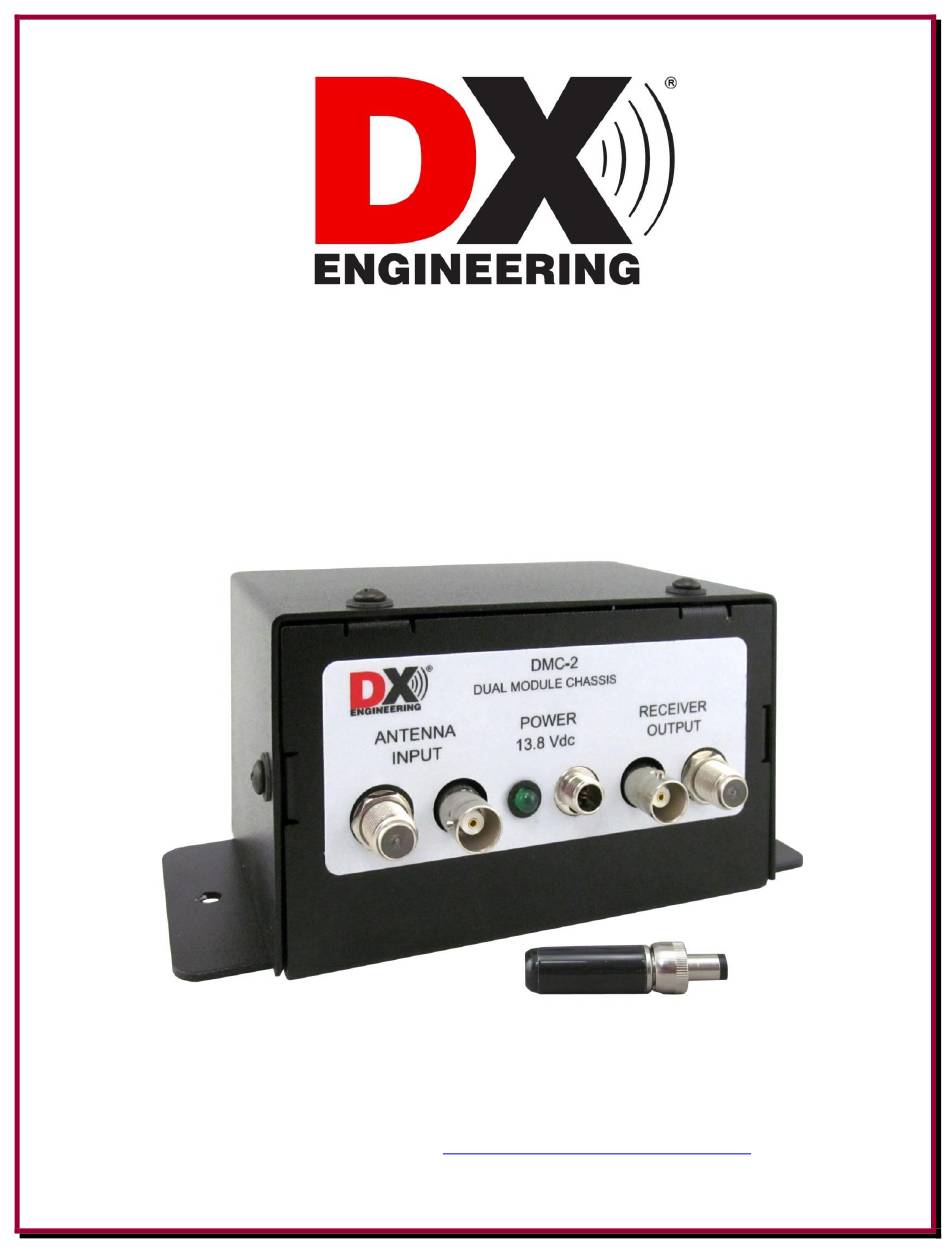

- Page 1 Dual Module Chassis DXE-DMC-2 DXE-DMC-2-INS Revision 1a © DX Engineering 2020 1200 Southeast Ave. - Tallmadge, OH 44278 USA Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200 Fax: (330) 572-3279 ∙ E-mail: DXEngineering@DXEngineering.com...
- Page 2 The DX Engineering Dual Module Chassis (DXE-DMC-2) is the connector and power interface box for all DX Engineering Plug-In Modules and Receive Filters. This is one of the most highly requested DX Engineering accessories. You can build a special HF receive filter or create a wide pass filter, protect a receiver with a filter and a limiter or make a preamplifier with filtering or limiter protection.
- Page 3 PCB and the by-pass module installed. The DXE-DMC-2 is a versatile multi-purpose DX Engineering receive device box. It can be used for two passive plug-in modules or one powered module and one passive module. The top slot is first in line from the Antenna Input, paralleled BNC and F connectors.
- Page 4 Installing Optional Plug-In Modules DX Engineering optional modules used with the Dual Module Chassis: Part Number Description DXE-IT-PM 75 to 50 ohm Impedance Transformer Plug-in Module (passive) DXE-RG5000HD-PM Receiver Guard 5000HD Plug-in Module (passive) DXE-RPA-2-PM Receive Preamplifier Plug-in Module (powered)
- Page 5 This example shows installing the optional DXE-RG5000HD-PM plug-in module. Place the board on the pins and push the PCB until it fully seats in place. The optional filter board needs to be installed on the DXE-RXFL-1 Receive Filter Adapter Board. Install your optional filter board by pressing it filly in place on the Adapter Board.
- Page 6 RXFL filters listed below. They are used in the DXE-DMC-2, DXE-NCC-2, DXE-RTR-2 and DXE-RPA-2. The DXE-DMC-2 can accommodate one or two filters to create the filter type and input signal band pass frequency coverage and limitations that serves your needs. Filter roll-off frequency is the point where attenuation begins to increase typically to over than 50 dB.
-
Page 7: Filter Graphs
Filter Graphs The following 18 charts show the response curves for the 18 optional filters that are available for the DXE-DMC-2. DXE-RFXL-LP160M - Low Pass, 160 M and below - Cut off Frequency 2.30 MHz DXE-RFXL-LP80M - Low Pass, 80 M and below - Cut off Frequency 4.00 MHz... - Page 8 DXE-RFXL-LP40M - Low Pass, 40 M and below - Cut off Frequency 7.50 MHz DXE-RFXL-LP20M - Low Pass, 20 M and below - Cut off Frequency 15.00 MHz...
- Page 9 DXE-RFXL-LP15M - Low Pass, 15 M and below - Cut off Frequency 22.00 MHz DXE-RFXL-LP10M - Low Pass, 10 M and below - Cut off Frequency 30.00 MHz...
- Page 10 DXE-RFXL-HP160M - High Pass, 160 M and above - Cut off Frequency 1.65 MHz DXE-RFXL-HP80M - High Pass, 80 M and above - Cut off Frequency 3.40 MHz...
- Page 11 DXE-RFXL-HP40M - High Pass, 40 M and above - Cut off Frequency 6.60 MHz DXE-RFXL-HP20M - High Pass, 20 M and above - Cut off Frequency 13.70 MHz...
- Page 12 DXE-RFXL-HP15M - High Pass, 15 M and above - Cut off Frequency 20.20 MHz DXE-RFXL-HP10M - High Pass, 10 M and above - Cut off Frequency 27.90 MHz...
- Page 13 DXE-RFXLBPF160M - Band Pass, 160 M only - Center Frequency 1.85 MHz DXE-RFXL-BPF80M - Band Pass, 80 M only - Center Frequency 3.70 MHz...
- Page 14 DXE-RFXL-BPF40M - Band Pass, 40 M only - Center Frequency 7.15 MHz DXE-RFXL-BPF20M - Band Pass, 20 M only - Center Frequency 14.15 MHz...
- Page 15 DXE-RFXL-BPF15M - Band Pass, 15 M only - Center Frequency 21.15 MHz DXE-RFXL-BPF10M - Band Pass, 10 M only - Center Frequency 28.50 MHz...
-
Page 16: Technical Support
Warranty All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts, adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
