- Page 1 XtalX LUSQ1 Pressure Sensor Mechanical User Manual www.phasesensors.com...
- Page 2 XtalX LUSQ1 Pressure Sensor Mechanical User Manual ©COPYRIGHT PHASE ADVANCED SENSOR SYSTEMS CORP. 4-016 National Institute for Nanotechnology 11421 Saskatchewan Drive Edmonton, AB, T6G 2M9 TELEPHONE: (780) 264-2659 AUGUST, 2021...
-
Page 3: Table Of Contents
Table of Contents Page 1 CONTENTS SECTION PAGE MECHANICAL INSTRUCTIONS 2.1 Connecting User Fluid System to Presssure Sensor ............2.2 Consumables .............................. 2.3 Microcap Attatchment ......................... XTALX LUQS1 SPECIFICATION SHEET 3.1 Specification Hightlights ........................3.2 Mechanical Specifications ........................ 3.3 Electrical Specifications ........................3.4 Oscillator Specifications ........................ - Page 4 Table of Contents Page 2...
-
Page 5: Mechanical Instructions
Mechanical Instructions Page 3 SECTION 1 MECHANICAL INSTRUCTIONS 1.1 CONNECTING USER FLUID SYSTEM TO PRESSURE SENSOR When connecting the measured fluid to the sensor, the following connection parts are necessary: Consumer Part Description Qty. Material Supplier Items Number Cone Ferrule 40°... - Page 6 When installing the cone fittings, ensure that the metal tubing is cut flush and there are no burs or blockages in the internal diameter. Place the nut behind the cone port and slide the 1/16” tubing through both. Insert two tubing/cone/nut assemblies into the corresponding tapped holes of the micro-cap.
-
Page 7: Consumables
Mechanical Instructions Page 5 1.2 CONSUMABLES The following 0-rings may need to be replaced during the life of the sensor: Part Number O-Rings Size Qty. Material Supplier Number Diaphragm 90D Viton DN-016 McMaster Carr 8297T126 O-ring Fluoroelastomer Diaphragm DN-016 55D PTFE McMaster Carr 9560K43 Backup Ring... - Page 8 The placement of the O-ring is shown below: Figure 1-2. Placement of O-rings Mechanical Instructions Page 6...
-
Page 9: Microcap Attatchment
Mechanical Instructions Page 7 1.3 MICROCAP ATTACHMENT When removing or attaching the microcap to the pressure sensor, follow the procedures below: Removal Use a 1” hex wrench on the microcap and a 5/8” hex wrench on the diaphragm. 2. Turn the 5/8” wrench counter-clockwise to loosen. 3. - Page 10 Attachment Check all O-rings for damage and replace if necessary. 2. Take care to ensure the you do not touch the membrane as it is fragile. 3. Engage the threads by hand using the diaphragm hex while gently pushing the diaphragm towards micro-cap for the O-rings to pass the threads.
-
Page 11: Xtalx Luqs1 Specification Sheet
Specification Sheet Page 9 SECTION 2 XTALX LUQS1 SPECIFICATION SHEET 2.1 SPECIFICATION HIGHLIGHTS 2.5 ADDITIONAL SPECIFICATIONS CALIBRATED RANGE ......50 TO 10000 PSI(3.5 TO 690 BAR) STORAGE TEMPERATURE ..............-65° TO 85°C CALIBRATED TEMPERATURE RANGE .......... 10° TO 60°C ACHIEVABLE RESOLUTION ............... 0.002 PSI PRESSURE ACCURACY ................. -
Page 12: Luqs1-10000-85 Specification Drawing

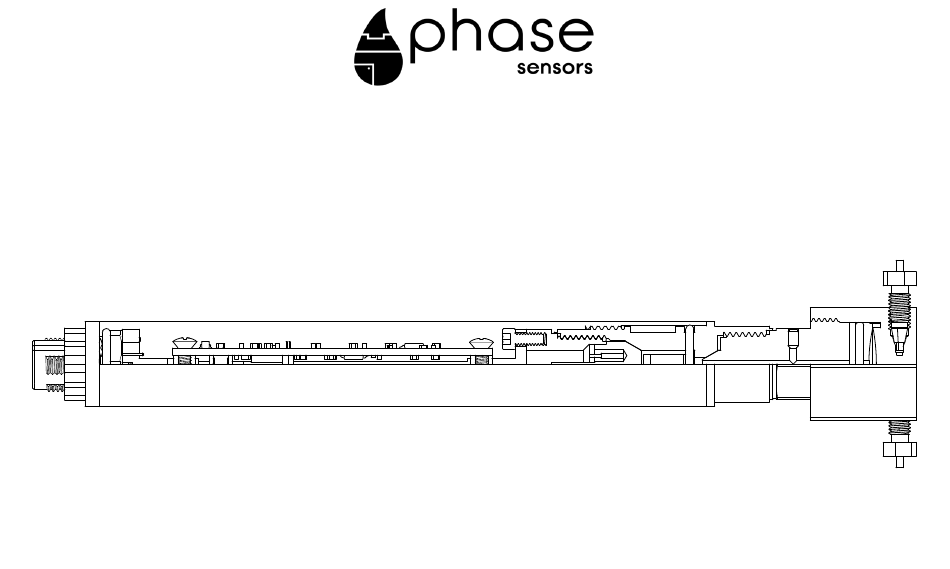

3.6 LUQS1-10000-85 SPECIFICATION DRAWINGS 7.86” Figure 2-1. LUQS1 Pressure Sensor Specification Drawing Specification Sheet Page 10...
