Europa components LBC160-2503PSNME Manual

Important Safety Notice

It is the responsibility of the person installing the electrical equipment to ensure that the installation meets the
requirements of the IET wiring regulations and is therefore 'fit for purpose'. Factors such as correct selection
of components, cable sizing, protective devices and Earth bonding are all critical and should be checked prior to
full testing and power-up. Any other regulations applicable to the equipment being installed such as the Machinery
Directive and current health and safety legislation must also be adhered to.
Terminals, including factory fitted, should be checked periodically to ensure correct tightness.
DO NOT USE POWER TOOLS ON THESE PRODUCTS
Data
Rated thermal current I at 40°C
th
Rated insulation voltage U
i
Rated dielectric strength
Rated impulse voltage U
imp
Rated operational current I
e
Rated operational current I
e
Rated operational power P
e
Rated breaking capacity
Rated making capacity
Rated short circuit making capacity (peak value)
I
cm
Rated short-time withstand current (1 sec)
rms I
cw
Minimum number of mechanical operations
Minimum number of electrical operations @
400V AC-22
Terminal Capacity (rigid copper cable)
Lug bolt size
Maximum size of busbar connection
Tightening torque
Page 1 of 3

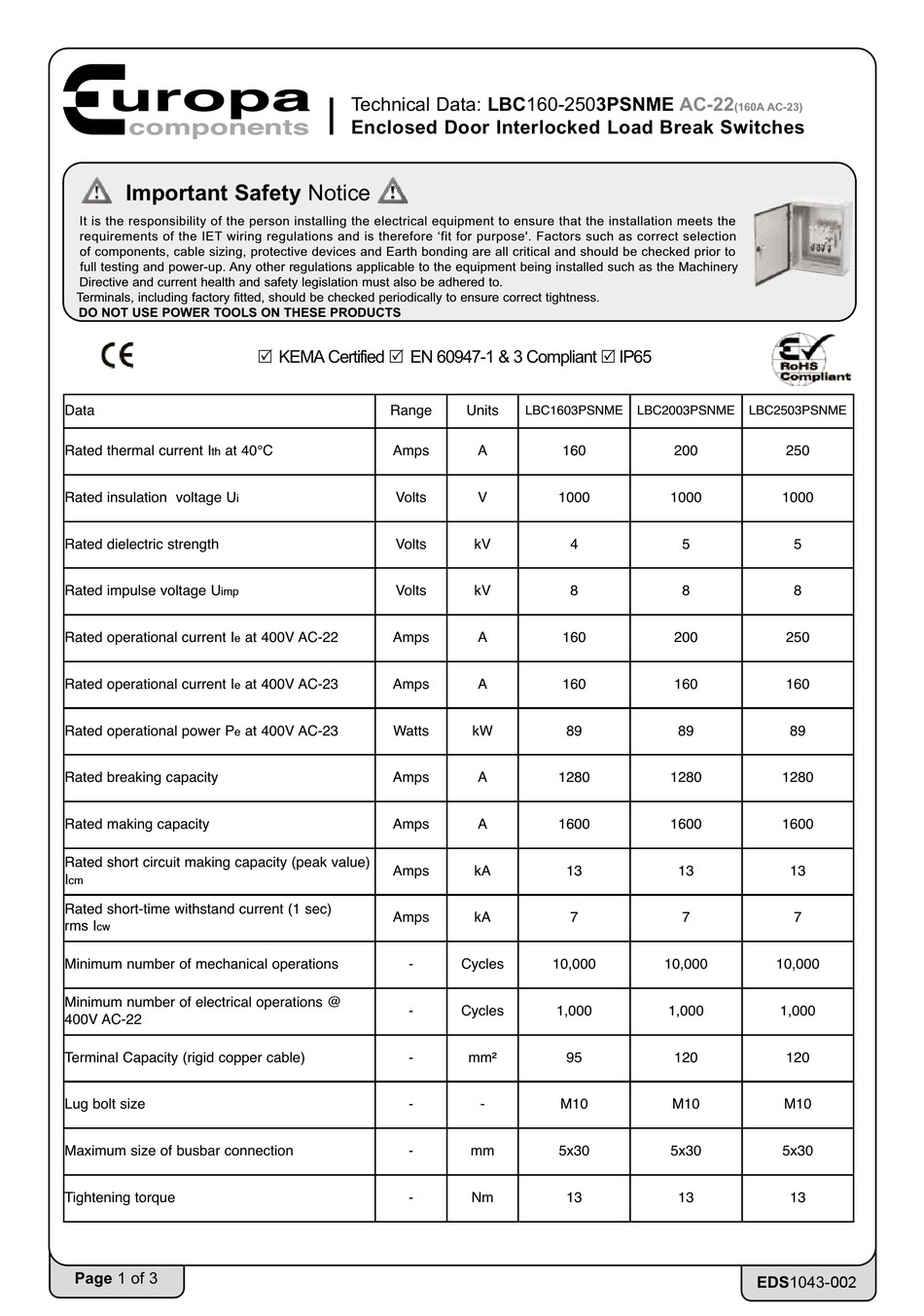

Technical Data: LBC160-2503PSNME
Enclosed Door Interlocked Load Break Switches
R KEMA Certified R EN 60947-1 & 3 Compliant R IP65
Range
Amps
Volts
Volts
Volts
at 400V AC-22 Amps
at 400V AC-23 Amps
at 400V AC-23 Watts
Amps
Amps
Amps
Amps
-
-
-
-
-
-
Units
LBC1603PSNME
A 160
V 1000
kV 4
kV 8
A 160
A 160
kW 89
A 1280
A 1600
kA 13
kA 7
Cycles 10,000
Cycles 1,000
mm² 95
- M10
mm 5x30
Nm 13
AC-22
(160A AC-23)
LBC2003PSNME LBC2503PSNME
200 250
1000 1000
5 5
8 8
200 250
160 160
89 89
1280 1280
1600 1600
13 13
7 7
10,000 10,000
1,000 1,000
120 120
M10 M10
5x30 5x30
13 13
EDS1043-001 002
