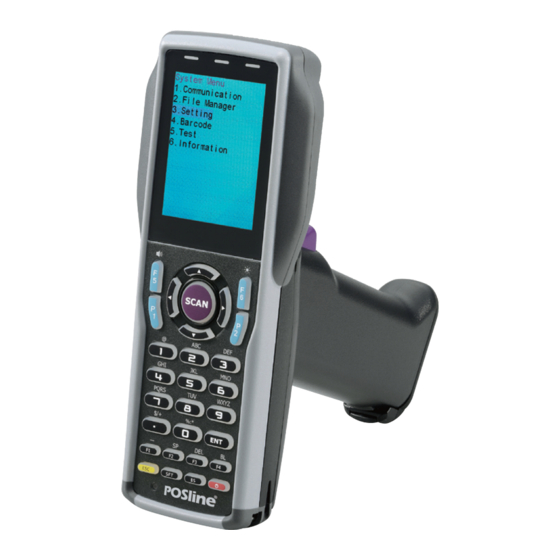

POSline TPC7030 Operation/Reference Manual
  1. Manuals
  2. Brands
  3. POSline Manuals
  4. Payment Terminal
  5. TPC7030
  6. Operation/reference manual

POSline TPC7030 Operation/Reference Manual

Hide thumbs Also See for TPC7030:

Advertisement

Quick Links

Download this manual
TPC7030 Operation Reference Guide
1.
OPERATING MODES ........................................................................................................................................... 1
1.1
................................................................................................................................................. 2
1.2
1.3
2.
KEYPAD .................................................................................................................................................................. 7
3.
PT FILEMANAGER .............................................................................................................................................. 8
All manuals and user guides at all-guides.com
Table of Content
........................................................................................................................................... 4
................................................................................................................................... 6
DOC NO. UM-TPC70305-001
Dec. 2008-12-16
Versión 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the TPC7030 and is the answer not in the manual?

Questions and answers

Related Manuals for POSline TPC7030

Summary of Contents for POSline TPC7030

  • Page 1: Table Of Contents

    All manuals and user guides at all-guides.com TPC7030 Operation Reference Guide Table of Content OPERATING MODES ............................1 ..............................2 YSTEM ............................4 UPERVISOR BIOS ........................... 6 SETTING DEFAULT KEYPAD .................................. 7 PT FILEMANAGER .............................. 8 DOC NO. UM-TPC70305-001 Dec. 2008-12-16...

  • Page 2: Operating Modes

    All manuals and user guides at all-guides.com Operating modes TPC7030 is set up such a way that there are several operating modes. The system of terminal may operate in various modes for different purposes. The following diagram summarized the way to switch between different modes.

  • Page 3: System Menu

    [3+9+PW] keys continually in Power OFF mode to enter System Menu. 1) Communication File Transfer Only go to this mode to download and upload files from TPC7030 to PC through PT FileManager. (except Bluetooth transmission) Interface You can upload or download files through either RS-232 or USB on cradle.
  • Page 4 Status Bar Disable or enable the status bar Language Change Language Date/Time Set up the time and date of Real Time Clock in TPC7030. 4) Test Memory Test Memory test Buzzer Test Buzzer test from high tone to low tone LED &...

  • Page 5: Supervisor Menu

    Power off first, then user press [1+3+0+PW] keys continually in Power OFF mode to enter System Menu. 1) Communication File Transfer Only go to this mode to download and upload files from TPC7030 to PC through PT FileManager. (except Bluetooth transmission) Interface You can upload or download files through either RS-232 or USB on cradle.
  • Page 6 All manuals and user guides at all-guides.com 3) Setting Equipment ID TPC7030 identification Password Change password for entering “Supervisor Menu”. The default value is”00000” (only 5 characters) AP Block Size Adjust AP Block memory size (base on ROM memory size, minimum512KB)

  • Page 7: Bios Setting Default

    All manuals and user guides at all-guides.com 1.3 BIOS setting default Item Default Transmission interface Transmission Baud Rate 115200bps LCD back light level Keypad back light time 20 Sec. Keypad sound Open Buzzer Volume Medium 0.1 Sec. Vibration time Power ON Resume Auto-OFF time 180 Sec.

  • Page 8: Keypad

    All manuals and user guides at all-guides.com Keypad Description 1. Scan key 2. Cursor key 3. 10-key pad 4. Enter key 5. Power key 6. ESC key 7. Reset SFT key Switches between the character input mode and the number input mode. [abc][ABC] lit on the LCD screen indicates the character input mode.

  • Page 9: Filemanager

    All manuals and user guides at all-guides.com PT FileManager The PT FileManager is the tool to download and upload files from TPC7030 to PC. Beside this, PT FileManager also can do File management To past and copy files (including TPC7030 data, disk and files) Monitor TPC7030 data collector Monitor TPC7030 and transmit file automatically.
