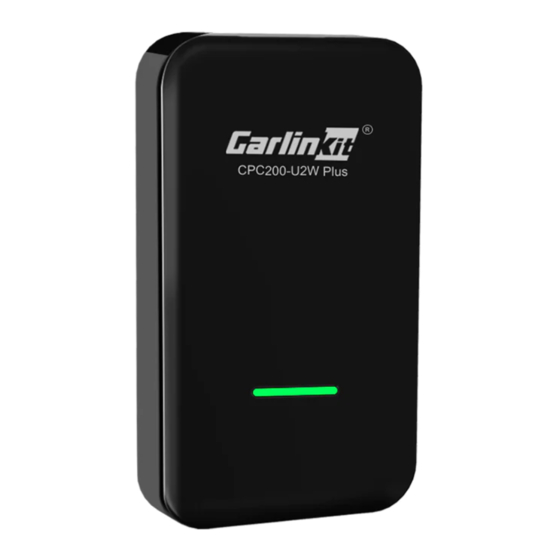

This Wireless CarPlay adapter is
compatible with most cars fitted
with a wired CarPlay connection.
COMPATIBLE CAR MODELS
www.apple.com/ios/carplay/available-models/
COMPATIBLE iPHONE MODELS
iPhone 6 and up, running i0S 10 or above.
BEFORE YOU START
• Ensure your iPhone's Bluetooth and Wifi are both
turned on.
Settings > Wi-Fi
To check:
Settings > Bluetooth
• Some vehicles may need CarPlay to be enabled
on their infotainment system before use.
Consult vehicle's user manual for information.

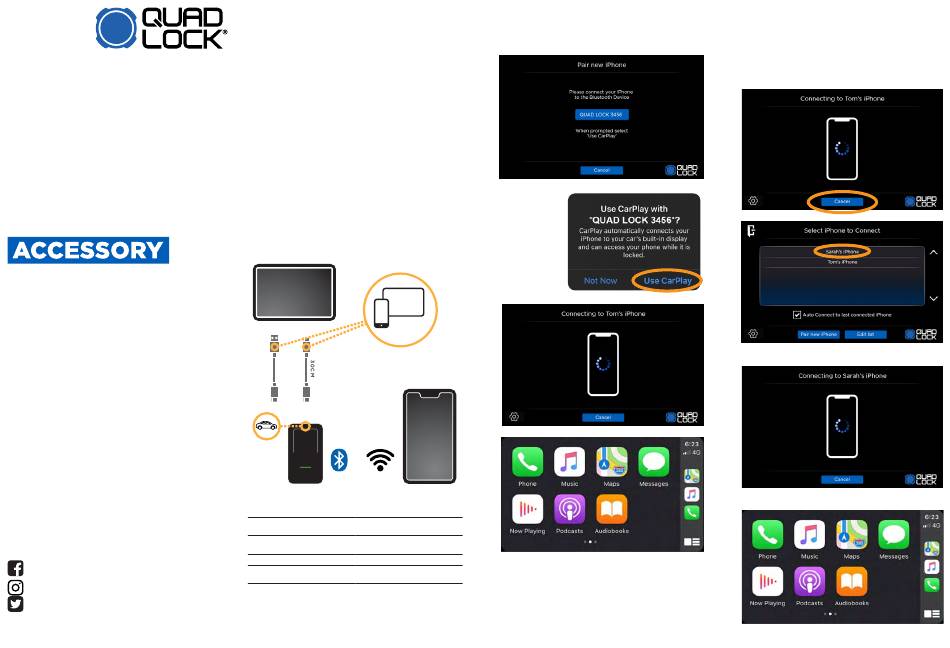

CONNECTING YOUR IPHONE
1. Connect Wireless CarPlay Adaptor
VEHICLE'S
INFOTAINMENT
SYSTEM
USB-A USB-C
INSERT MARKED
CABLE END
INTO VEHICLE PORT
OR
USB-C USB-C
CONNECT TO
PHONE
PHONE VIA
BLUETOOTH AND WI-FI
LED LIGHT STATUS
SOLID RED
POWER ON
/
NOT CONNECTED
FLASHING RED LOOKING FOR
CONNECTION TO PHONE
GREEN CONNECTED IN USE
/
ALTERNATE FLASHING
UPDATING FIRMWARE
RED GREEN
/
PAIRING YOUR iPHONE
1.
2. On your phone
3.
4.
PAIRING ADDITIONAL iPHONES
1. Turn OFF or disconnect already connected iPhone.
2. Follow steps for Pairing Your iPhone.
SELECTING SWITCHING
/
BETWEEN iPHONES
By default AUTOCONNECT is ON and the CarPlay
Adaptor will connect to the last connected iPhone.
1.
2.
3.
4. CarPlay connected.
