Tri-Tronics Label-Eye LER Setup Instructions page 2

SPECIFICATIONS
SUPPLY VOLTAGE
• 10 to 30 VDC
• Polarity Protected
• Intended for use in class two circuits
CURRENT REQUIREMENTS
• 45 milliamps (exclusive of load)
OUTPUT TRANSISTORS
• (1) NPN and (1) PNP output transistors
• Sensor outputs can sink or source up to 150 milliamps (current
limit)
• All outputs are continuously short circuit protected
REMOTE AUTOSET INPUT
• opto isolated momentary sinking input (10 milliamps)
Note: Remote models only
RESPONSE TIME
• Light state response = 100 microseconds
• Dark state response = 100 microseconds
LED LIGHT SOURCE
• High intensity red LED
• Pulse modulated
PUSH BUTTON CONTROL
• Automatic set-up routines based on web opacity
• One push button set-up
• Simultaneously pushing both buttons inverts the output

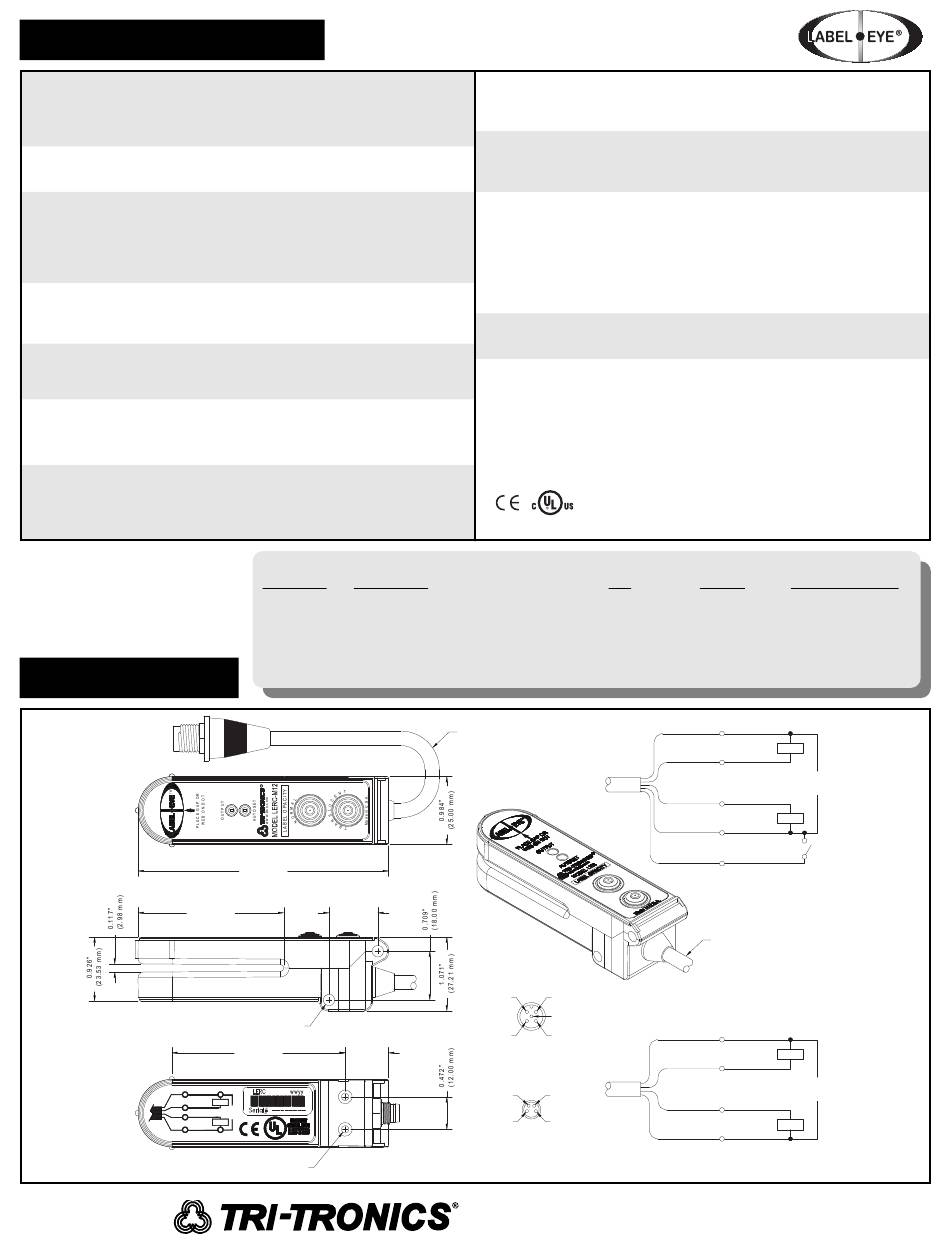

DIMENSIONS
2.116"
(5 3 .7 6 m m )
B R N P O S
W H T N P N
1 5 0 M A M A X
B L K
P N P
B L U N E G
Model Numbers:
Label•Eye Description
LER Red LED, 4 conductor 6 ft. cable
LERC Red LED, 4-pin Nano connector
LERR Red LED, 5 Conductor, 6 ft. Cable
LERRC-M12 Red LED, 5-Pin M12 Pigtail Connector
LERC-M12 Red LED, 4-Pin M12 Pigtail Connector
3.641"
(9 2 .4 7 m m )
0.709"
(1 8 .0 0 m m )
2 X Ø 0 .1 6 7 "
(Ø 4.2 5 m m )
2.520" 0.630"
(6 4 .0 0 m m ) (16.0 0 m m )
L O A D
1 0 to
3 0 V D C
L O A D
2 X 6 -3 2 X 1 /4 " D E E P
M O U N T IN G H O LE S
HYSTERESIS
• Minimal hysteresis promotes the detection between the
backing material and the label depending on the settings
LIGHT IMMUNITY
• Responds to sensor's pulsed modulated light source ...
immune to most ambient light
INDICATORS
• Green LED flashes when AUTOSET routine is activated and
stays illuminated when AUTOSET is completed
• Red LED illuminates when sensors output transistors are
"ON".
Note: The status of the output transistors can be inverted by
pushing both buttons simultaneously.
AMBIENT TEMPERATURE
• –40°C to 70°C (-40°F to 158°F)
RUGGED CONSTRUCTION
• Chemical resistance to harsh cleaners such as detergents,
alcohols, and ketones
• Waterproof, ratings: NEMA 2
• Conforms to heavy industry grade CE and UL requirements
Nano Cable (M8) Selection Guide
P/N
GEC-6
GEC-15
RGEC-6
RGEC-15
6 " [152 .40 ] P IG T A IL
C O N N E C T O R
(M 1 2 M O D E LS )
M 12 C O N N E C T O R
P IN O U T
2 1
5 (O N LY O N R E M O T E
A U T O S E T M O D E LS )
3 4
M 8 C O N N E C T O R
P IN O U T
4
2
1 3
P.O. BOX 25135, TAMPA, FL 33622-5135
813-886-4000 / 800-237-0946
ttco.com / info@ttco.com
RoHS Compliant
Product subject to change without notice.
Length Thread Coupling
6 ft. (1.8m Straight Female
15 ft. (4.6m) Straight Female
6 ft. (1.8m) 90° Female
15 ft. (4.6m) 90° Female
R E D P O S
B R O W N * (1)
L O A D
W H IT E N P N
W H IT E * (2) (S IN K )
1 0 T O
3 0 V D C
G R E E N P N P
B LA C K * (4) (S O U R C E )
L O A D
B LA C K N E G
B LU E * (3)
B L U E R E M O T E
G R A Y * (5) A U T O S E T IN P U T
* S E N S O R S W IT H C O N N E C T O R S
6 ' (1 .8 3 M E T E R S )
C A B LE
R E D P O S
B R O W N * (1)
L O A D
W H IT E N P N
W H IT E * (2) (S IN K )
1 0 T O
3 0 V D C
G R E E N P N P
B LA C K * (4) (S O U R C E )
L O A D
B LA C K N E G
B LU E * (3)
* S E N S O R S W IT H C O N N E C T O R S
070-0150 Rev 3
