Locker Installation & Assembly Instructions
Cora Bike Rack - Double Tier Locker (CBL-DT)
Cora - Double Tier Bike Locker - Heavy Duty

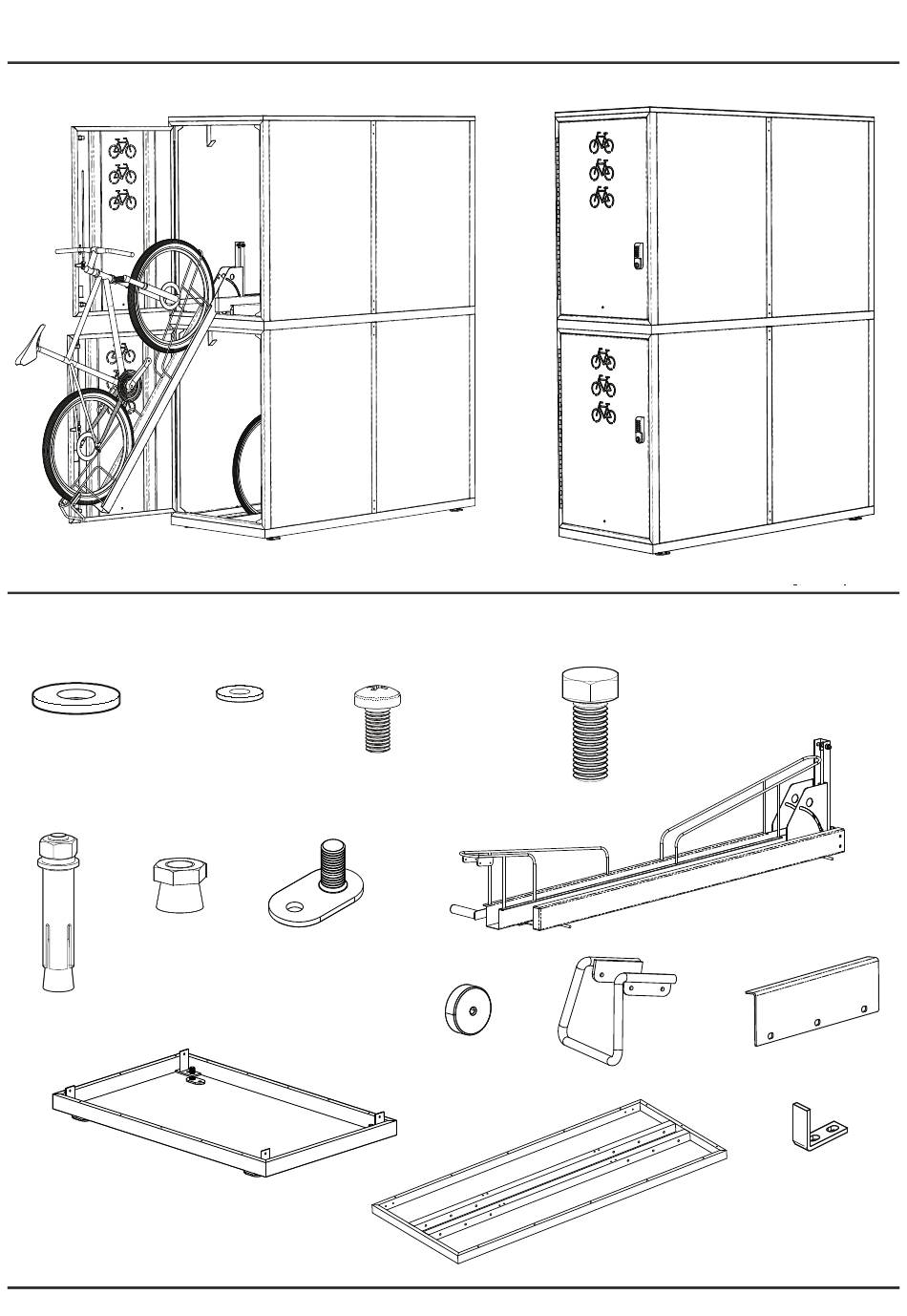

Components for Double Tier Bike Locker used in assembly
Large washer
for use under
Hex head bolts
M10 Shear nuts
(X4)
M10 Anchor Bolts
(X4)
Locker base frame
(x1) may
or may not have
levelling feet installed)
Cora Bike Rack - Australia's Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878
Small washer
for use under
Phillips pan head
fasteners
Adjustable levelling foot
(x4 per base frame, may
already be installed in
Phillips pan head
fasteners (used for
all fastening
unless noted
in instructions)
Sliding upper tier
rack wheels (x4)
Hex Head Bolts
(x20)
Sliding upper tier
rack (x1)
Sliding rack
handle (x1)
guide brackets (x4)
Base frame
for upper tier
locker (x1)
Rev 1.00 Dec 2020 ©
Sliding rack
Sliding rack
L brackets (x4)
Advertisement
Related Manuals for CORA CBL-DT
Summary of Contents for CORA CBL-DT
- Page 1 Sliding rack (x1) may L brackets (x4) or may not have levelling feet installed) Base frame for upper tier locker (x1) Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 2 (x8) panel (x2) Wheel track Helmet/bag hook (x2) Lock rod (x1) may or may not be guides (x4) included Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 3 3. Attach handle to sliding upper tier bike hold • Attach handle using Phillips head fasteners and small washers (x2 per side) Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 4 • Sit bike hold on top of upper tier bike frame. Wheels should be positioned on the outside of each bracket. Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 5 Each bracket is secured with (x3) Hex head bolts and (x3 )washers. Assembly of the sliding upper tier bike hold is now complete. Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 6 NOTE: Ensure all feet contact with ground firmly after leveling, frame cannot rock or lean at any corner, or when fastened with anchor bolts, frame will be warped and not level and will effect assembly of locker. Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020...
- Page 7 • After anchor bolt nut is tightened fully, install supplied shear nuts (x4 one per anchor bolt) onto top of thread • Tighten shear nuts until head snaps off Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 8 Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020...
- Page 9 14. Place assembled sliding upper tier frame onto bottom locker • Lift the assembled sliding upper tier on to the partially assembled base frame. Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 10 • Attach the middle T brackets (x2) one on each side of locker using using (x4) phillips head fasteners and washers (x1) (x1) (x2) Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 11 • Attach the post to the upper tier base frame, onto the cross bracket using (x2) phillips head fasteners and washers on each side Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 12 8 screws and washers per panel (x2) at bottom (x3) at each side Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 13 - Insert 2 double A batteries (if not provided) - plug into lock cable - hold cable taut and adhere to inside of locker door Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 14 See components list and images below for details. Bottom door - rods are the same length Top door - rods are 2 different lengths Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 15 8 screws and washers per panel (x2) at bottom (x3) at each side Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 16 8 screws and washers per panel (x2) at bottom (x3) at each side Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 17 - through top edge of side panels - via 2 screw holes left in T brackets at top of side support posts Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
- Page 18 • Screws will go through floor panel, top edge of the side panels and fix into the bottom of the top locker frame. Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020...
- Page 19 Each end will make (x2) screws. Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020...
- Page 20 Cora Bike Rack - Double Tier Locker (CBL-DT) Installation of the Cora Double Tier locker is complete PH 1800 249 878 sales@cora.com.au www.cora.com.au Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 1.00 Dec 2020 ©...
