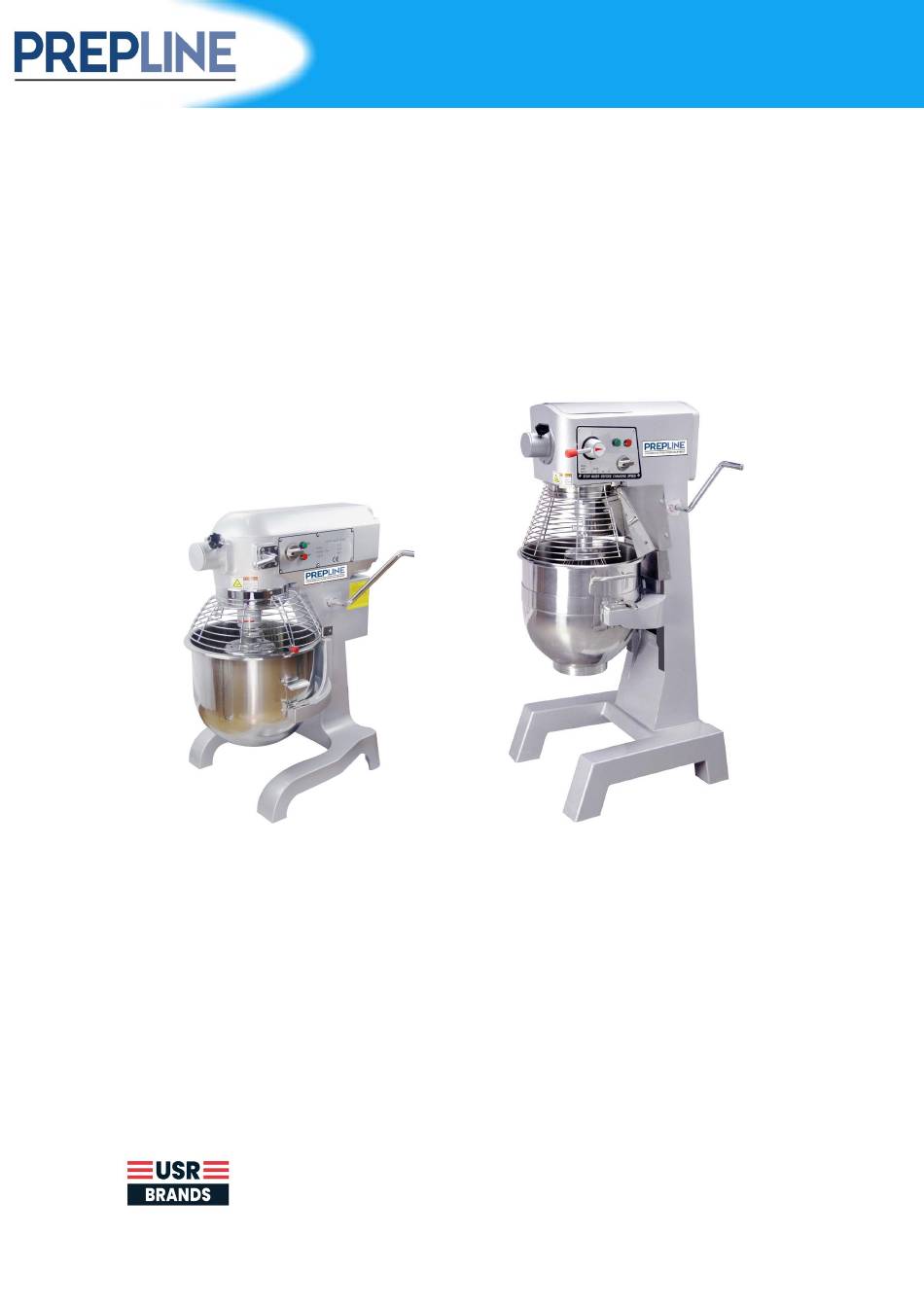

USER MANUAL
HEAVY DUTY GEAR DRIVEN
PLANETARY MIXER
MODEL: PHLM10B-T, PHLM20B-T,
PHLM30B-T, PHLM40B-T, PHLM60B-T,
USR Brands, Inc.
Phone: 800-764-1172 | www.usrestaurant.com | sales@usrestaurant.com
USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE
Advertisement
Summary of Contents for PREPLINE PHLM10B-T
- Page 1 USER MANUAL HEAVY DUTY GEAR DRIVEN PLANETARY MIXER MODEL: PHLM10B-T, PHLM20B-T, PHLM30B-T, PHLM40B-T, PHLM60B-T, USR Brands, Inc. Phone: 800-764-1172 | www.usrestaurant.com | sales@usrestaurant.com USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE...
- Page 2 Pack Contents The following is included: Food Mixer •Spiral Dough Hook •Whisk • Mixing Bowl •Beater • Instruction Manual • General Description This is a kind of changing speed gear mixer. With its planetary stirring design, it has a compact structure, high efficiency, power saving and easy operation.
- Page 3 Main External Parts of Mixer Gear change hand lever Stirring shaft Mixer Stainless barrel Power switch Bent lever Safety guard ( may choose the fitting) Support USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE...
- Page 4 Operation Instruction Standard power supply HzAc. (Please use a plug with 3 wide contacts and good grounding.) Installation of mixer: Put the stirring shaft 2 in Mixer 3 and rotate it in clockwise direction. Starting procedures: Pull the gear change hand lever 1 to position 1 before starting, then turn on the power switch 5 and set the speed required.
-
Page 5: Maintenance
Notes The power socket must be provided with a good ground wire to guarantee the mixer’s good grounding through it. There will be an electric shock if no ground wire or an improper grounding mounted. The ground wire can never be connected with gas pipe, water pipe, lightning rod or telephone line. -
Page 6: Troubleshooting
Trouble Shooting Problems Causes Solutions Tool shaft does Check electric wiring, not rotate after Loosen electric wiring tighten those loose starting the connects machine Oil leakage The seal rings are worn Replace seal rings Too low voltage Check the power supply Motor temperature raised while... - Page 7 Meat Grinder Attachment Ⅰ. Operations Unplug the mixer and turn the unit off. Detach and clean the meat-grinding components with clear water, then assemble them sequentially. Lock the handle. Take off the cover and locking bolt, and then fit on the meat grinder (attachment hub) to the mixer.
- Page 8 1 .The locking of the front nut is not tight enough, resulting in poor contact between the grinding blade and the discharge plate. Readjust the nut. 2 .The grinding plate may be blocked. Clean it. 3 .The grinding blade may be blunt. Sharpen or replace it. Ⅱ.
- Page 9 Proper disposal To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.
