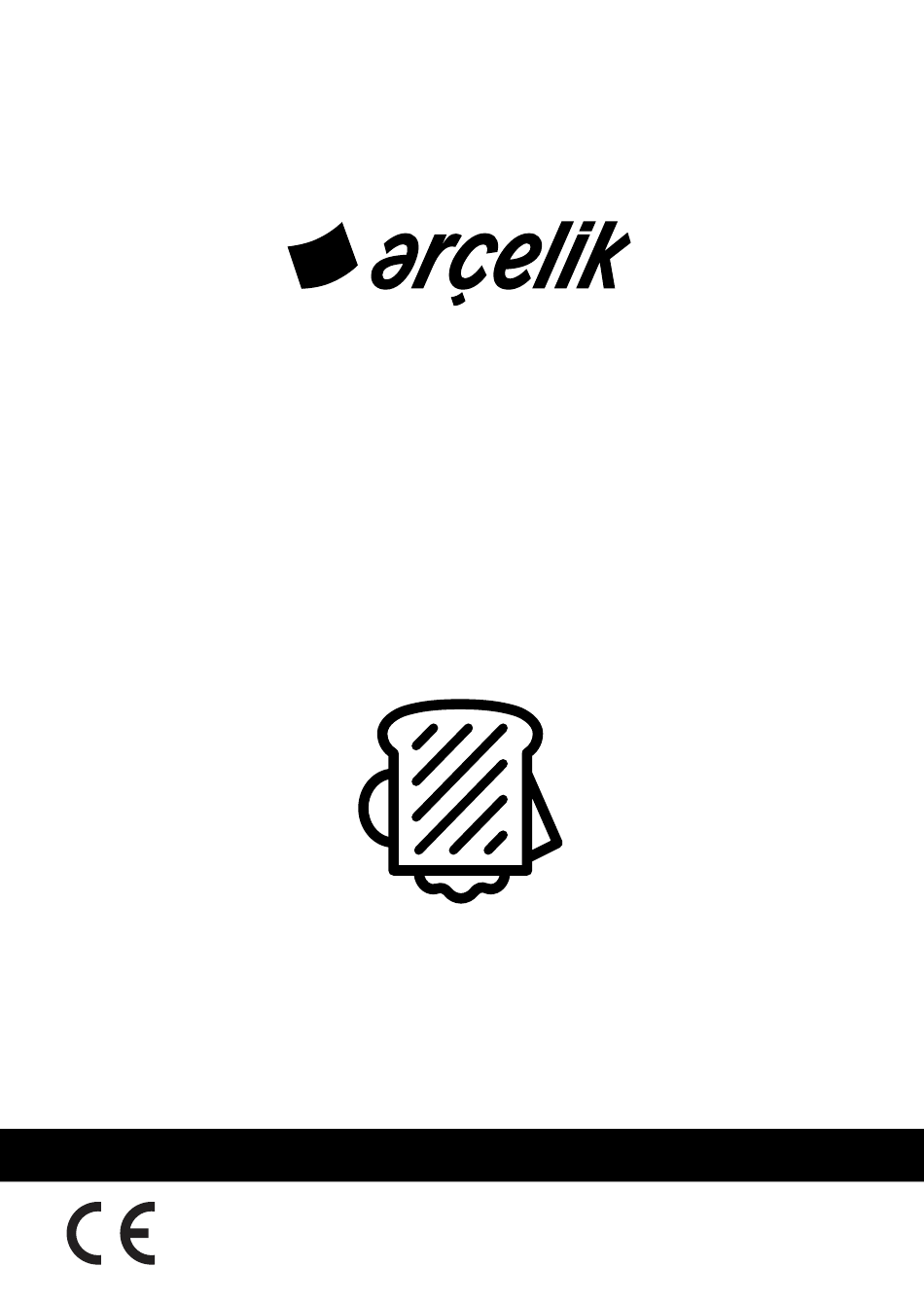

- Page 1 Grill and Toaster User Manual TM 6046 C / TM 6046 CS / TM 6046 CK 01M-8818041100-5021-04 01M-8817731100-5021-04 01M-8817721100-5021-04...
- Page 2 Please read this guide first! Dear Customer, Thank you for choosing an Arçelik product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with the state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference.
- Page 3 1. Locking bolt 7. Status indicator lights (Off , Half on , On 8. On/Off switch 2. Level adjustment slider ( 9. Handle 10. Removable cooking plates (2) 3. Oil drainage channel (2) Technical data 4. Removable oil collection container Power supply: 5.
-
Page 4: Table Of Contents
CONTENTS 1 Important safety and environmental instructions 5 1.1 General safety ......5 1.2 Compliance with the WEEE regu- lations and waste disposal ..9 1.3 Packaging information ....9 1.4 What to do for energy saving ...9 2 Operation 2.1 Intended use ......10 2.2 First operation ......10 2.3 Operation ......10 2.4 Toasting and grilling ....11... -
Page 5: General Safety
Important safety and environmental instructions This section contains safety instructions to prevent haz- ards that can result in injury or property damage. Any warranty is void if these instructions are not followed. 1.1 General safety •This appliance complies with international safety standards. - Page 6 Important safety and environmental instructions instructions on the operation of the appliance and any relevant risks they may encounter. Children should not tamper with the appliance. •Cleaning and user maintenance should not be carried out by children unless they are over 8 years of age and under supervision.
- Page 7 Important safety and environmental instructions hands are damp or wet. •Do not immerse the appliance or its power cord in water. •Do not leave the appliance unattended while it is plugged in. •The outer surface heats up during use. To avoid the risk of burns, do not touch hot surfaces.
- Page 8 Important safety and environmental instructions or a separate remote control system. •Food may catch fire due to overheating. Do not allow the appliance to come into contact with or be covered by flammable materials such as curtains, fabrics, walls, etc. •Do not use the appliance in or near explosive or flammable environments and substances.
-
Page 9: Compliance With The Weee Regulations And Waste Disposal
Important safety and environmental instructions 1.2 Compliance with the WEEE regulations and waste disposal This product does not contain the dangerous and prohibited ma- terials indicated in "Waste Electrical and Electronic Equipment Control Regulation" published by Ministry of Environment and Urbanisation of the Republic of Turkey. -
Page 10: Operation
Operation 2.1 Intended use This appliance is intended for home use and food preparation only, it is not suitable for professional use. 2.2 First operation When using the product for the first time, it is recommended to run it for 15 minutes at maximum temperature without adding food. -
Page 11: Toasting And Grilling
Operation 2.4 Toasting and grilling You can adjust the level adjustment slider to according to the thickness of the food. Set the thermostat knob (6) to Lift the top cover of the appli- Place the food you will cook on the position you want to cook. - Page 12 Operation Device plates in closed position This position is suitable for grilling using the upper and lower cooking plates in the closed position. It should be preferred for sandwiches, toast, pancakes, hamburgers, etc. Open the top cover of the ap- Place the food you will cook on Close the top cover of the ap- pliance upwards by holding the...
- Page 13 Operation Device plates in half-open position The lower cooking plate must be used for cooking food. Open the top cover of the device Place the food you will cook on Leave the top cover of the ap- ” by holding the handle (9). the cooking plate (10).
- Page 14 Operation Two plates in horizontal position This position provides two large grill areas. It should be preferred for foods that need to be cooked by heating from one surface. Open the top cover of the device Move the top cover of the ap- Place the food to be cooked by holding the handle (8).
-
Page 15: Appliance Turned Off
Operation 2.5 Appliance turned off Turn the thermostat knob (6) to To turn off the appliance, turn Unplug the appliance from position "1". the On/Off switch (8) to the "O" the mains and allow it to cool position. down. 2.6 Removing / installing the plates WARNING: Before touching the cooking plates, make sure that the appliance has cooled down completely. -
Page 16: Cleaning And Maintenance
Cleaning and maintenance 3.1 Cleaning To turn off the appliance, turn Wait for the appliance to com- Soak the cooking plates (10) in the On/Off switch (8) to the "O" pletely cool down. Remove the warm water for about 5 min- position and unplug it. - Page 17 Cleaning and maintenance After cleaning, dry all parts before using the appliance. WARNING: White water stains may appear on plates left wet. WARNING: Never use gasoline, solvent, abrasive cleaners, metal objects or hard brushes to clean the appliance. Clean the device after each use to keep it well maintained. WARNING: For easier cleaning, it is recommended to clean the plates after each cooking process after they have cooled down.
-
Page 18: Storage
Cleaning and maintenance 3.2 Storage • Unplug the appliance and allow it to cool before storing it. • Close the appliance door by holding it by the handle (9). • Pull the locking adjustment slide of the device to the “ ” position. •...
