Summary of Contents for anko ATTACHABLE HIGHCHAIR

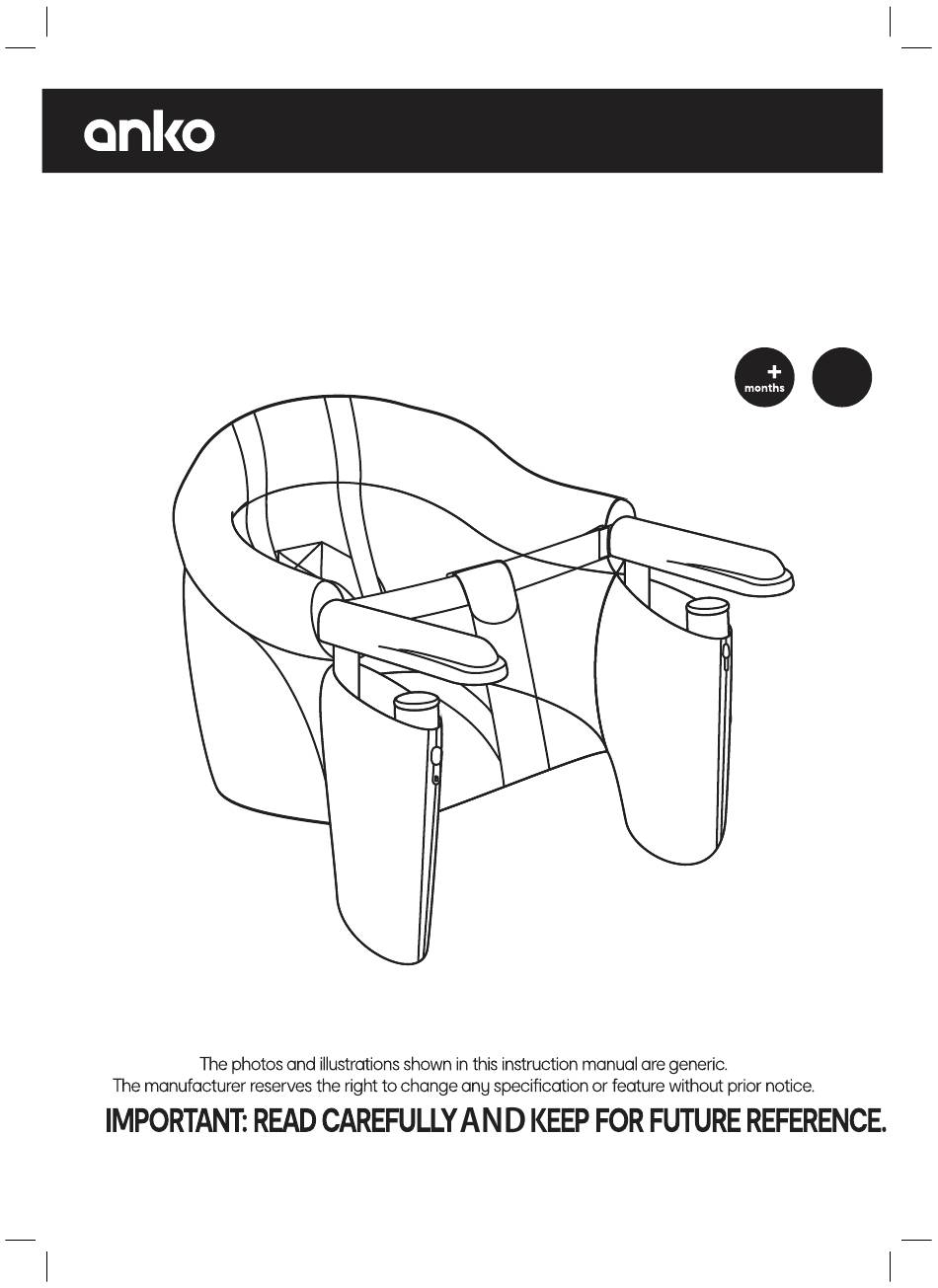

- Page 1 ATTACHABLE HIGHCHAIR INSTRUCTION MANUAL MAXIMUM WEIGHT OF CHILD...
- Page 2 Part List: Shoulder strap with hook Back Tube Main Buckle Clamp Seat cover Shrapnel Adjustor Seat Pad Support Zipper Assembly: Insert back tube (B) into the sleeve of seat cover (H). Press Shrapnel (C) and simultaneously put the clamp assembly into the Back Tube (B) until there is a "Click"...
- Page 3 Attached to Table: Mount the chair to the table. Screw Adjustor (D) upwards to secure to the table surface tightly, then zip up the part (E). Repeat for both sides. Check the chair to ensure it is attached to the table tightly as per image.
- Page 4 WARNING: This product is not suitable for use with all tables. Do not use with glass-topped tables, tables with loose table tops, table leaves, single pedestal tables, card tables, camping tables or any other table that does not o er su ciently stable support. MAXIMUM THICKNESS OF THE TABLE: 90 mm.
- Page 5 Remove from table and fold: Unfasten the safety buckle and remove your child from the highchair. Unzip the support (E). Unscrew the Adjustor (D) to loosen the clamp. Turn the clamp assembly inwards to fold the chair flat.
- Page 6 Disassemble the product: Release the Shrapnel (C) and simultaneously pull out the clamp (A) from the tube. Repeat for both sides. Remove the Back Tube (B) from the Seat Cover (H). Unfasten the fastening grips underneath and take out the Seat Pad (I) from the Seat Cover (H) as per image.
- Page 7 General instructions Complies with safety requirements EN 1272: 2017. Products have been carefully researched and manufactured for your baby’s safety and comfort. MAXIMUM PERMITTED WEIGHT IN THE POCKET : 500 Grams WARNING -Never leave the child unattended. -Always use the child restraint and table attachment systems. -Always check the security and the stability of the product before use.
- Page 8 43232925...
