Stair Slide
Assembly Instructions
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stair Slide and is the answer not in the manual?

Questions and answers

Related Manuals for SLIDEWHIZZER Stair Slide

Summary of Contents for SLIDEWHIZZER Stair Slide

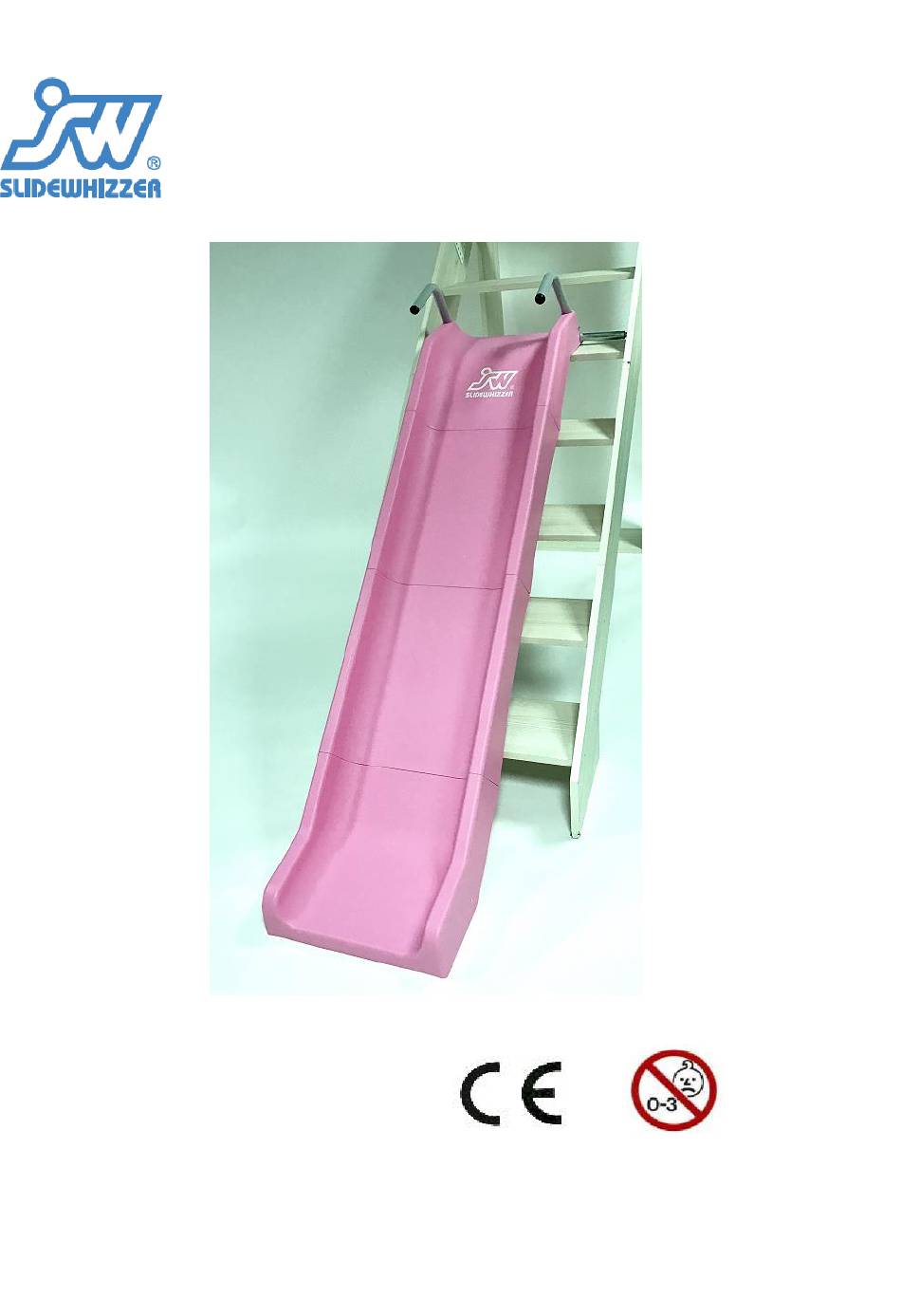

  • Page 1 Stair Slide Assembly Instructions Page 1 of 9...

  • Page 2: Safety Notes

    ★ Before assemble the product, please check the width of to be placed stair is among 65cm – 112 cm . The height of assembled stair slide is 91 cm. Please make sure it’s completely assembled before using it. 1. Thoroughly read all parts of this manual and strictly follow the instructions before using.

  • Page 3: Component List

    COMPONENT LIST Steel plate (x 3) M6 35mm bolt (x 2) M6 washer (x 2) M4 x 14mm (x 6) Spring washer (x 2) Plastic cap (x 2) TOOL REQUIRED Domenut (x 2) Middle slide chute (x 2) 1. Philips head screw driver 2.

  • Page 4: Assembly Steps

    Assembly Steps: step 4 step 1 step 3 step 5 step 2 Step 1 Assembling the Top slide chute and the Middle slide chute 1 - 1. The Top slide chute (J) and the Middle slide chute (V) have tongue-and-groove joint on the edge for the connection.
  • Page 5 1 - 4. Fix the Top slide chute (J) and the Middle slide chute (V) by using the steel plate (X) x 1 and bolt (Q) x 2. (Figure 3) (Figure 3) 1 - 5. Fix the edge of Top slide chute (J) and the Middle slide chute (V) by using bolt (M) x 2.
  • Page 6 2 - 3. Turn Figure 2 to the back side and fix Middle slide chute (V) and Bottom slide chute (W) by using the steel plate (X) x 1 and bolt (Q) x 2. (Figure 3) (Figure 3) 2 - 4. Fix the edge of the Middle slide chute (V) and the Bottom slide chute (W) by using bolt (M) x 2.
  • Page 7 3 - 3. Fix the edge of the slide chute of Step 1 and Step 2 by using bolt (M) x 2. (Figure 3) (Figure 3) Step 4 Assembling the Handrail tube 4 - 1 . Make the handrail tube (L) go through the Top slide chute (J) by using bolt (B) x 1 + washer (D) x 1+ spring washer (E) x 1 and domenut (F) x 1.
  • Page 8 5 - 2. Make the adjustable bar (Z) without rubber pad go through the Top slide chute (J). 5 - 3. Fix the adjustable bar (Z) with rubber pad onto the wall of the ladder and adjust the length of the adjustable bar (Z) to make sure its firmly. Page 8 of 9...

  • Page 9: Care And Maintenance

    Care and Maintenance 1. This equipment must be assembled and checked by an adult. 2. Regularly check all nuts and bolts for tightness before use and replace any worn, defective or missing parts. DO NOT try to repaire broken parts. 3.
