Summary of Contents for FIPA GS01.004

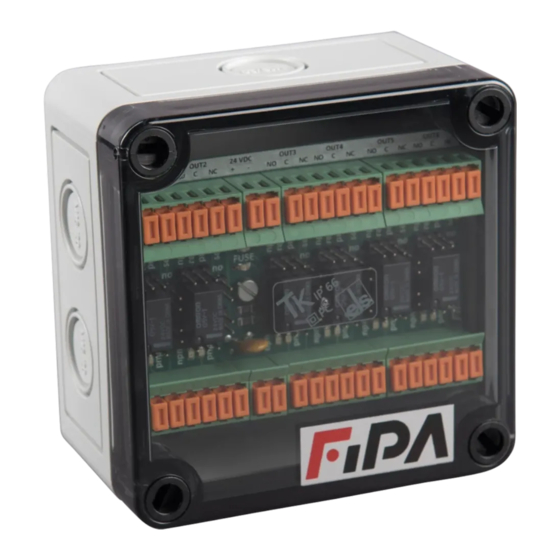

- Page 1 Operating instructions Sensor-relay-switchboxes GS01.004 GS01.006 GS01.008 GS01.012...
- Page 2 EC Declaration of Conformity In accordance with the EC Machinery Directive 2006/42/EC of May 17, 2006, Annex II B FIPA GmbH Freisinger Str. 30 85737 Ismaning hereby confirm that the products: GS01.004 GS01.006 GS01.008 GS01.012 do not contain any toxic substances that are specified in the RoHS Directive 2011/65/EU.
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION 2. SAFETY 3. TRANSPORT INSTRUCTIONS 4. STORAGE 5. INSTALLATION 6-11 6. TECHNICAL DATA 7. MAINTENANCE INSTRUCTIONS 8. OTHER DOCUMENTS SYMBOLS Attention! Please observe without fail! Failure to comply can cause damage to the component, damage to the connected system/machine or personal injury. -
Page 4: Introduction
Technical Sales department (+49 89 962489-0). FIPA consistently strives to develop and improve the design and construction of its vacuum compo- nents. We therefore reserve the right to make changes to the design and technical features without notice. -
Page 5: Safety
Sensor-relay-switchboxes 2. SAFETY Read these operating instructions carefully before initial commissioning and observe the following safety regulations. The sensor switchbox may be operated and maintained only by personnel who have read these operating instructions and fully understood their content. Append these operating instructions to your general operating instructions for the system/machine as a whole. -
Page 6: Storage
There are no voltage drops at PN transition points. > Additional tool: Screwdriver 5.1. FITTING CABLE GLANDS With the small GS01.004 switchbox, cable glands can only be fitted on the top and bottom. With the larger GS01.006/GS01.008/GS01.012 switchboxes, all four sides can be connected. Kopf- /Fußseite Anschluss... - Page 7 Sensor-relay-switchboxes interests of clarity. First, fit the sensor cables. Each sensor input consists of a terminal for +24 VDC (brown), sensor signal IN (black) and earth (blue). Important: The circuit board terminals do not require soldering, screwing or insulation stripping. Remove the outer insulation of the sensor cable only! The colored insulation on the individual wires must not be removed, but the uninsulated wires are inserted into the upper, extended part of the slot once the corresponding push-button actuator has...
- Page 8 Sensor-relay-switchboxes The following illustration shows the labelling on the circuit board(s), in particular the labelling on the jumper contacts. In the following example, six sensors have been connected. The first sensor and the third to the sixth sensor are PNP type, while the second is an NPN sensor: The jumpers are inserted in such a way that the center contact pin is connected with the left (NPN) or the right (PNP) contact pin in each case.
- Page 9 Sensor-relay-switchboxes In the example, the first four and the last two sensors are to be connected by an AND-operation. Groups I and II are formed. First the type of output signal must be established. This is determined by the design of the digital inputs on the control system to which the switchbox is connected.
- Page 10 Sensor-relay-switchboxes To do this, a jumper is connected to the first relay of the group: The other contact pins above the relay remain free! (In the example, the sensor switchbox is connected to a control system with PNP inputs. For a control with NPN inputs, the left and center contact pins would have to be connected.) The next step is to make the connection for the AND-operation itself.
- Page 11 Sensor-relay-switchboxes Please note that no jumper is inserted on the 4th and 6th relays. While a jumper on the 6th relay would not have any effect, a jumper on the 4th relay would connect group I to group II! This is not what is required. 5.5.
-
Page 12: Technical Data
Cable cross-section: 0.22..0.34 mm² (AWG 22..26), wire Ø ≤1.8 mm Dimensions Item no. A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] GS01.004 GS01.006 GS01.008 GS01.012 Technical data Item no. Weight [kg] Protection category Protection method GS01.004 0.177... -
Page 13: Maintenance Instructions
Sensor-relay-switchboxes 7. MAINTENANCE INSTRUCTIONS The maintenance instructions must be followed precisely to ensure that the system functions safely. If faults are detected in the system, they must be rectified immediately, before the sensor switchbox is put into operation. > During service work, the switchbox must be disconnected from the voltage supply and secured to prevent reconnection. -
Page 14: Other Documents
Sensor-relay-switchboxes 8. OTHER DOCUMENTS Circuit diagram: ID C 0 ,3/2-3,81 ID C 0 ,3/2-3,81 MBR1 40SFT 1G G ND G ND PT C L E D rt L E D gn X 23 Br ücke 3p. G ND G ND L E D ye RE L 1A G ND... - Page 15 Sensor-relay-switchboxes Notes...
- Page 16 Headquarters: FIPA GmbH Freisinger Straße 30 85737 Ismaning / Germany Phone +49 89 962489-0 +49 89 962489-11 info@fipa.com | www.fipa.com FIPA Inc. FIPA Ltd. 1855 Evans Road 1338/939 Supalai Prima Riva Building Cary, NC 27513 / USA Rama 3 Road...
