Summary of Contents for Adaptive Recognition Carmen Box
- Page 1 Carmen Box Installation Guide This guide contains an overview of the hardware and required components, suggested scenarios and step-by-step guide for installation, and safety and maintenance instructions. © Copyright Adaptive Recognition Inc. 14.03.2023. All rights reserved.
-
Page 2: Table Of Contents
Carmen Box Installation Guide Carmen Box Install Guide Document version: 2023.03.14. Table of Contents Hardware overview ........................3 Required components ....................... 5 Device Installation ........................6 3.1. Acessing the web interface ....................7 Safety ............................8 Appendix............................ 9 5.1. Installing the MicroSD card ....................9 Reset to factory default .................... -
Page 3: Hardware Overview

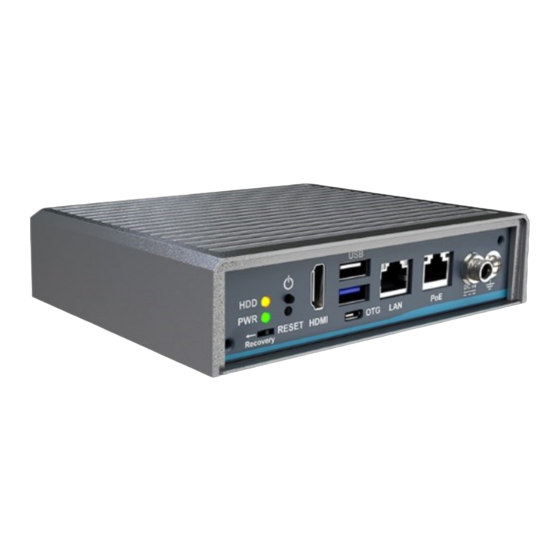

Carmen Box Installation Guide HARDWARE OVERVIEW Page 3/14 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic Adaptive Recognition Hungary Adaptive Recognition Singapore WWW.ADAPTIVERECOGNITION.COM... - Page 4 Do not use it. If you forget the device’s password, see “Reset to factory default” section. Recovery switch Do not use it. Removes the Carmen Box software from the device. HDMI Do not use it. There is not any useful info/image on this port.
-
Page 5: Required Components
Carmen Box Installation Guide REQUIRED COMPONENTS In the box: • Carmen® BOX • Power adapter/cord (12 VDC, 5 A) • Wall Mounting Kit Assets to be provided by the Customer: • Philips screwdriver for SD card installation • Tools for applied mounting Page 5/14 REQUESTINFO@ADAPTIVERECOGNITION.COM... -
Page 6: Device Installation
Consider the temperature tolerance and IP protection of the device ( -30°C to +60°C; IP40). a. Provide uninterruptible power to the device’s power supply. The Carmen Box device cannot work with PoE power supply. However, it can provide PoE power to the connected camera. -
Page 7: Acessing The Web Interface
3. After signing in, the web interface of the device is displayed on which the required s ettings can be performed. Default IP Address Carmen Box – by default – obtains its IP address from the local DHCP server. A second link-local IP address is always present on the primary network interface. Link-Local IP Address The IP address of the device is displayed on the product sticker at the bottom of the device. -
Page 8: Safety
Carmen Box Installation Guide SAFETY The device has an IP40 protection rating and must be installed in an electrical cabinet with appropriate protection for outdoor use. All screws should be hand- tightened! Do not overtighten the screws. Failures due to inappropriate installation void the warranty. -
Page 9: Appendix
Carmen Box Installation Guide APPENDIX 5.1. INSTALLING THE MICROSD CARD Step 1: Turn off the system, and unplug the power adaptor. Step 2: Turn the system upside down to locate screws at the bottom side as red marked and loosen four screws. - Page 10 Carmen Box Installation Guide Step 9: Mount the bottom cover, and tighten the 4 screws. Plug the power adaptor and the system automatically turns on. Step 10: After login, select MicroSD card as a storage media in System/Storage menu. Page 10/14 REQUESTINFO@ADAPTIVERECOGNITION.COM...
-
Page 11: Reset To Factory Default
Carmen Box Installation Guide 5.2 RESET TO FACTORY DEFAULT If you forget the password for the “admin” user, you will need to reset the device to factory default settings. In this case, do the following: Connect a USB keyboard to the device... -
Page 12: Position Of The Sticker
Carmen Box Installation Guide 5.4 POSITION OF THE STICKER The device data sticker is located at the bottom of the product and contains the following information: • Product name • MAC Address • Link-local IP • Serial Number Page 12/14 REQUESTINFO@ADAPTIVERECOGNITION.COM... -
Page 13: Wall Mount Bracket Dimension (Screw: M3 *4L 4Pcs)
Carmen Box Installation Guide 5.5 WALL MOUNT BRACKET DIMENSION (SCREW: M3 *4L 4PCS) Page 13/14 REQUESTINFO@ADAPTIVERECOGNITION.COM Adaptive Recognition America Adaptive Recognition Nordic Adaptive Recognition Hungary Adaptive Recognition Singapore WWW.ADAPTIVERECOGNITION.COM... -
Page 14: Contact Information
Web: adaptiverecognition.com/support/ Adaptive Recognition Hungary Technical Support System (ATSS) is designed to provide you the fastest and most proficient assistance, so you can quickly get back to business. Information regarding your hardware, latest software updates and manuals are easily accessible for customers via our Documents Site (www.adaptiverecognition.com/doc...
