Summary of Contents for Matrix MCR5000 Series

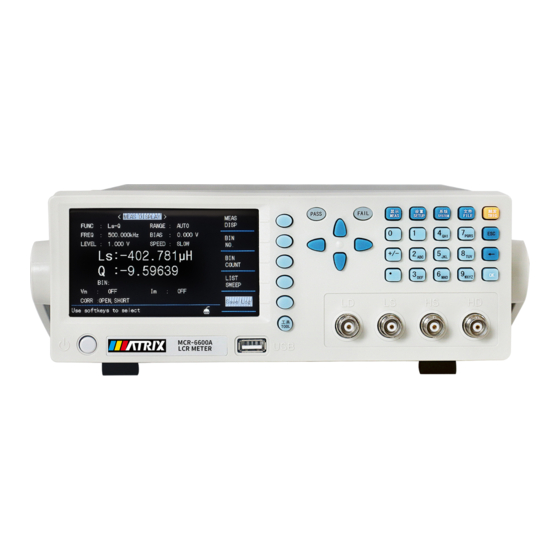

- Page 1 MCR METER Manual MCR5000 SERIES USER MANUAL MCR5010 MCR5030 MCR5100 MCR5200 MATRIX TECHNOLOGY INC.
-
Page 2: Table Of Contents
MCR METER Manual Chapter 1 Instrument inspection and preparation ---------------------------------2 1.1 The crates ------------------------------------------------------------------2 1.2 Power connection ------------------------------------------------------------3 1.3 Fuse and toggle switch ------------------------------------------------------3 1.4 Environmental requirements --------------------------------------------------3 1.5 Test fixture requirements ---------------------------------------------------3 1.6 Accuracy guarantee ----------------------------------------------------------4 Chapter 2 Introduction ----------------------------------------------------------4 2.1 Front panel description -----------------------------------------------------4 2.2 Rear panel description ------------------------------------------------------5 2.3 Basic operation -------------------------------------------------------------5... -
Page 3: Chapter 1 Instrument Inspection And Preparation
MCR METER Manual Chapter 1 Instrument inspection and preparation Please be sure to check the receipt of the instrument, and must understand and have the condition before using the instrument. 1.1 The crates After receiving the product, it is found that the packing is badly damaged. Please keep it until it is normal for the whole machine and the accessories. -
Page 4: Accuracy Guarantee
MCR METER Manual is in good contact. The test fixture or test cable is connected to the HD, HS, LS and LD of the front panel of the instrument. The shield layer can be connected to the rear panel of the instrument, and the shield layer can be connected with the rear panel of the instrument. -
Page 5: Front Panel Description
MCR METER Manual 2.1 Front panel description 8 10 11 12 13 14 15 MEAS SETUP FILE TRIG PASS FAIL SYSTEM PQRS WXYZ TOOL GF10 GUOFENG ELECTRONICS LCR METER 1. Power switch 2. Instrument type label 3. USB interface 4. Tool key 5. -
Page 6: Basic Operation
MCR METER Manual 2.3 Basic operation 1. Direction key: used to move the cursor. 2. Soft keys, used to change the parameters set of features. Shortcut menu: MEAS, SETUP, SYSTEM, FILE, press directly into the < MEAS DISP >, < MEAS SETUP >, <... - Page 7 MCR METER Manual Rs: Series equivalent resistance(ESR)) Rp: Parallel equivalent resistance(EPR) D : loss Q : quality factor R : resistance X : reactance Zs: Series equivalent impedance θ: angle r : angle RANGE：AUTO，HOLD，INCR +，DECR - FREQ：Set frequency MCR5010 : 100Hz，120Hz，1kHz，10kHz, MCR5030：100Hz,120Hz,1kHz,10kHz，20kHz，30kHz MCR5100: 50Hz，60Hz，100Hz，120Hz，1kHz，10kHz, 20kHz，40kHz，50kHz，100kHz MCR5200: 40Hz、50Hz、60Hz、80Hz、100Hz、120Hz、150Hz、200Hz、250Hz、300Hz、...
-
Page 8: Bin Disp > (Mcr5010 No This Feature)
MCR METER Manual Vm ON/OFF ：Open or close voltage monitoring function Im ON/OFF ：Open or close current monitoring function 3.2 < BIN DISP > (MCR5010 no this feature) This page can be set as follows: COMP ON/OFF ：to open or close the comparison function AUX ON/OFF ：to open or close AUX. -
Page 9: Commsetup
MCR METER Manual NO SAVE : Each boot display parameters for the default configuration of the instrument. PassWord ：OFF,LOCK SYSTEM,LOCK FILE,MODIFY,SAVE TO U_DISK OFF : No password LOCK SYSTEM : File and boot need password to perform the operation ... -
Page 10: Chapter 4 Performance
MCR METER Manual The parameters set by the user in form of a file stored in the instrument internal non-volatile memory, when the next time you want to use the same settings, users do not need to set these parameters, only need to load the appropriate file, the last set of parameters are obtained. Thus greatly saving the time for the user to re set the parameters and improving the production efficiency. -
Page 11: Range
MCR METER Manual 4.1 Range In 100 ohm source resistance, using a total of 5 range: 31.6Ω，100Ω，1kΩ，10kΩ,100kΩ In 30 ohm source resistance, using a total of 6 range : 10Ω，30Ω，100Ω，1 kΩ，10 kΩ,100 k Ω The effective measurement range of each range is shown in the following table. - Page 12 MCR METER Manual Accuracy of D The accuracy of De about D is expressed by the following formula: ± When D ≤0.1, D When D >0.1 ，D *(1+D Accuracy of Q The accuracy of Qe about Q is expressed by the following formula： ×...
- Page 13 MCR METER Manual 10pF 100kH 10kH 100fF 10fF 100H [OHM] 100M 100pF 100n 1.5M 10nF 100mH 100k 100nF 10mH 100u 10uF 100uH 100uF 10uH 100m 0.25 0.35 10mF 100nH 100m 100mF 0.65 10nH 50Hz 100Hz 1kHz 10kHz 100kHz 200kHz Figure 4-1 Basic measurement accuracy: A Figure 4-1, in the junction line, can choose a smaller value.
-
Page 14: Chapter 5 Handler Interface
MCR METER Manual spee frequency （Zm < 500Ω） （Zm > 500Ω ） − × fm<100Hz − × MED, 100Hz≤fm − × × − ≤100kHz fm>100kH − × − × × − fm<100Hz − × 100Hz≤fm × − − × FAST ≤100kHz fm>100kH −... - Page 15 MCR METER Manual realize the automatic sorting test. Table 5-1 Pin definition table for Handler interface Signal Described number name Sorting result output. All signal with pull up resistor collector output. Up pull supply can choose the internal +5V power supply, or external power supply EXTV (factory default).
- Page 16 MCR METER Manual Figure 5-1 Handler interface pin definition Figure 5-2 Timing diagram of interface signal Description: Time Minimum Maximum value value T1 : Trigger pulse width T2 : Measurement start delay time 200us Display time + 200us T3 :Trigger wait time after /EOT output...
-
Page 17: Chapter 6 Operation Example
MCR METER Manual Figure 5-3 Schematic diagram of Handler interface signal When the internal power supply is used, the 1 and 2 of the J205 are connected; the 1 and the 2 of the J204 are connected. When using an external power supply (factory default), the 2 and 3 of the J205 are connected;... -
Page 18: Set Sorting
MCR METER Manual Select "YES", the instrument will enter a short circuit cleared process, if the short circuit failure, will jump to the second step to re ask；Note: When performing SHORT operation, must ensure that the test fixture is short. 4. -
Page 19: Appendix: List Of Parameters Of Various Models
MCR METER Manual 5. Move the cursor to "COMP", open the comparison switch. Appendix: list of parameters of various models Measurement function MCR test parameters | Z|, |Y|, C, L, X, B, R, G, D, Q, θ MCR5010 ：100Hz,120Hz,1kHz,10kHz MCR5030 ：100Hz,120Hz,1kHz,10kHz，20kHz，30kHz MCR5100 ：50Hz,60Hz,100Hz,120Hz,1kHz,10kHz, 20kHz,40kHz，... - Page 20 MCR METER Manual...
