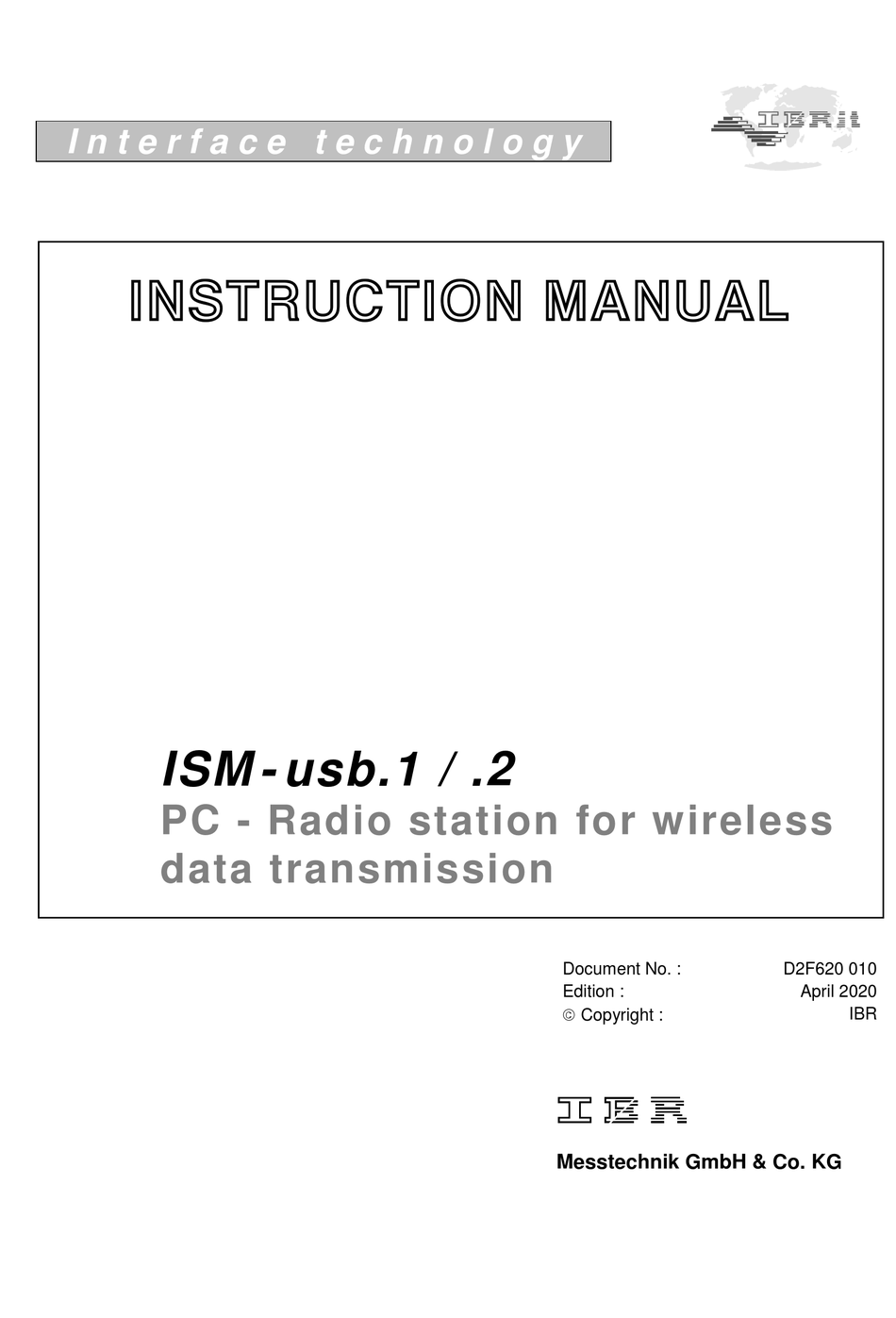

- Page 1 I n t e r f a c e t e c h n o l o g y INSTRUCTION MANUAL ISM - usb.1 / .2 PC - Radio station for wireless data transmission Document No. : D2F620 010 Edition : April 2020 ...
-
Page 2: Table Of Contents
IBR is not obliged to notify buyers of product changes. IBRit is a registered trademark of IBR. Windows, EXCEL and Word are registered trademarks of Microsoft Corporation. This document must not be reproduced, in part or in its entirety, without the prior written consent from IBR. -
Page 3: Introduction
ISM – usb.1 / .2 Manual 1. Introduction 1.1 General information The IBRit-rf1 and ISM radio module series allow the wireless transmission of measurement data from gauges to a PC with USB - interface or to an IMB-rf1 / IMB-ISM module ( as the case may be ). On the PC side the wireless communication with the gauges occurs via the ISM-usb PC - Radio station. -
Page 4: Features
High data security by double and independent check sum control Optical and acoustical transmission confirmation by the radio modules Radio range of the ISM-usb.1 up to 300 m in case of visual contact ( with external antenna ) 1.3 Technical data Mechanical characteristics ISM-usb.1 Case... -
Page 5: Getting Started
PC with USB - interface and operating system Windows 2000 … Windows 10. 2.3 Installation of the USB - driver for the ISM-usb PC - Radio station The driver installation package is located on the CD-ROMs ‚IBR Support Software‘ and ‚Software for Metrology and SPC‘ in the directory <CDROM>:\USB-Driver\IMB-USB_RF1-USB\IMB-USB_RF1-USB_inst.exe. -
Page 6: Installation And Initial Operation Of The Ibr_Simkey Pc Software
Please insert the CD ( that is included in the delivery of the ISM-usb PC - Radio station ) into your CD – drive and open the folder IBR_Simkey or download the software from http://www.ibr.com/download/IBR_SIMKEY.zip and extract the ZIP file. - Page 7 On initial operation of the software both the message box and the window shown above are displayed in the language of the Windows operating system. Now, please select the entry USB as setting for the PC-Connection. Afterwards please select the entry IBR-ISM as setting for the IBR-Instrument.
- Page 8 ISM – usb.1 / .2 Manual When the selections concerning the PC - connection and the IBR - instrument have been made, the columns Connection and Gauge / Sensor are filled and displayed as shown below. Note : If a (*) appears behind the entry IBR-ISM, then the ISM module was not found ( e.g.
-
Page 9: Programming Of Gauge Radio Modules By Using The Ibr_Simkey Pc Software
ISM – usb.1 / .2 Manual Description of the display window : Address - Displays the sender - address of the last transmitted measurement dataset. Measurement value - Displays the measurement value of the last transmitted measurement dataset. Language - List of languages available for selection. Displays the current setting. Resolution - List of resolutions available for measurement value display. - Page 10 ISM – usb.1 / .2 Manual In the upper left - hand area of the programming window you can find the selection column containing the commands available for programming. The selection column containing the appropriate parameters is located directly to the right of it. For programming please select the command to be executed and then the desired parameter.
- Page 11 ISM – usb.1 / .2 Manual Overview of commands for programming gauge radio modules ( continuation ) : Command Description Values ( range ) Time delay for data request Defines the time delay between the triggering of the From 0 to 2.4 measurement data request ( e.g.
- Page 12 ISM – usb.1 / .2 Manual ISM Permanent Mode : Additionally you can change the data transmission rate of the ISM radio modules from 9600 baud 230400 baud ( see table on page 11 RF data rate ). With this data transmission rate the ISM Permanent Mode can be used which allows you to transmit measuring values automatically every time the value changes.
- Page 13 ISM – usb.1 / .2 Manual The following window will open. There you can select the required data transmission rate : Note : This is the setting for the radio receiver. Because of this the RF data rate has to be changed in the setup window of one address only.
-
Page 14: Confirmation Signals Of The Gauge Radio Modules
ISM – usb.1 / .2 Manual Overview of commands ( continuation ) : Command Description Values ( range ) ISM- ISM- cab1 prox mit1 opto mahr s233 - Threshold for starting This determines how big the change of off / ... -
Page 15: Signal Strength Measurement
( see chapter 2.3 and 2.4 ). Start the IBR_SimKey software and open the dialogue to configure the connected IBR hardware. Please select USB as PC-Connection and IBR-ISM as IBR-Instrument. Then click the Service button to enter the service dialogue of the IBR-ISM module :... - Page 16 ISM – usb.1 / .2 Manual Now, please click Spectrum analysis to start the RSSI analysis : The dialogue shows the current signal strengths in the used frequency range. In this way you can see if there are additional radio signals in the frequency range which might prevent the radio receiver from receiving the measuring values or superimpose its radio signal.
-
Page 17: Important Conditions Concerning The Use Of Ibr_Simkey Pc Software
6. In no event IBR will be liable for any damages including lost profits or any special, indirect, incidental or consequential damages arising out of the use or inability to use the product, whether claimed under the safety instructions or otherwise. -
Page 18: Safety Instructions
IBR is not obliged to notify buyers of product changes. IBRit is a registered trademark of IBR. Windows, EXCEL and Word are registered trademarks of Microsoft Corporation. This document must not be reproduced, in part or in its entirety, without the prior written consent from IBR. -
Page 19: Declaration Of Conformity
1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation. Warning : Changes or modifications made to this equipment not expressly approved by IBR may void the FCC authorization to operate this equipment. -
Page 20: Guarantee
ISM – usb.1 / .2 Manual Guarantee The quality of this instrument is guaranteed for a period of 12 months from the date of delivery. This guarantee covers all material and manufacturing defects. Our liability is limited to product repair services or, should we deem it necessary, replacing or crediting the goods.
