Summary of Contents for SUNGOO SUNGO-OPT

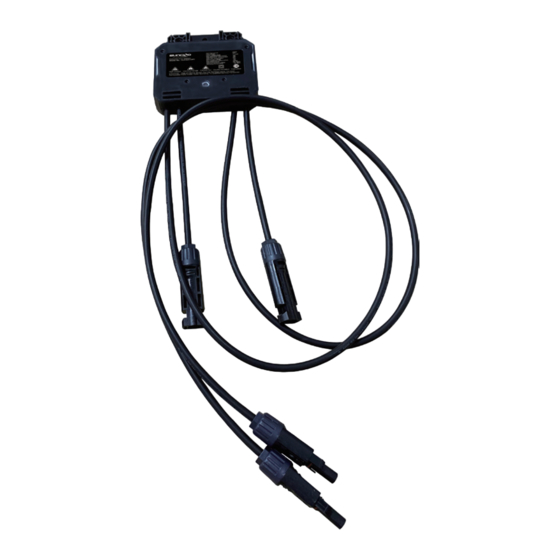

- Page 1 Installation Manual of Module-level Power Optimizer （SUNGO-OPT） Jiangsu Sungo Power Technology Co.,Ltd. E-mail: sales@sungoess.com Web: www.sungoess.com...
- Page 2 GO WITH SUNSHINE CONTENT IMPORTANT SAFETY PRECAUTIONS This manual includes installation instructions for module-level power DO NOT open, disassemble or repair Important Safety Precautions o p t i m i z e r S U N G O O P T ， f r o m SUNGO OPT, for your life security.
- Page 3 GO WITH SUNSHINE GO WITH SUNSHINE ABOUT POWER OPTIMIZER TECHNICAL SPECIFICATIONS - SUNGO-OPT Model SUNGO-OPT DC input Max input power 600W Max voltage MPPT voltage range 7 ~ 60V Max continuous input current Max input short-circuit current Night self-consumption DC output...
- Page 4 GO WITH SUNSHINE GO WITH SUNSHINE INSTALLATION INSTRUCTIONS 4.1 Tools 4.2 Steps Following tools would be needed for installation, check and replace: Step 1 Shut down PV inverter, disconnect PV modules from arrays and strings. CATALOGUE CATALOGUE Step 2 Install Sungo OPTs on the frame of PV modules. Phillips screwdriver Allen wrench Connect to...
- Page 5 GO WITH SUNSHINE GO WITH SUNSHINE Step 3：connect input cables Step 4：connect output cables into strings After connection of input cables, connect output cables SUNGO OPTs’ in serial. The pair of cables marked as “+IN-“ on the shell are input cables (the shorter pair), connecting to output terminals of PV modules(PV+ and PV-).
- Page 6 GO WITH SUNSHINE GO WITH SUNSHINE 5.Aftersales Service and Warranty 6. CERTIFICATION 5.1 Warranty Sungo products are designed to withstand normal operating conditions when used for its originally intended purpose in compliance with the Sungo User Manual supplied with the originally shipped system. The Sungo limited warranty (“Limited Warranty”) covers defects in workmanship and materials of the Sungo products (“Defective Product”).
