  • Page 1 CASA R4881_V1_2021...

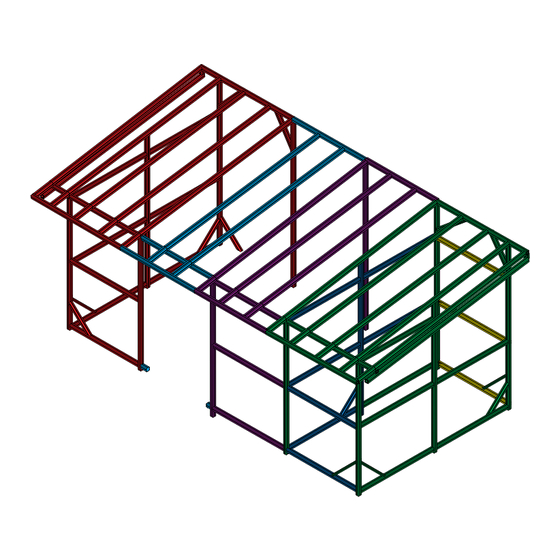

  • Page 2 Gable section Le (standard kit) Gable section Right (standard kit) Center section 00 (standard kit) Center section 01 (not included) Partituon kit 01 (not included) Veranda kit 01 (not included)

  • Page 3: Table Of Contents

    Build up the - Veranda kit 01 ..............................39 Standard instruction ..................................4 Standard kit ..................................... 6 CASA 480 - 600 - 720..................................8 Center section 01 - not included ................................9 Partituon kit 01 - not included ................................10 Veranda kit 01 - not included ................................11 Standard frame - Back side .................................12...

  • Page 4: Standard Instruction

    Standard instruction...
  • Page 5 209 cm º 236 cm º 258 cm 213 cm 258 cm 2 x Ø8 2 x Ø8 116 cm 116 cm 246 cm 272 cm 152 cm 152 cm 4 cm º 34 cm 26 cm 51 cm º º...

  • Page 6: Standard Kit

    Standard kit d kit...
  • Page 7 Gavl L Gavl R Center 00 Center 01 Door Kit Divider kit 01 Veranda kit 01 Gavl L Gavl R Center 00 Center 01 2090 mm 2090 mm 2360 mm 2360 mm 2360 mm 2580 mm 2580 mm 2130 mm 2130 mm 2130 mm 2580 mm...

  • Page 8: Casa 480 - 600 - 720

    CASA 480 - 600 - 720 CASA...

  • Page 9: Center Section 01 - Not Included

    Center section 01 - not included Center 01 Screw 4,5x80 Screw 4,5x120 EndCap Lock 213 cm 258 cm 116 cm 2 x Ø8 2 x Ø8 116 cm 246 cm 26 cm...

  • Page 10: Partituon Kit 01 - Not Included

    Partituon kit 01 - not included Divider kit 01 Screw 4,5x80 Screw 4,5x120 EndCap EndCap half Profil Lock 1 set 236 cm º 2 x Ø8 2 x Ø8 116 cm 116 cm 2 x Ø8 116 cm 116 cm...

  • Page 11: Veranda Kit 01 - Not Included

    Veranda kit 01 - not included Veranda kit Screw 4,5x80 Screw 4,5x120 EndCap half Profil Lock 1 set 116 cm 2 x Ø8 116 cm 116 cm...

  • Page 12: Standard Frame - Back Side

    Standard frame - Back side...

  • Page 13: Standard Frame -Right Side

    Standard frame -Right side...

  • Page 14: Standard Frame - Front

    Standard frame - Front...

  • Page 15: Standard Frame - Left Side

    Standard frame - Left side...

  • Page 16: Standard Frame - Roof

    Standard frame - Roof...

  • Page 17: Build Up The Back Side

    Build up the back side...
  • Page 18 End CAP 40 cm 40 cm 40 cm 40 cm 40 cm 40 cm 40 cm 40 cm 40 cm CASA 360 CASA 480 CASA 600 CASA 720 258 cm 258 cm 152 cm 152 cm End Cap 120 cm...

  • Page 19: Build Up The - Roof

    Build up the - Roof Roof Roof back Roof front 180 º...

  • Page 21: Build Up The - Right Side

    Build up the - Right side EndCap 10 º EndCap 10 º 209 cm º 236 cm º End Cap 116 cm...

  • Page 22: Build Up The - Front

    Le side Right side EndCap EndCap Le side Center Right side EndCap Right side Le side Center CASA 360 CASA 480 CASA 600 CASA 720 CASA 360 CASA 480 CASA 600 CASA 720 209 cm º 213 cm End Cap...

  • Page 23: Build Up The - Left Side

    Build up the - Left side EndCap 10 º 236 cm º End Cap 116 cm...

  • Page 24: Placement On The Floor

    Placement on the floor 120 cm 120 cm 120 cm CASA size 360 indside to inside 120 cm 120 cm 120 cm CASA size 480 120 cm 120 cm 120 cm 120 cm CASA size 600 120 cm 120 cm...
  • Page 25 4,5x80 4,5x120 4,5x80 4,5x120 EndCap 10 cm º...

  • Page 26: Build Up The - Roof Frame

    Build up the - Roof frame Ø6 Ø6 Lock Lock Ø6 Ø6 Lock Lock Ø6 Ø6 Lock Lock CASA 360 CASA 480 x 10 CASA 600 x 12 CASA 720 Lock 246 cm...
  • Page 27 Ø6 Lock Ø6 Lock Ø6 Lock Ø6 Lock CASA 360 CASA 480 CASA 600 CASA 720 Lock 246 cm 34 cm...
  • Page 28 Le side Right side 10 x Le side Lock Right side Lock x 10 CASA 360 x 13 CASA 480 x 16 CASA 600 x 19 CASA 720 EndCap 26 cm...
  • Page 29 Le side Lock Lock Right side Le side Right side...
  • Page 30 Lock Lock 10,5 º EndCap Lock 272 cm...
  • Page 31 12 x 152 cm 152 cm 120 cm...
  • Page 32 º...
  • Page 33 loose screws Tighten screw EndCap...

  • Page 34: Ventilation Frame

    Ventilation frame...

  • Page 35: Build Up The - Center Section 01

    Center 01 Build up the - Center section 01 Screw 4,5x80 Screw 4,5x120 EndCap Lock 213 cm 258 cm 116 cm 2 x Ø8 2 x Ø8 116 cm 246 cm 26 cm...
  • Page 37 Screw 4,5x80 Screw 4,5x120 EndCap Lock 213 cm 258 cm 116 cm 2 x Ø8 2 x Ø8 116 cm 246 cm 26 cm...
  • Page 38 Ø6 Lock Ø6 Lock Ø6 Lock º 4,5x120 4,5x80 4,5x80 4,5x80 4,5x120 4,5x80 4,5x80...

  • Page 39: Build Up The - Veranda Kit 01

    Build up the - Veranda kit 01...
  • Page 41 116 cm 2 x Ø8 116 cm 116 cm Screw 4,5x80 Screw 4,5x120 EndCap P rofil 1190mm...
  • Page 42 4,5x120 4,5x80 4,5x120 4,5x80...

  • Page 43: Build Up The - Partituon Kit 01

    Build up the - Partituon kit 01 Center 01...
  • Page 45 236 cm º 2 x Ø8 2 x Ø8 116 cm 116 cm 51 cm º º 2 x Ø8 116 cm 116 cm Screw 4,5x80 Screw 4,5x120 EndCap EndCap Profil...

  • Page 46: Partituon Kit - Closed

    Partituon kit - closed 10 º Fron standard Kit Fron standard Kit...

  • Page 47: Partituon Kit - Open

    Partituon kit - open 10 º From Door kit (standard) Fron standard Kit From Door kit (standard) Fron standard Kit...
