ATTACHING THE RAIN FLY

1. The tent must be free standing with all five (5) walls popped out
and the ROOF COLLAPSED. [ SEE FIGURE 10 ]
NOTE: It's important that the roof is collapsed to prevent
bending of pole ends.
2. Slide the rain fly loosely over the tent roof. The short connecting
poles should be on the underside of the rain fly.
3. Starting at one corner, insert the male end of the short poles
attached to the rain fly into the female end of the roof pole on
each tent corner. Repeat this for all six corners. [ SEE FIGURE 11 ]
4. Enter the tent and push up to pop up the roof panels.
NOTE: This step should be done with caution as there is tension
on the roof hub and pole assemblies.
5. Outside the tent, fasten the plastic hooks to the eye bolt of the
respective wall panel. [ SEE FIGURE 12 ]
REMOVING THE RAIN FLY — MUST FOLLOW INSTRUCTIONS TO PREVENT POLE ENDS BENDING!
1. VERY IMPORTANT! Unhook the plastic hooks from each hub.
2. From inside the tent, gently pull the roof poles/hub down to collapse the roof. DO NOT stand directly underneath the hub when
collapsing.
3. One at a time, pull the rain fly poles straight out of the roof pole sockets.
4. Slide the rain fly off the tent.
5. Fold the rain fly and store in the duffle bag.
NOTE: Make sure the rain fly is clean and dry before folding and storing.

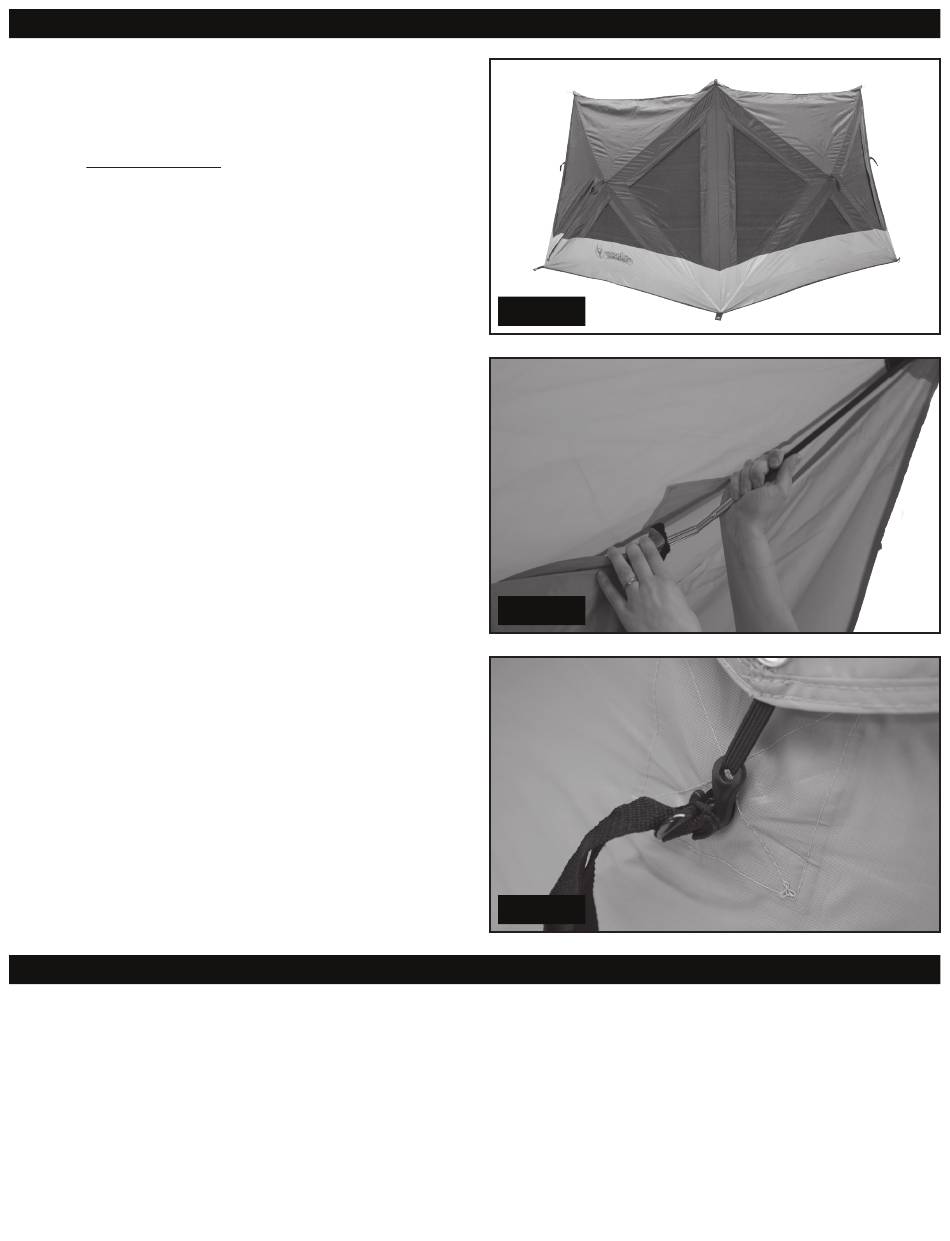

FIGURE 10
FIGURE 11
FIGURE 12
