BLACKPOINT X32 - Car Audio Manual

FEATURES

Wireless BT connection
LCD display
FM Radio
USB/SD
Digital clock
AUX-in
Charge up mobile
10Wx4 max output

SPECIFICATIONS

Detachable
12p connector
Size: 17.8 x5x8.5cm

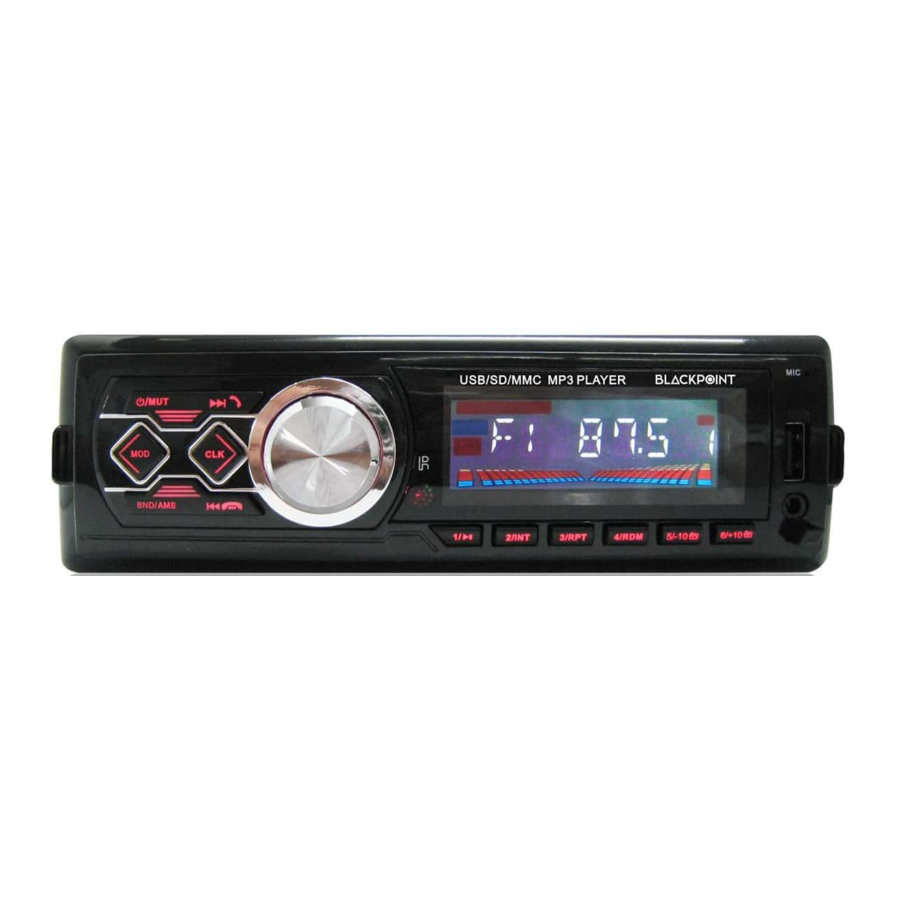

FRONT PANEL

MAIN FUNCTION

1. SD/MMC/USB/MP3 compatible play system
2. Support big capability mobile hard disk play function
3. Total figure radio tuning system
4. Electronic volume control
5. Real-time clock function
6. LED/LCD display
7. High power output
8. RCA line out RCA

BASIC OPERATIONS

1. /MUT: Long press this button to power on and mute, short press to power off.
2. MOD: press this button to choose different mode. FM—USB—SD-BT.
3. : During radio mode, brief press this button to autosearch stations forward, long press to manual search station forward. During playback mode., short press to play previous song, long press to go fast forward. In BT station, brief press to answer the phone.
4. : During radio mode, brief press this button to autosearch stations backward, long press to manual search station backward. During playback mode., brief press to play previous song, long pressto go fast backward. In BT station, brief press to hang up the phone.
5. CLK: Brief press to display clock, long press to enter clock setting, using volume knob to adjust clock setting.
6. BND: Brief press to switch band range, long press to store stations.
7. 1/ : During radio mode, brief press to choose number 1 preset stations. During playback mode, brief press to pause, press again to play.
8. 2/INT: During radio mode, brief press to choose number 2 preset station. During playback mode, press to brief play each song for first 10 second.
9. 3/RPT: During radio mode, brief press to choose number 3 preset station. During playback mode, press to repeat.
10. 4/RDM: During radio mode, brief press to choose number 4 preset station. During playback mode, press to random play.
11. 5/10-: During radio mode, brief press to choose number 5 preset station. During playback mode, press to jump to previous 10 songs.
12. 6/10+: During radio mode, brief press to choose number 6 preset station. During playback mode, press to next 10 song.
13. VOL: Volume control. During playback mode, brief press to activate EQ setting, rotate volume knob to choose each preset EQ.

INSTALLATION AND REMOVING

This unit is designed to prevent the thieves, please fix carefully follow the process of installation.

INSTALLATION

Press the curving lock sheath of the unit, put the sheath into dashboard, and then push the unit into the sheath till it was locked. But sure that the unit is installed in an appropriate situation, so that the drivers can control the car normally and prevent the car from braking suddenly the passenger will be hurt.

NOTICE

1. Before the unit installation, please check the power output and check that if the unit works normally.
2. Please use the accessory we offered only, or else beget needless breakage. If you need to alter the fabric of the car, please call your seller.

REMOVING

Put the keys given into the keyholes on the two sides of the unit, until the lock is unlocked, then remove the unit with the keys.

MAINTENANCE

1. Make sure your car battery is a 12 volt.
2. Please check the installation and wire if correct, after connecting all the, wire, connect the power supply to the positive of the battery.
3. Please use cramp or tape to make the head of wire is isolated from the metal of car.
4. Please fix all the wire to avoid touch any offset objects.

CERTIFICATE OF CONFORMITY

PERFORMANCE INDEX

FM
Turning range 87.5MHZ~108MHZ
Antenna terminal connect antenna linker
Middle frequency 10.7MHZ
Practicality sensitivity <=22db
Choice >=45db(400KHZ)
Signal-to-noise radio >=50dB
Band distortion(1khz) <=5%
Separation(1khz) >=22db
Frequency response (100Hz~10kHz)±6dB

POWER AMPLIFFIER SECTION:
Output speacker output
Speaker impedance 4
Maximum power output (10Wx4)
Power supply voltage 12VDc battery
(Negative connect ground sire)
