BDA NG and BBU NG
Installation Guide
Advertisement
Table of Contents

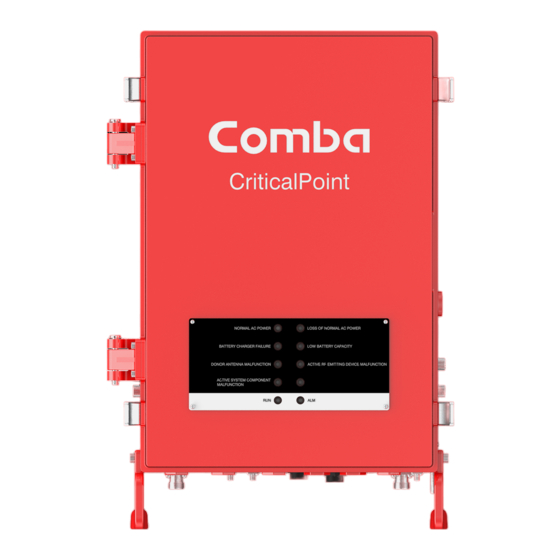

Summary of Contents for COMBA BDA NG
- Page 1 BDA NG and BBU NG Installation Guide Contents INSTALLATION ......................................2 BDA NG WALL MOUNTING ................................2 BBU NG WALL MOUNTING ................................2 BATTERY INSTALLATION ................................. 3 CONNECTION BETWEEN BDA AND BBU ............................ 4 AC INPUT AND OTHER CONNECTIONS FOR BBU ........................5 EQUIPMENT CONNECTIONS ..................................
- Page 2 Hang the equipment and secure the enclosure to the mounting rack. Figure 1: BDA NG Wall Mounting BBU NG WALL MOUNTING Drill four holes on the wall/plywood using the position of holes from battery backup unit as a guide.
- Page 3 BATTERY INSTALLATION Slide the battery into the chassis. Make sure the <AC breaker> and <Battery Breaker> are both OFF. Connect the TWO BLACK BBU/battery wire to the positive (+) battery terminal and the TWO BLUE BBU/battery wire to the negative (-) battery terminal. Install the battery retaining bracket and secure with four screws.
- Page 4 BDA AND BBU CONNECTION The complex cable connects the BDA NG and BBU NG is provided with BBU NG, as Figure 4 shows. Make sure both AC (POWER) switch and DC (Boot w/o AC) switch are OFF in the BDA, as Figure 5 shows.
- Page 5 AC INPUT AND OTHER CONNECTIONS FOR BBU Make sure the <AC breaker> is OFF in the BBU Connect the AC input into the BBU. The EPO should be either connected to an external EPO switch or shorted with a jumper (as shown in Figure 8). ...
- Page 6 EQUIPMENT CONNECTIONS BDA EXTERNAL CONNECTIONS Figure 10: Equipment Connectors Table 1: Equipment Connectors Identifier Descriptions 3/4’’: Recommended for hybrid cable (provided only from BBU NG) to connect to BBU NG Knock Out 1’’ x 1: Recommended if need to run RF cable from/to the device 1/2’’...
- Page 7 OPEN6 OPEN8 BDA NG has 5 external alarm inputs, it takes dry contact alarms from external devices and can be setup in the software to be either Normally Open to trigger or Normally Closed to trigger. The external alarm 5 is pre-configured as “Door Open Alarm”.
- Page 8 SYSTEM TURN UP PROCEDURE Confirm the connections and polarities for all AC and DC Connections. Wake up the Battery: Momentarily press the RESET button located on top of the LiFEPO4 battery to wake it up approximately 3 seconds. Once the first SOC (State of Charge) LEDs begins to illuminate, release the RESET button immediately (NOTE: Holding the RESET button longer than approximately 5 seconds will cause the battery to go back into sleep mode.
