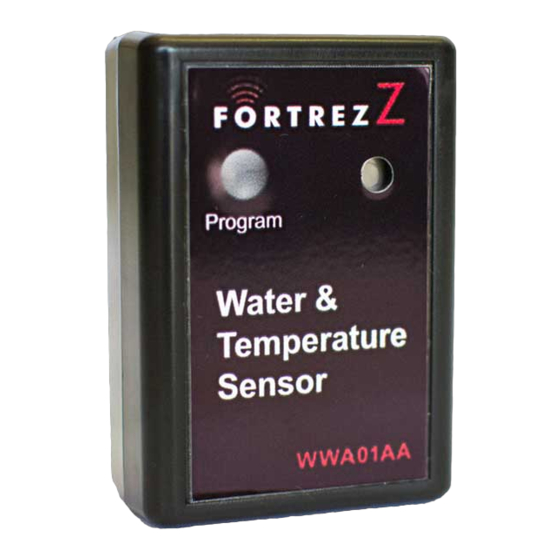

Speaks z wave WWA-01 Instruction Manual

WWA-01
Wireless Water & Freeze Alarm
Instruction Manual
Thank you for purchasing the WWA-01 Wireless Water & Freeze Alarm. This product will provide you with the peace of
mind and protection you expect. Leaking pipes, corroded water heaters, fixtures in bathrooms and laundry rooms,
refrigerator drip pans, etc. can all cause water damage. The WWA-01 is a Z-Wave
water leak alert on any Z-Wave
water leaks using the audio alarm.

Specifications:

Power:
Battery Life:
Frequency Range:
Distance Range:
Product Size (LxWxD):
Product Weight:
Operating Temperature:
Reported Temperature:
System Requirement:

Testing the WWA-01

Moisten a paper towel and place over both of the small metal pads on the water sensor until you hear the audible alarm
sound. If the audible alarm fails to sound, your battery may be old or dead or incorrectly installed, the sensor may not be
moist enough, or the water sensor may be damaged.
If you do hear the audible alarm, remove the moistened paper towel, clean the small metal pads of any water residue, and
hold the button for 2 seconds to clear the alarm. You can then add your water alarm to any Z-Wave
and controller. Examples of Z-Wave controllers are: Schlage LiNK, Leviton's Vizia-RF Wireless Home, and Hawking
Technologies "HomeRemote Pro Home Control".
Using the WWA-01 in a Z-Wave
The button in the rear casing is used for including or excluding the WWA-01
TM
in a Z-Wave network. Refer to your controller's User Manual for specific
details on network inclusion, exclusion, and association.
Inclusion in (adding to) a network: 1) Set up the inclusion mode at the controller; 2) Press the button (or hold the button
for approx. 2 seconds) until the controller indicates the unit has been included in the network. Also, a beep will be heard
when the inclusion completes. Inclusion and exclusion are always done at normal transmit power mode.
Exclusion from (removing from) a network: 1) Set up the exclusion mode at the controller; 2) Press the button for approx.
2 seconds until the controller indicates the unit has been removed from the network. A beep will also be heard when the
exclusion completes.
Awake Mode: To remain awake and listen for commands (when in a network), press and hold the button for at least 2
seconds. The WWA-01 will stay awake for approx. 30 seconds.
Associations: Once in a network, a controller can be used to associate the WWA-01 with other devices in the Z-Wave
network, such as a light or another remote audible alarm. Refer to your controller's documentation on how to associate
the WWA-01 to another device in your network. The WWA-01 supports two association groups. A maximum of 5
associated devices are allowed in each group.
The WWA-01 sends the Basic Set Command to the associated nodes assigned to Group1 to convey that a Water
Alarm is active. If no nodes are assigned to Group 1, then an Alarm Sensor report (Sensor Type 0x05) is broadcast.
The reports are sent at regular intervals while the water alarm is active. When the water alarm is cleared via the
button, one additional report (with status = no alarm) is sent.
TM
enabled network. A WWA-01 unit that is not in a Z-Wave
One 3.6V 1/2AA 1200mAh Lithium Battery, ER14250H, LS14250 or equivalent
Calculated to be 1 to 2 years with no alarms and default Z-Wave
908.42MHz (US)
Max 100ft line of sight in unobstructed environment
2.4" x 1.6" x 0.8"
0.2 lb
-10ºC (14F) to +70ºC (158F)
Reported temperature is at the unit and has a +/- 2 degC accuracy
TM
Any Z-Wave enabled network and controller.
TM
Network
Program Switch for inclusion or exclusion
520 Aarons Way
Ortonville, MI 48462
www.fortrezz.com
TM
enabled device and will send a
TM
network will still alert you to
TM
network settings.
TM
enabled network
Phone: (248) 852-1307
sales@fortrezz.com
Made in USA
