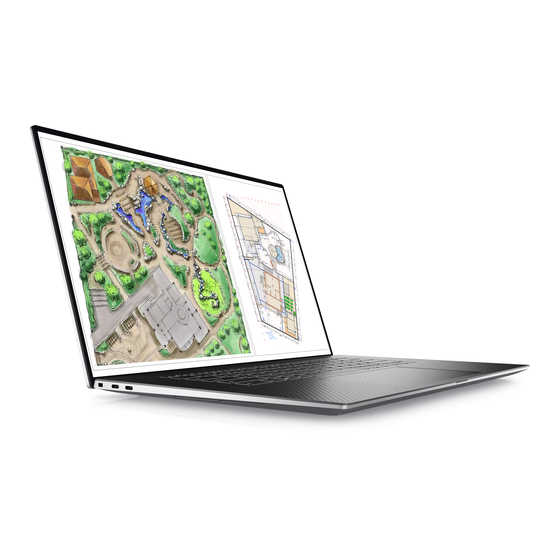

Dell Precision 5770 Technical Manualbook
Hide thumbs
Also See for Precision 5770:
- Setup and specifications (25 pages) ,
- Re-imaging manual (16 pages) ,
- Connection manual (13 pages)
Related Manuals for Dell Precision 5770
Summary of Contents for Dell Precision 5770
- Page 1 Precision 5770 Technical Guidebook Regulatory Model: P92F Regulatory Type: P92F003 March 2022 Rev. A00...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2022 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents Chapter 1: Views of Precision 5770....................5 Right....................................... 5 Left......................................5 Top......................................6 Front....................................... 7 Bottom....................................8 Service Tag................................... 8 Battery charge and status light ............................9 Chapter 2: Specifications of Precision 5770.................10 Dimensions and weight..............................10 Processor..................................... 10 Chipset....................................11 Operating system................................11... - Page 4 Software security.................................31 Fingerprint reader................................32 Trusted Platform Module............................32 System management features............................32 Dell Client Command Suite for In-Band systems management ..............32 Out of Band Systems Management........................33 Chapter 4: ComfortView Plus...................... 34 Chapter 5: Dell Optimizer......................35 Chapter 6: Keyboard shortcuts of Precision 5770................ 36 Chapter 7: Getting help and contacting Dell................
-
Page 5: Chapter 1: Views Of Precision 5770
Views of Precision 5770 Right 1. Two Thunderbolt 4 Type-C ports with DisplayPort Alt Mode and Power Delivery 2. SD-card slot 3. Universal audio jack Left 1. Wedge-shaped lock slot 2. Two Thunderbolt 4 Type-C ports with DisplayPort Alt Mode and Power Delivery... -
Page 6: Top
1. Dual digital-array microphones 2. Power button 3. Right speaker 4. Trackpad 5. Left speaker Views of Precision 5770... -
Page 7: Front
Front 1. Proximity sensors 2. IR LED 3. Ambient Light Sensor (ALS) 4. Camera (RGB/IR) 5. Camera status light 6. IR LED 7. Display panel 8. Power LED indicator Views of Precision 5770... -
Page 8: Bottom
Bottom 1. Air vents 2. Service tag label Service Tag The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information. Views of Precision 5770... -
Page 9: Battery Charge And Status Light
Battery charge and status light The following table lists the battery charge and status light behavior of your Precision 5770. Table 1. Battery charge and status light behavior Power Source LED Behavior System Power State Battery Charge Level AC Adapter... -
Page 10: Chapter 2: Specifications Of Precision 5770
Specifications of Precision 5770 Dimensions and weight The following table lists the height, width, depth, and weight of your Precision 5770. Table 2. Dimensions and weight Description Values Height: Front height 8.67 mm (0.34 in.) Rear height 13.15 mm (0.51 in.) Width 374.48 mm (14.74 in.) -
Page 11: Chipset
Chipset The following table lists the details of the chipset supported by your Precision 5770. Table 4. Chipset Description Values Chipset Intel Alder Lake H45 Processor Generation Intel Core i5/i7/i9 DRAM bus width 128 bit Flash EPROM 64 MB PCIe bus Up to Gen 4.0... -
Page 12: External Ports
To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support. Wireless module The following table lists the Wireless Local Area Network (WLAN) module supported on your Precision 5770. Table 8. Wireless module specifications Description Values... -
Page 13: Audio
Table 8. Wireless module specifications (continued) Description Values Bluetooth Bluetooth 5.2 Audio The following table lists the audio specifications of your Precision 5770. Table 9. Audio specifications Description Values Audio controller Realtek ALC711-CG Stereo conversion Supported Internal audio interface SoundWire... -
Page 14: Media-Card Reader
M.2 2280, Class 40 solid-state drive, PCIe NVMe Gen3 x4 Up to 1 TB Opal Self-Encrypting solid-state drive Media-card reader The following table lists the media cards supported by your Precision 5770. Table 11. Media-card reader specifications Description Values Media-card type One SD 4.0 card slot... -
Page 15: Camera
Camera The following table lists the camera specifications of your Precision 5770. Table 13. Camera specifications Description Values Number of cameras Camera type RGB-Ir camera with dual digital-array microphones Camera location Front camera Camera sensor type CMOS RGB-Ir hybrid technology... -
Page 16: Power Adapter
Power adapter The following table lists the power adapter specifications of your Precision 5770. Table 15. Power adapter specifications Description Option one Option two Type 90 W USB Type-C 130 W Type-C Input voltage 100 VAC to 240 VAC 100 VAC to 240 VAC... -
Page 17: Display
CAUTION: Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption. -
Page 18: Fingerprint Reader
Anti-glare vs glossy finish Anti-glare Anti-reflective Touch options Yes, 10 finger touch Fingerprint reader The following table lists the fingerprint-reader specifications of your Precision 5770. NOTE: The fingerprint reader is located on the power button. Table 18. Fingerprint reader specifications Description Values... -
Page 19: Gpu-Integrated
Table 19. Sensor (continued) Sensor support Single Proximity sensor - on upper bezel GPU—Integrated The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Precision 5770. Table 20. GPU—Integrated Controller Memory size Processor Intel UHD Graphics (Single-channel... -
Page 20: Hardware Security
Trusted Platform Module (TPM) 2.0 FIPS 140-2 Certified Chassis Intrusion Detection 1 wedge-shaped lock slot Operating and storage environment This table lists the operating and storage specifications of your Precision 5770. Airborne contaminant level: G1 as defined by ISA-S71.04-1985 Table 24. Computer environment Description... -
Page 21: Chapter 3: Engineering Specifications
Engineering specifications Wireless module Intel AX211, 2x2 MIMO, 2400 Mbps, 2.4/5/6 GHz, Wi-Fi 6E (WiFi 802.11ax), Bluetooth 5.2 The following table lists the Intel AX211 specifications. Table 25. Intel AX211 specifications Host interface CNVi3 (Connectivity Integration 3 generation) Network standard IEEE 802.11a/b/g/n/ac/ax, 160MHz channel use, MU-MIMO, new 6GHz band Wi-Fi Alliance certifications... -
Page 22: Gpu-Integrated
Table 25. Intel AX211 specifications (continued) Antenna diversity Supported Radio On/Off Supported Roaming Support seamless roaming between access points Wake on wireless Supported Wireless display Native Miracast support by Windows Wireless PAN standard ● Dual Mode Bluetooth 5.2 ● BLE Bluetooth data rates Up to 3 Mbps Bluetooth operating frequency bands... -
Page 23: Intel Iris X E Graphics
The following table lists the NVIDIA RTX A2000 specifications. Table 28. NVIDIA RTX A2000 specifications Feature Values QN20-P3-R-A1 Marketing name NVIDIA RTX A2000 8 GB Laptop GPU 60 W Dell PN CR0J5 Base clock 1117 MHz Boost clock 1612 MHz FBVDD Voltage 1.35 V P3/P5/P8 1.20 V... -
Page 24: Nvidia Rtx A3000, 12 Gb, Gddr6
192 bit Size 12 GB Video port and resolution matrix The following table lists the Video port and resolution matrix of your Precision 5770. Table 30. Video port and resolution matrix Port type Thunderbolt 4 USB Type-C ports Maximum resolution—single display 3840 x 2160 @ 60 Hz via WD19S / 7680 x 4320 @ 30 Hz (UP3218K via DP dongle) Maximum resolution—dual MST... -
Page 25: M.2 2230, 256 Gb, Pcie Nvme Gen4 X4, Class 35 Ssd
Table 31. 256 GB SSD specifications (continued) Logical blocks 500,118,192 Power source Power consumption (reference only) ● Idle: 5 mW (PS4) ● Active: 3.50 W Environmental operating conditions (non-condensing) Temperature range 0°C to 70°C Relative humidity range 10% to 90% Op shock 1500G Environmental non-operating conditions (non-condensing) -
Page 26: M.2 2280, 512 Gb, Pcie Nvme Gen4 X4, Class 40 Ssd
M.2 2280, 512 GB, PCIe NVMe Gen4 x4, Class 40 SSD The following table lists the M.2 2280, 512 GB SSD specifications. Table 33. 512 GB SSD specifications Capacity 512 GB Height (approximate) 2.38 mm (0.09 in.) Width (approximate) 22.00 mm (0.87 in.) Depth (approximate) 80.00 mm (3.15 in.) Interface type... -
Page 27: M.2 2280, 2 Tb, Pcie Nvme Gen4 X4, Class 40 Ssd
Table 34. 1 TB SSD specifications (continued) Relative humidity range 10% to 90% Op shock 1500G Environmental non-operating conditions (non-condensing) Temperature range -40°C to 70°C Relative humidity range 5% to 95% M.2 2280, 2 TB, PCIe NVMe Gen4 x4, Class 40 SSD The following table lists the M.2 2280, 2 TB SSD specifications. -
Page 28: 2280, 512 Gb, Pcie Nvme Gen3 X4, Class 40 Ssd, Self-Encrypting Drive
Table 36. 4 TB SSD specifications (continued) MTBF 1.4M hours Logical blocks 8,001,573,552 Power source Power consumption (reference only) ● Idle: 5 mW ( PS4 - L1.2) ● Active: 5 W Environmental operating conditions (non-condensing) Temperature range 0°C to 70°C Relative humidity range 10% to 90% Op shock... -
Page 29: 2280, 1 Tb, Pcie Nvme Gen3 X4, Class 40 Ssd, Self-Encrypting Drive
Environmental non-operating conditions (non-condensing) Temperature range -40°C to 70°C Relative humidity range 5% to 95% Power adapter The following table lists the power adapter specifications of your Precision 5770. Table 39. Power adapter specifications Description Values Type 90 W USB Type-C... -
Page 30: Media-Card Reader
NCTC Anti Lightning Strike certification Media-card reader The following table lists the media-card reader specifications of your Precision 5770. Table 40. Media-card reader (standard offering) Media supported (Maximum capacity supported will vary by Flash Media Types) Media Supported ● Secure Digital (SD) ●... -
Page 31: Accessories
Dell UltraSharp 38 Curved USB-C HUB Monitor - U3821DW Wacom Cintiq Pro 24 Creative Pen Display Touch - DTH-2420 Security Software security The following table lists the software security details of your Precision 5770. Table 42. Software security Security options McAfee Small Business Security 30 Day Free Trial... -
Page 32: Fingerprint Reader
Dell Client Command Suite. In-Band management meaning that the Operating System is functional and the device is connected to a network so that it can be managed. The Dell Client Command Suite of tools can be leveraged individually or with a systems management console like SCCM, LANDESK, KACE, etc. -
Page 33: Out Of Band Systems Management
(driver, firmware or BIOS). The updates are then delivered seamlessly to end-users using the customer's systems management infrastructure that is consuming the catalog (like SCCM). Dell Command | vPro Out of Band console extends hardware management to systems that are offline or have an un- reachable OS (Dell exclusive features). -
Page 34: Chapter 4: Comfortview Plus
ComfortView Plus WARNING: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes. Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes. -
Page 35: Chapter 5: Dell Optimizer
Dell Optimizer This section details the Dell Optimizer specifications of your Precision 5770. On Precision 5770 with Dell Optimizer, the following features are supported: ● Express Connect—Automatically joins the access point with the strongest signal, and directs bandwidth to conferencing applications when in use. -
Page 36: Chapter 6: Keyboard Shortcuts Of Precision 5770
Keyboard shortcuts of Precision 5770 NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. - Page 37 Fn + R System request Fn + Ctrl Open application menu Fn + Esc Toggle Fn-key lock Fn + PgUp Page up Fn + PgDn Page down Fn + Home Home Fn + End Keyboard shortcuts of Precision 5770...
-
Page 38: Chapter 7: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 47. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell app...
