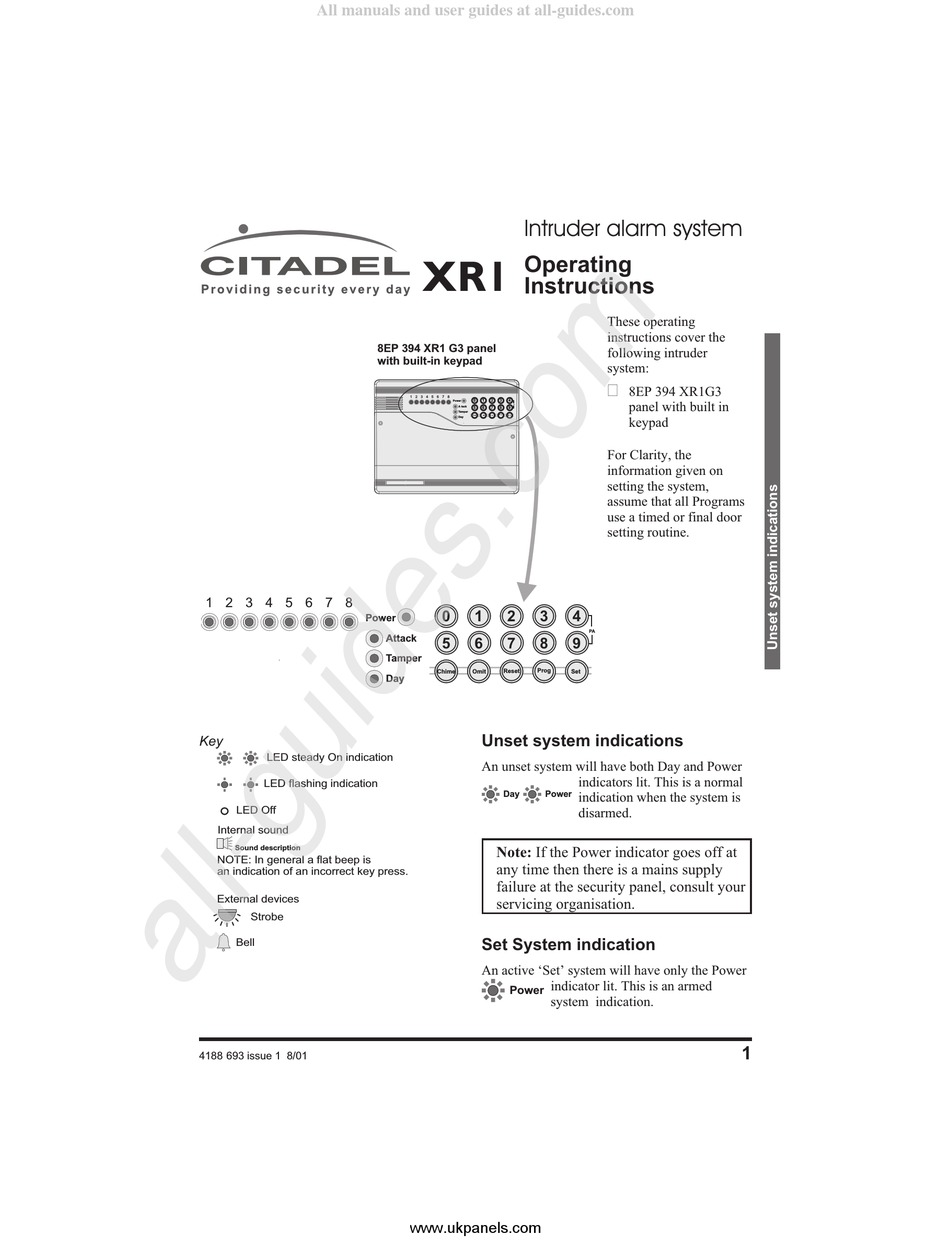

8EP 394 XR1 G3 panel
with built-in keypad
1 2 3 4 5 6 7 8
Power
Key
LED steady On indication
LED flashing indication
LED Off
Internal sound
Sound description
NOTE: In general a flat beep is
an indication of an incorrect key press.
External devices
Strobe
Bell
4188 693 issue 1 8/01
Intruder alarm system
XR1
Operating
Instructions
1 2 3 4 5 6 7 8
0
1
2
3
4
Power
A
A tack
5
6
7
8
9
Tamper
P o
h m
mi
R s t
S t
Day
/! mini
0
1
2
3
Attack
5
6
7
8
Tamper
Prog
Chime
Omit
Reset
Day

Unset system indications

An unset system will have both Day and Power
Day
Power
Note: If the Power indicator goes off at
any time then there is a mains supply
failure at the security panel, consult your
servicing organisation.

Set System indication

An active 'Set' system will have only the Power
indicator lit. This is an armed
Power
system indication.
www.ukpanels.com
These operating
instructions cover the
following intruder
system:
ÿ
8EP 394 XR1G3
panel with built in
keypad
For Clarity, the
information given on
setting the system,
assume that all Programs
use a timed or final door
setting routine.
4
PA
9
Set
indicators lit. This is a normal
indication when the system is
disarmed.
